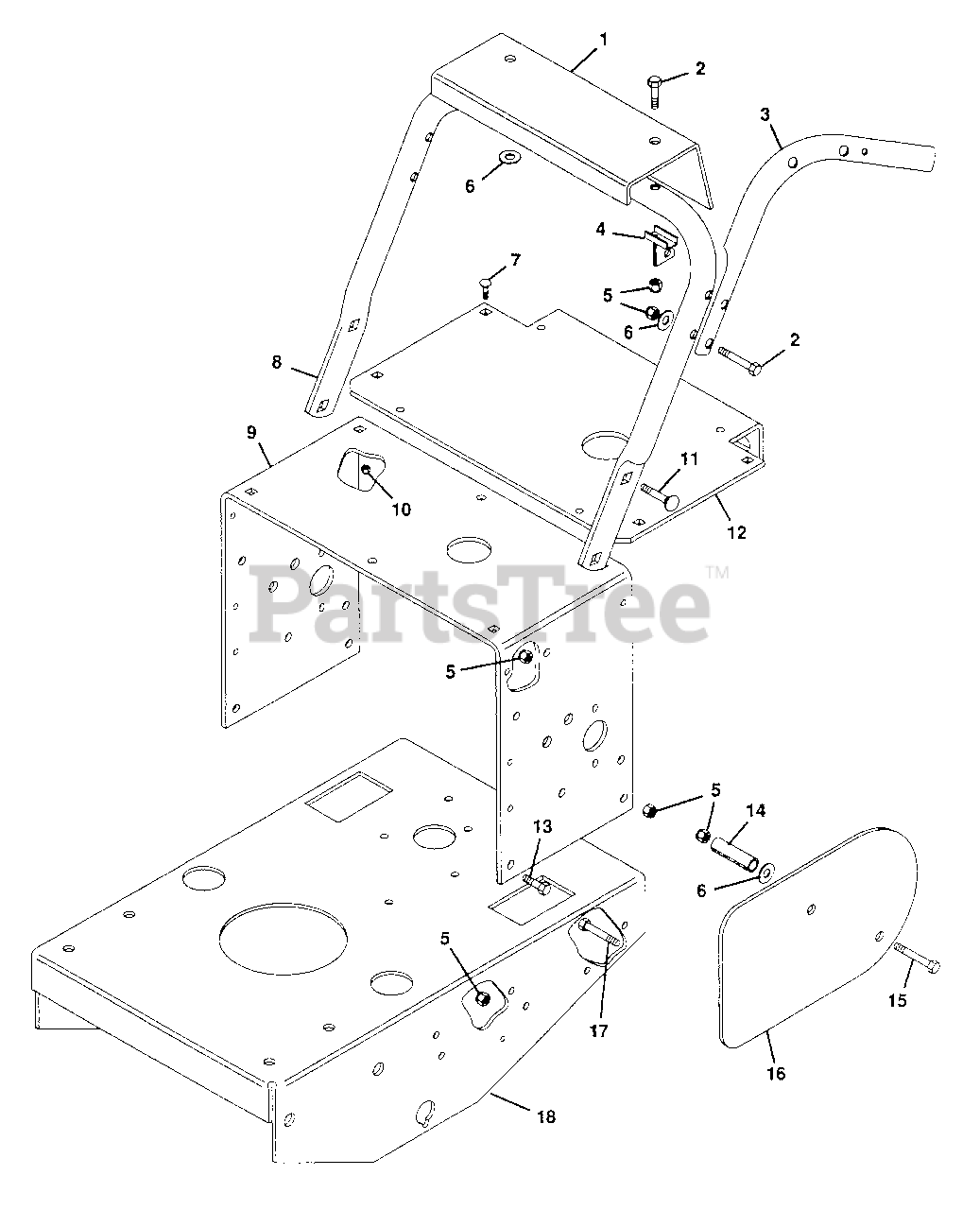

988001 - Gravely Pro 100 Walk-Behind Mower, 12.5hp Briggs & Stratton (SN: 000101 & Above) FRAME Parts Diagram

Pro 100 Walk-Behind Mower, 12.5hp Briggs & Stratton

FRAME Parts Diagram

  • Title

1

Gravely 049275

PANEL, SILK SCREEN
(Superseded to 58801300)

$

$

Not available

2

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 052622

HANDLEBAR, L.H.
(Superseded to 08847551)

$

$

Not available

3

Gravely 052623

HANDLEBAR, R.H.
(Superseded to 08847651)

$

$

Not available

4

Gravely 049272

WELDMENT, PTO LEVER MOUNTING
(Superseded to 08834500)

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 126203

BOLT, 1/4-20X.625 RD HD SQ NK
(Superseded to 06213800)

$

$

Not available

8

Gravely 049007

TUBE, HANDLEBAR MOUNTING
(Superseded to 08869200)

$

$

Not available

9

Gravely 049006

SUPPORT, HANDLEBAR
(Superseded to 08830700)

$

$

Not available

10

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

11

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

12

Gravely 050393

PLATE, SILK SCREEN
(Superseded to 08840700)

$

$

Not available

13

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 049293

BUSH., ST .401X.553X2.25 STL.
(Superseded to 08842000)

$

$

Not available

15

Gravely 189304

BOLT, HEX 3/8-16X3.25
(Superseded to 05901817)

$4.99

$

In Stock, Qty 14

0

16

Gravely 050415

GUARD, SILK SCREENED L.H.
(Superseded to 08835600)

$

$

Not available

16

Gravely 050416

GUARD, SILK SCREENED R.H.
(Superseded to 08835600)

$

$

Not available

17

Gravely 180125

BOLT, HEX 3/8-16X1.375
(Superseded to 05934900)

$

$

Not available

18

Gravely 049005

FRAME, PRO 32
(Superseded to 08830600)

$

$

Not available
