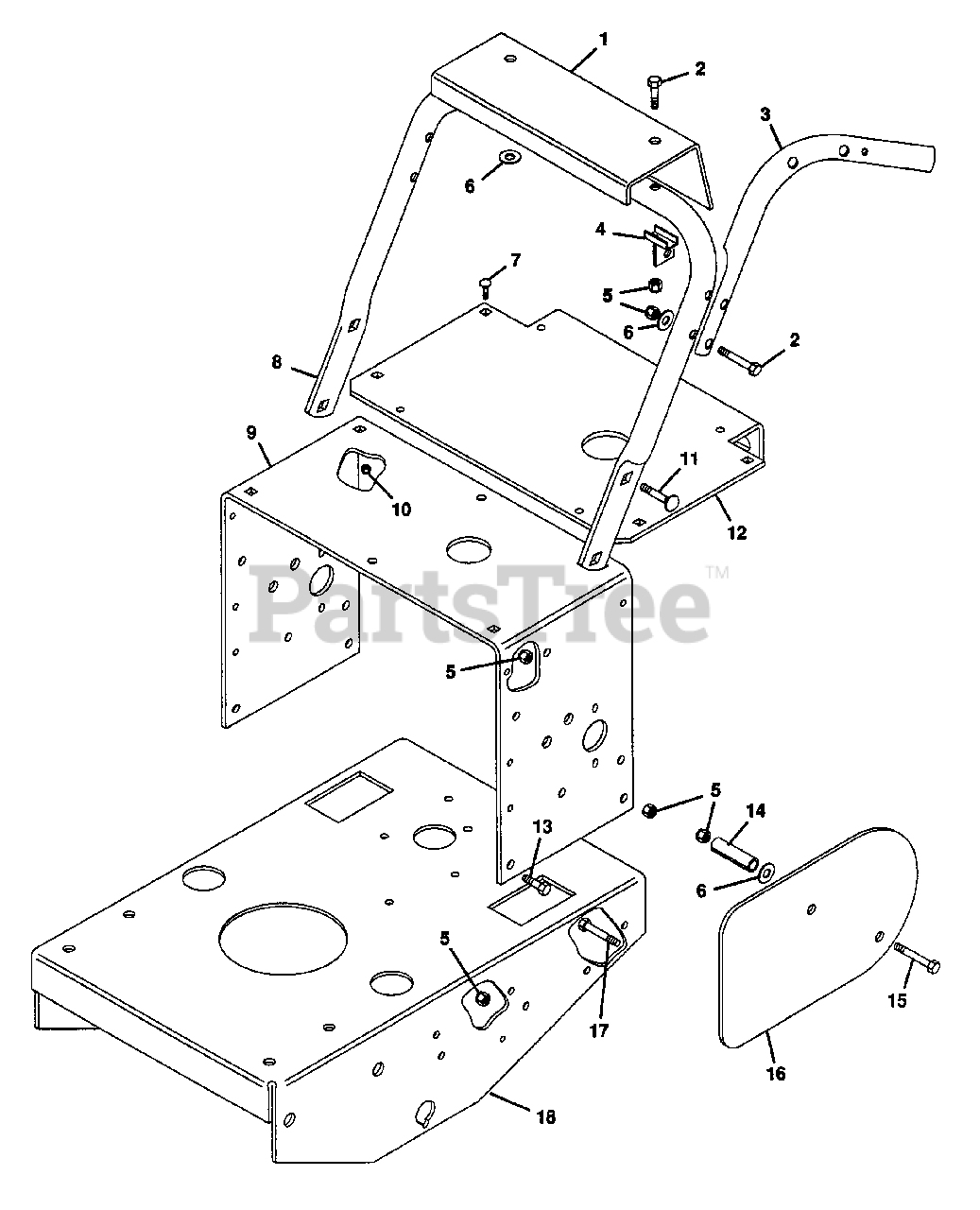

988002 - Gravely Pro 100 Walk-Behind Mower, 12.5hp Kawasaki (SN: 000101 & Above) FRAME Parts Diagram

Pro 100 Walk-Behind Mower, 12.5hp Kawasaki

FRAME Parts Diagram

  • Title

1

Gravely 049275

PRO-150 INST PANEL W/ DECALS
(Superseded to 58801300)

$

$

Not available

2

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 052622

HANDLEBAR, L.H.
(Superseded to 08847551)

$

$

Not available

3

Gravely 052623

HANDLEBER, R.H.
(Superseded to 08847651)

$

$

Not available

4

Gravely 049272

WLDMT,PTO LEVER MTG
(Superseded to 08834500)

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 126203

BLT-RDHDSQSHK .25-20X.62 GR5 Y
(Superseded to 06213800)

$

$

Not available

8

Gravely 049007

TUBE,HANDLEBAR MTG
(Superseded to 08869200)

$

$

Not available

9

Gravely 049006

SPRT,HANDLEBAR
(Superseded to 08830700)

$

$

Not available

10

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

11

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 050393

PLT,SILK SCREEN
(Superseded to 08840700)

$

$

Not available

13

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 049293

BUSH.,S.401X.553X2.25 ST
(Superseded to 08842000)

$

$

Not available

15

Gravely 189304

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 050415

GUARD,BELT
(Superseded to 08835600)

$

$

Not available

16

Gravely 050416

GUARD,BELT
(Superseded to 08835600)

$

$

Not available

17

Gravely 180125

BLT-HEX .38-16X1.38
(Superseded to 05934900)

$

$

Not available

18

Gravely 049005

FRAME,PRO 32
(Superseded to 08830600)

$

$

Not available
