988003 - Gravely Pro 200 Walk-Behind Mower, 12.5hp Kawasaki (SN: 000101 & Above) Fuel And Exhaust System - 12.5 H.P., 14 H.P., 15 H.P., Units (Recoil Start) Parts Diagram

Pro 200 Walk-Behind Mower, 12.5hp Kawasaki

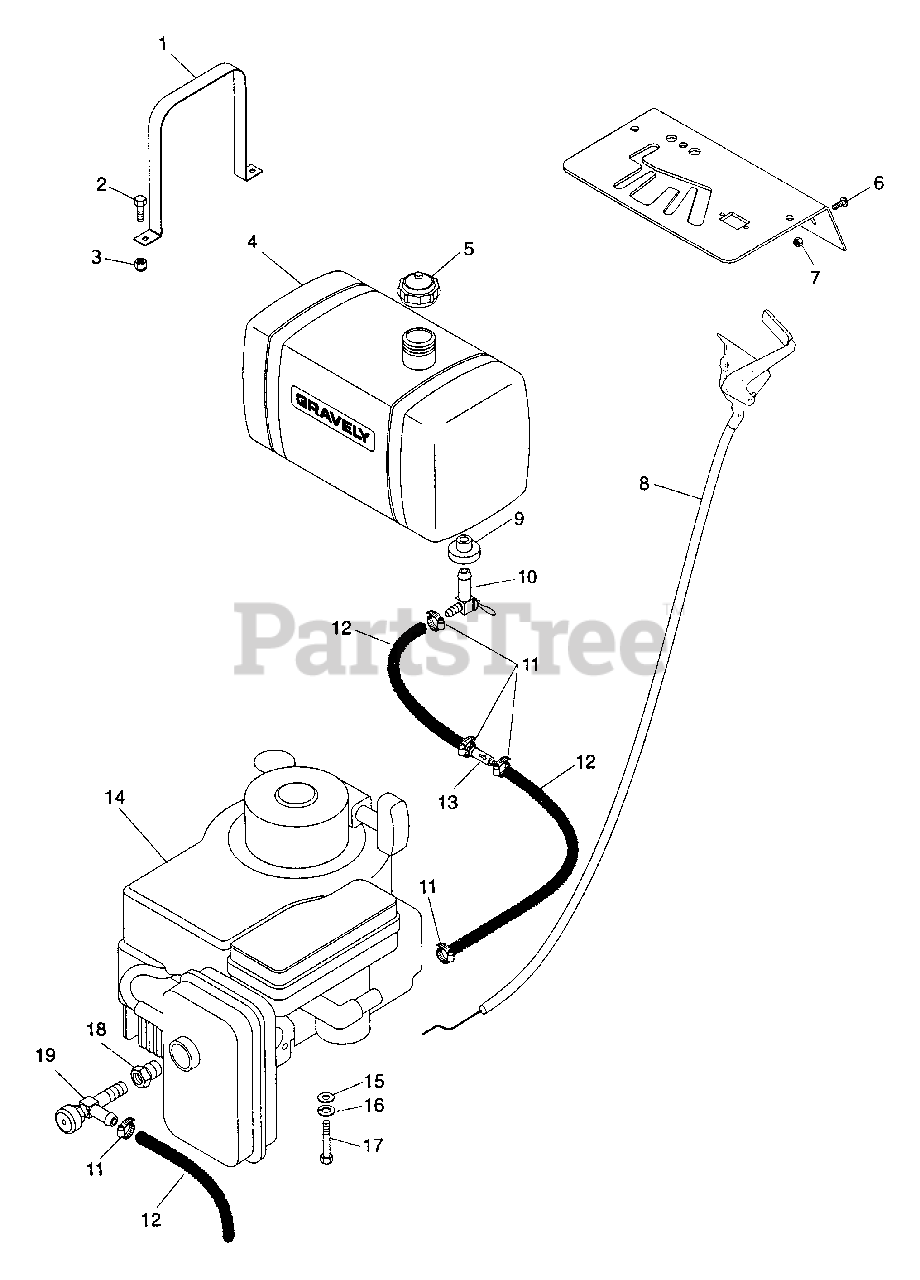

Fuel And Exhaust System - 12.5 H.P., 14 H.P., 15 H.P., Units (Recoil Start) Parts Diagram

  • Title

1

Gravely 08835900

STRP,FUEL TANK

$120.99

$

In Stock, only 1 left!

0

2

Gravely 05932000

BLT-HEX .25-20X.63

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$5.49

$

In Stock, Qty 12

0

4

Gravely 08867900

TANK,FUEL GRAVELY PRO

$

$

Not available

5

Gravely 07533400

CAP, FUEL TANK

$23.99

$

Usually ships in 4-12 days

0

6

Gravely 06113300

SCR-MCH 10-32X.50 PHD

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 06502800

NUT-LK 10-32 NY PL
(Superseded to 06539200)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 08873100

ASSY, THROTTLE CONTROL/CABLE
(Superseded to 06943600)

$54.99

$

Usually ships in 4-12 days

0

9

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

10

Gravely 08835100

VALVE,BALL SHUT-OFF

$

$

Not available

11

Gravely 06924300

HOSE CLAMP

$7.99

$

Usually ships in 4-12 days

0

12

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 08811700

FILTER,FUEL

Note: (Models 003, 062)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 08235000

ENG,KAWASAKI SPEC GS01

Note: (Model 003)

$

$

Not available

Gravely 08236900

ENG,14 HP KOHLER, PS-1411

Note: (Model 004)

$

$

Not available

Gravely 08237500

ENGINE-14 HP KAWASAKI OHV

Note: (Model 062)

$

$

Not available

Gravely 08245400

ENG. 15HP KOHLER COMD PS-41532

Note: (Model 071)

$

$

Not available

15

Gravely 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05941500

BLT-HEX M8 X 1.25X30
(Superseded to 05968200)

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 03493100

ADAPTER, OIL DRAIN

Note: (Models 004, 071)

$6.49

$

Usually ships in 4-12 days

0

Gravely 08757700

ADPT,OIL DRAIN

Note: (Models 003, 062)

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

Gravely 08881200

GUARD,MUFFLER,12.5KAW,EUROPRO

Note: N/S; (Euro Models Only)

$

$

Not available

Gravely 08881300

GUARD,MUFFLER,14KAW, EUROPRO

Note: N/S; (Euro Models Only)

$

$

Not available
