988003 - Gravely Pro 200 Walk-Behind Mower, 12.5hp Kawasaki (SN: 000101 & Above) Steering Control Parts Diagram

Pro 200 Walk-Behind Mower, 12.5hp Kawasaki

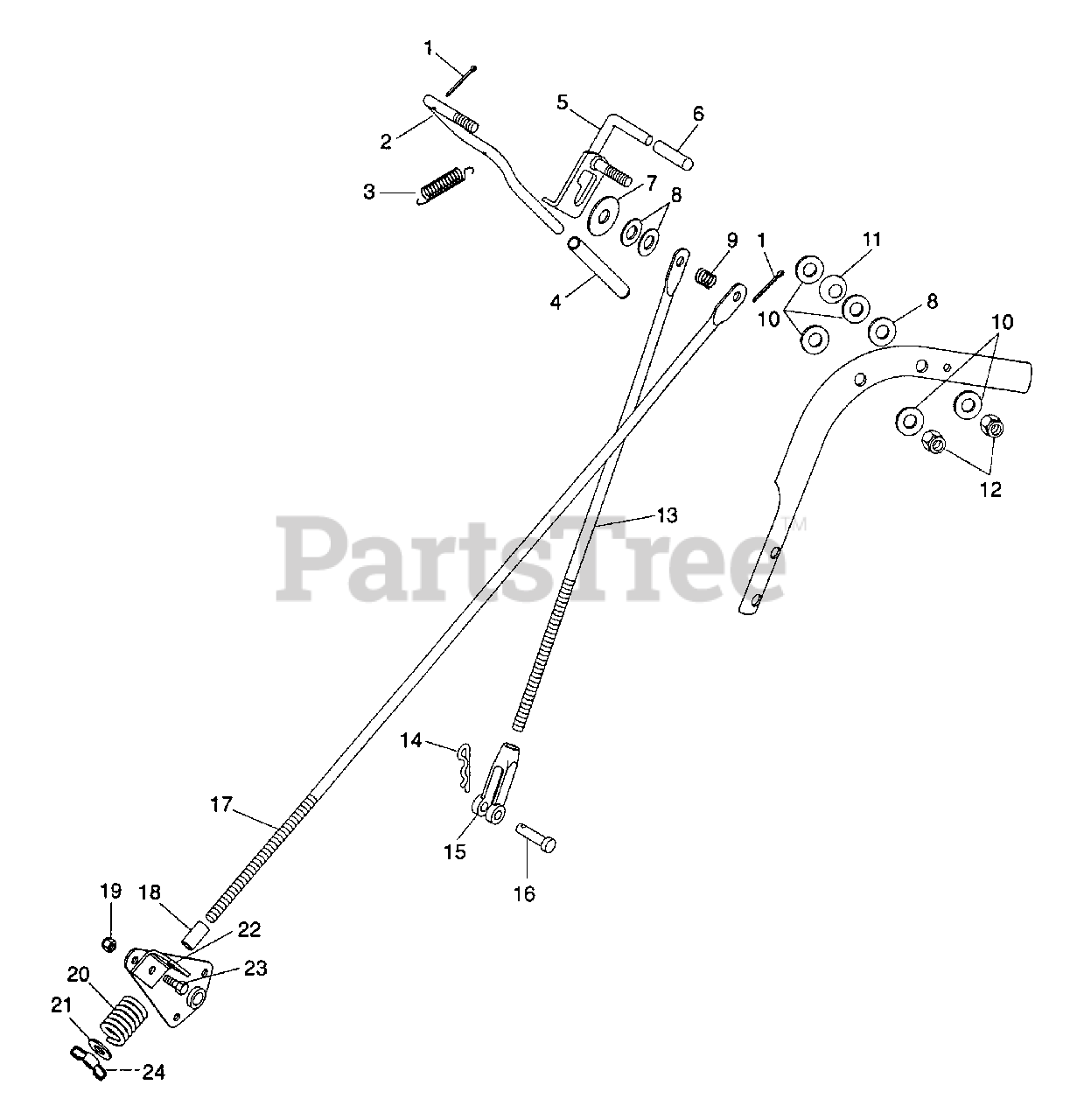

Steering Control Parts Diagram

  • Title

1

Gravely 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

2

Gravely 08847700

LVR,HAND CONTROL
(Superseded to 04905200)

$81.99

$

In Stock, only 1 left!

0

3

Gravely 08339300

SG-TENS .041X.500X1.750

$6.49

$

In Stock, Qty 5

0

4

Gravely 07528300

GRIP,HAND CLUTCH LEVER

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 08820600

WLDMT,CLUTCH-BRAKE LOCK

$

$

Not available

6

Gravely 07503800

TIP - BRAKE LOCK LEVER

$1.99

$

In Stock, only 2 left!

0

7

Gravely 06430900

WSHR-FL-STL .438X1.375X.083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 08338800

SG-COMP .045X.600X.750 WLD7.5

$7.49

$

Usually ships in 4-12 days

0

10

Gravely 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, only 4 left!

0

11

Gravely 06433000

WSHR-SG .375 ID

$

$

Not available

12

Gravely 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 08878600

ROD,CLUTCH ACTUATING

$56.99

$

Usually ships in 4-12 days

0

14

Gravely 06706700

PIN-COTR .05 X 1.157
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07014700

YOKE, .312-24 X 2.25

$15.99

$

Usually ships in 4-12 days

0

16

Gravely 08857900

PIN,CLEVIS 5/16X.812
(Superseded to 06814000)

$

$

Not available

17

Gravely 08878500

ROD,BRAKE

$

$

Not available

18

Gravely 08841300

BUSH .327X.411X2.0 ST

$

$

Not available

19

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$5.49

$

In Stock, Qty 12

0

20

Gravely 08327000

SG-COMP .125X.78X1.00 YWZ

$16.99

$

In Stock, only 3 left!

0

21

Gravely 06429200

WSHR-FL-STL .344X.688X.065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 08837000

BRKT,BRAKE ROD

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$1.49

$

In Stock, only 3 left!

0

24

Gravely 07017600

NUT-WING .31-18 W/INSR
(Superseded to 06537100)

$6.49

$

In Stock, only 1 left!

0
