988007 - Gravely Pro 200 Walk-Behind Mower, 18hp Kohler (SN: 000101 & Above) Fuel And Exhaust System - 16 H.P. And 18 H.P. Units (Electric Start) Parts Diagram

Pro 200 Walk-Behind Mower, 18hp Kohler

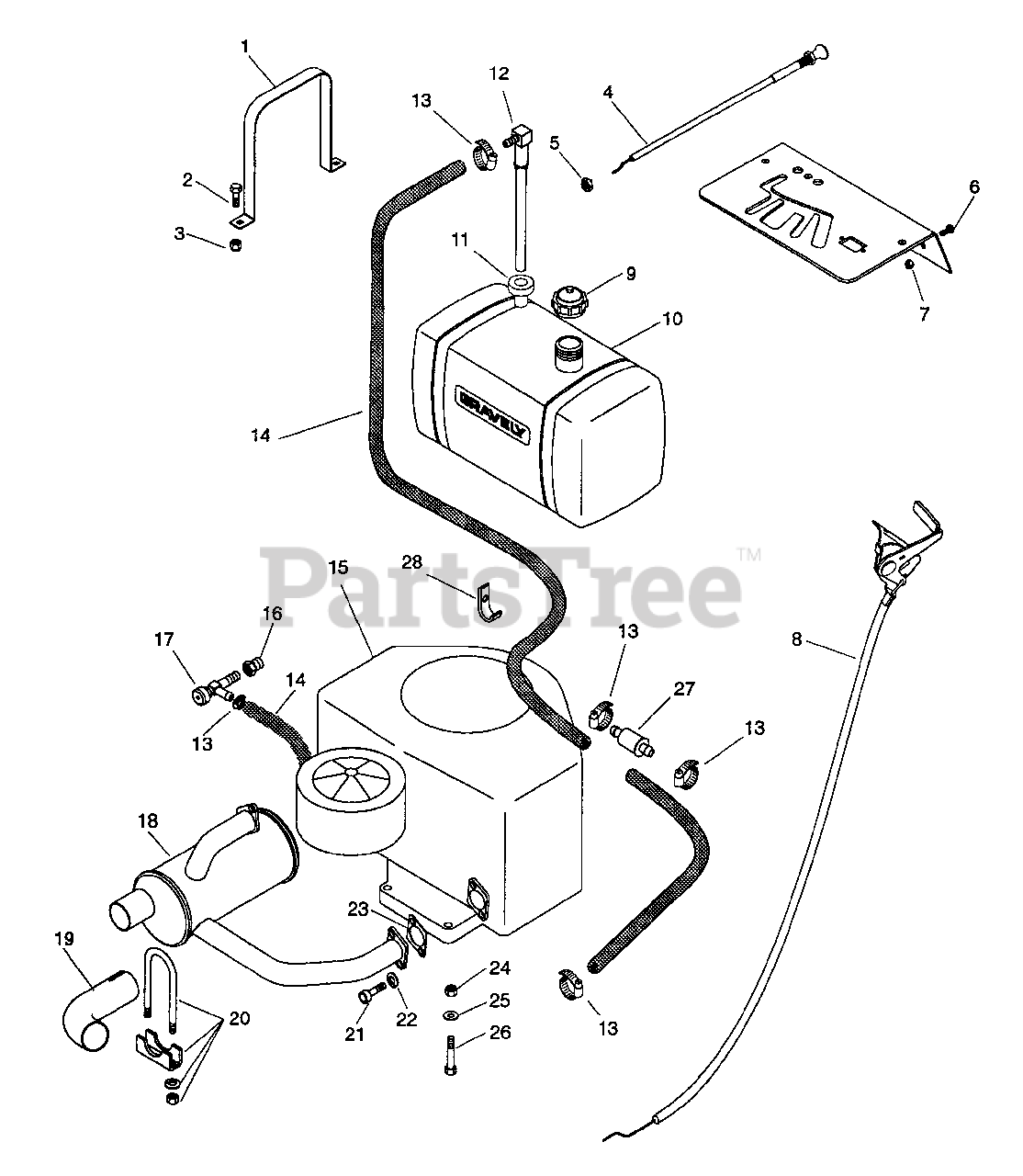

Fuel And Exhaust System - 16 H.P. And 18 H.P. Units (Electric Start) Parts Diagram

  • Title

1

Gravely 08835900

STRP,FUEL TANK

$120.99

$

In Stock, only 1 left!

0

2

Gravely 05932000

BLT-HEX .25-20X.63

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$5.49

$

In Stock, Qty 12

0

4

Gravely 06924800

CONTROL,CHOKE

$

$

Not available

Gravely 06936100

CABLE, CHOKE (42.5")

Note: (Model 072)

$

$

Not available

5

Gravely 06518800

NUT JAM .375-24 PL
(Superseded to 06534700)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06113300

SCR-MCH 10-32X.50 PHD

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 06502800

NUT-LK 10-32 NY PL
(Superseded to 06539200)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 06925700

ASS'Y THR CONTR CBL-PRO/BS OHV
(Superseded to 06941000)

Note: (Model 063)

$67.99

$

Usually ships in 4-12 days

0

Gravely 06925800

THR CNTRL CBL ASSY-PRO/ LG KOH
(Superseded to 06943700)

Note: (Model 07)

$62.99

$

Usually ships in 4-12 days

0

9

Gravely 07533400

CAP, FUEL TANK

$23.99

$

Usually ships in 4-12 days

0

10

Gravely 08893300

FUEL TANK

$

$

Not available

11

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.99

$

In Stock, Qty 20+

0

12

Gravely 08893600

FITTING, TANK

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 06924300

HOSE CLAMP

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 08234600

ENG,18HP MAGNUM, PS-58550

Note: (Model 007)

$

$

Not available

Gravely 08232600

ENGINE 16 HP B&S

Note: (Model 063)

$

$

Not available

Gravely 08242200

ENG,18HP KOHLER CV,OHV,ELEC

Note: (Model 072)

$

$

Not available

16

Gravely 03493100

ADAPTER, OIL DRAIN

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

18

Gravely 08824600

MUFFLER

Note: (Model 007)

$688.99

$

Usually ships in 4-12 days

0

Gravely 09204700

MUFFLER, KOHLER CV18-CV25

Note: (Model 072); N/S

$342.99

$

Usually ships in 4-12 days

0

Gravely 09205200

HEAT SHIELD, KOHLER CV18-25
(Superseded to 08898000)

Note: (Model 072); N/S

$56.99

$

Usually ships in 4-12 days

0

19

Gravely 08826100

DEFLECTOR

Note: (Model 007)

$

$

Not available

20

Gravely 06926400

CLAMP,U 1.75

Note: (Model 07)

$

$

Not available

21

Gravely 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (Model 007)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 08824700

GASKET,EXHAUST

Note: (Model 007)

$23.99

$

In Stock, only 4 left!

0

24

Gravely 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 5

0

25

Gravely 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 05912800

BLT-HEX .31-18X1.75 GR5
(Superseded to 05957400)

$3.49

$

In Stock, Qty 10

0

27

Gravely 08811700

FILTER,FUEL

Note: (Models 007, 063)

$10.99

$

Usually ships in 4-12 days

0

28

Gravely 06909400

J-CLAMP

Note: (Models 007, 063)

$3.99

$

In Stock, only 4 left!

0
