988007 - Gravely Pro 200 Walk-Behind Mower, 18hp Kohler (SN: 000101 & Above) Traction Clutch Linkage Parts Diagram

Pro 200 Walk-Behind Mower, 18hp Kohler

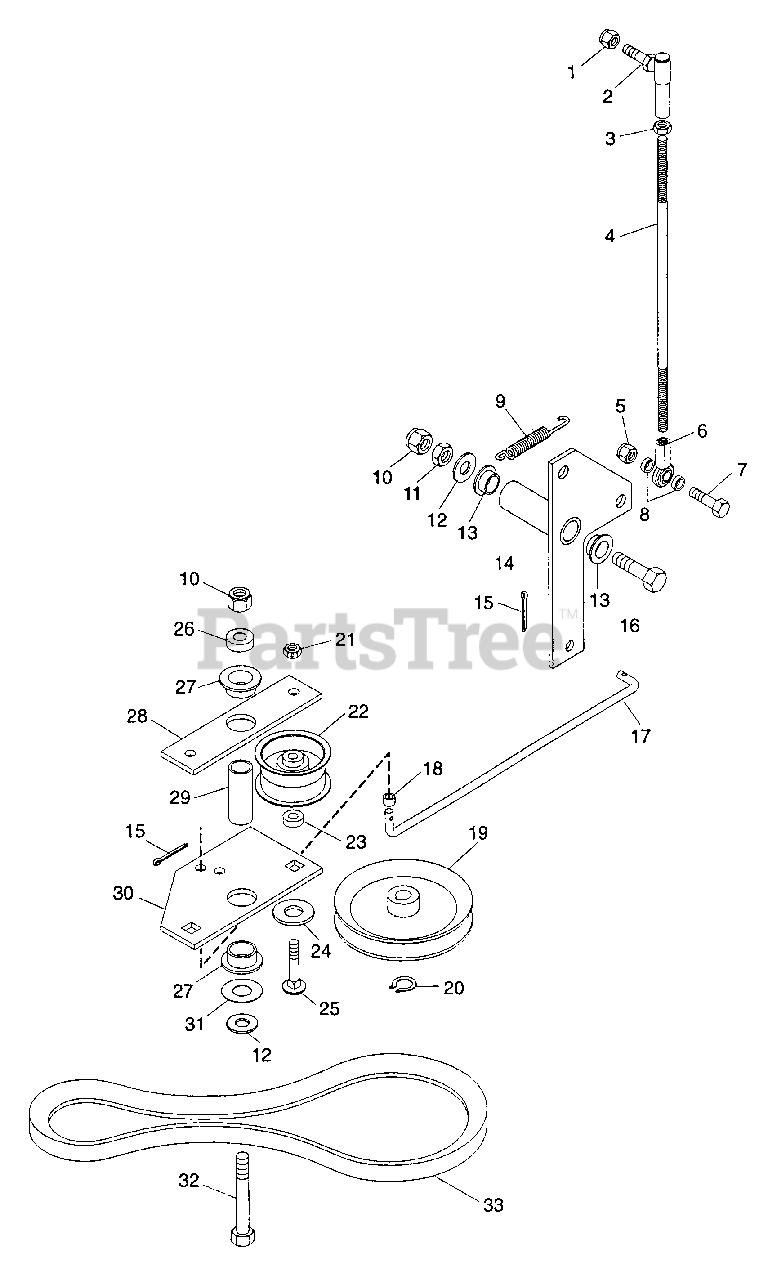

Traction Clutch Linkage Parts Diagram

  • Title

1

Gravely 06524500

NUT-LK-NYL .375-24 W/INSR
(Superseded to 06538800)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 08801200

JT,STEERING BALL
(Superseded to 02917100)

$29.99

$

In Stock, Qty 12

0

3

Gravely 06522900

NUT-HEX .375-24 YWZC
(Superseded to 06500940)

$2.99

$

In Stock, only 2 left!

0

4

Gravely 08877500

ROD,CLUTCH ACTUATING

$

$

Not available

5

Gravely 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 08821700

ROD END, 3/8 LH

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.99

$

In Stock, Qty 17

0

8

Gravely 05526700

BSHG-SLV .383X.50X.165

$

$

Not available

9

Gravely 08353300

SG-TENS .095X.500X5.5 WLD60 YZ

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06502100

NUT .50-13 PL
(Superseded to 06537300)

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.99

$

In Stock, Qty 20+

0

14

Gravely 08833600

WLDMT,CLUTCH ARM

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

16

Gravely 05940400

BLT-HEX .50-13X4.50
(Superseded to 05962300)

$6.99

$

In Stock, Qty 11

0

17

Gravely 08878100

ROD,TRACTON CLUTCH

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 08813800

BUSH.,S.380X.495X.437 ST

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 07319400

SHEAVE,TRANSMISSION

$60.99

$

Usually ships in 4-12 days

0

20

Gravely 05711900

RG-RTNG-EXT .579X.035

$1.49

$

In Stock, Qty 15

0

21

Gravely 06524800

NUT-LK-CTR .375-16 TYP N
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07317200

IDLER-FLAT 2.25X.38

$35.99

$

Usually ships in 4-12 days

0

23

Gravely 03488200

BUSHING .406 X .750 X .188

$6.49

$

In Stock, only 2 left!

0

24

Gravely 06428300

WSHR-FL-STL .531X1.063X.095

$4.99

$

Usually ships in 4-12 days

0

25

Gravely 06217800

BLT-RDHDSQNK .38-16X1.75
(Superseded to 06200417)

$4.99

$

In Stock, Qty 11

0

26

Gravely 08841700

BUSH.,S.790X1.00X.320 ST

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 15

0

28

Gravely 08821300

PLT,IDLER

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 08815100

BUSH.,S.560X.745X2.04 ST

$22.99

$

Usually ships in 4-12 days

0

30

Gravely 08821200

PLT,IDLER
(Superseded to 04905951)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 05419800

BRG-N-THRST .752X1.24X.093
(Superseded to 06413300)

$6.49

$

Usually ships in 4-12 days

0

32

Gravely 05936100

BLT-HEX .50-13X3.00
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

33

Gravely 07223800

V-BELT, HA-RAW EDGE

$28.99

$

In Stock, only 2 left!

0
