988009 - Gravely Pro 300 Walk-Behind Mower, 17hp Kawasaki (SN: 000101 & Above) Frame Parts Diagram

Pro 300 Walk-Behind Mower, 17hp Kawasaki

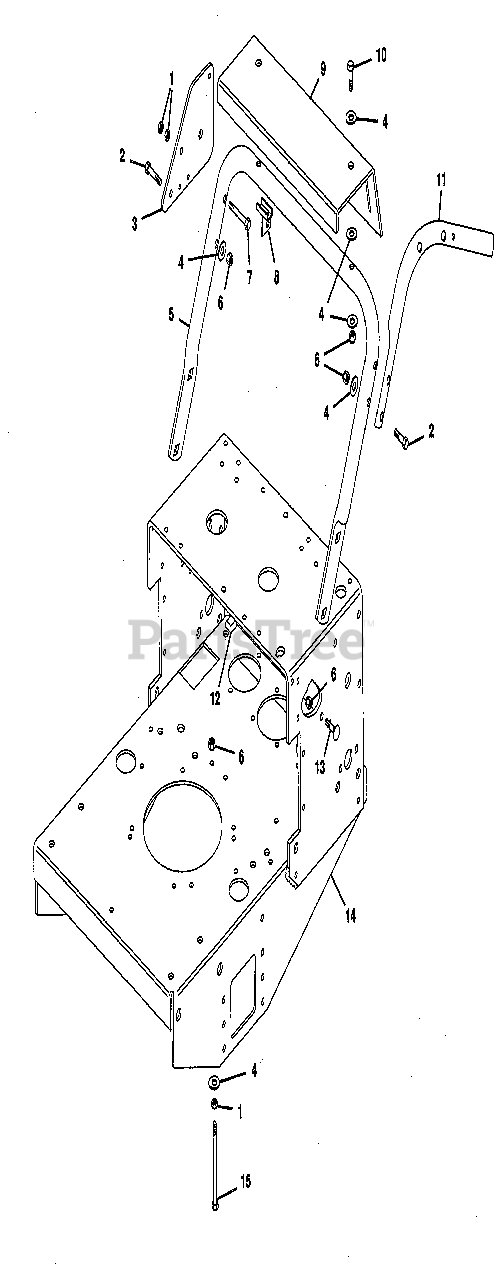

Frame Parts Diagram

  • Title

1

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

3

Gravely 08843600

PLT,SPEED CTL LEVER

$

$

Not available

4

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 08868500

TUBE, HANDLEBAR MOUNTING

$

$

Not available

6

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 08844100

WLDMT,PTO LEVER MTG

$

$

Not available

9

Gravely 58801500

PRO-300 INST PANEL W/ DECALS

$

$

Not available

10

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 08847551

HANDLEBAR, L.H.

$

$

Not available

11

Gravely 08847651

HANDLEBER, R.H.

$

$

Not available

12

Gravely 07525100

STOP

$2.49

$

In Stock, only 3 left!

0

13

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 04900700

WELDMENT, FRAME

$284.99

$

Usually ships in 4-12 days

0

15

Gravely 06224400

BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 20+

0
