988009 - Gravely Pro 300 Walk-Behind Mower, 17hp Kawasaki (SN: 000101 & Above)

Pro 300 Walk-Behind Mower, 17hp Kawasaki

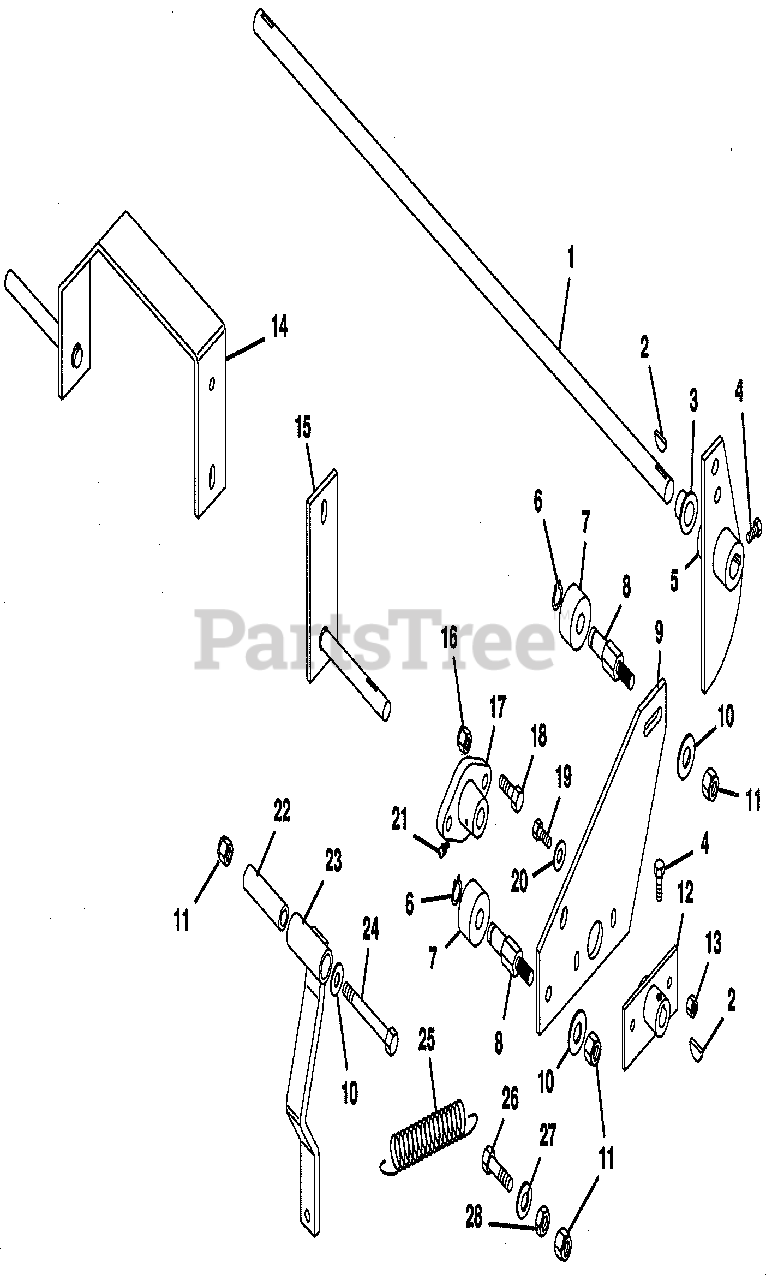

988009 - Gravely Pro 300 Walk-Behind Mower, 17hp Kawasaki (SN: 000101 & Above) > Parts Diagrams (11) > Wheel Drive

  • Title
08843900

1

SHAFT, SPEED CONTROL CAM

Part# 08843900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.36

06608600

2

KEY, WOODRUFF .125 X .75

Part# 06608600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

05517400

3

BUSH., FLG. .630 X 4.00 X .625 NY

Part# 05517400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05947900

4

BOLT, HEX 1/4-20 X .50

Part# 05947900

OEM Warranty Repair Part for Gravely

Not available

08842900

5

WELDMENT, CONTROL CAM

Part# 08842900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.77

05715600

6

RING, RETAINING .500 SHAFT

Part# 05715600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

08834000

7

ROLLER, NYLON

Part# 08834000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

08843300

8

PIN, ROLLER

Part# 08843300

OEM Warranty Repair Part for Gravely

Not available

08847100

9

ARM, SPEED CONTROL

Part# 08847100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $19.23

06436200

10

WASHER, FLAT .406 X .812 X .065

Part# 06436200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06535800

11

NUT, LOCK 3/8-16

Part# 06535800 (Superseded to 06500831)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

01525500

12

WELDMENT, NEUTRAL ADJ.

Part# 01525500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

06531000

13

NUT, LOCK 1/4-20

Part# 06531000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

08848400

14

WELDMENT, PUMP CONTROL R.H.

Part# 08848400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

08848500

15

WELDMENT, PUMP CONTROL L.H.

Part# 08848500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

06530200

16

NUT, LOCK 5/16-18

Part# 06530200

OEM Warranty Repair Part for Gravely

Not available

01522000

17

BUSHING, FLANGED SUPPORT

Part# 01522000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

05946900

18

BOLT, HEX 5/16-18 X 1.00

Part# 05946900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

05946800

19

BOLT, HEX 1/4-20 X .750

Part# 05946800

OEM Warranty Repair Part for Gravely

Not available

06437300

20

WASHER, FLAT .281 X .625 X .065

Part# 06437300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

07012600

21

FITTING, LUBE 1/4-28

Part# 07012600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

08831500

22

BUSH., ST. .385 X .610 X 1.80 STL.

Part# 08831500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

04906451

23

WELDMENT, DETENT STRAP

Part# 04906451

OEM Warranty Repair Part for Gravely

Not available

05961400

24

BOLT, HEX 3/8-16 X 2.75

Part# 05961400 (Superseded to 05901611)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

08345500

25

SPRING, EXT. LE-063F-5

Part# 08345500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

05957900

26

BOLT, HEX 3/8-16 X 1.50

Part# 05957900

OEM Warranty Repair Part for Gravely

Not available

06308800

27

WASHER, LOCK 3/8 REG.

Part# 06308800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529400

28

NUT, HEX 3/8-16

Part# 06529400 (Superseded to 06500917)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40
