988012 - Gravely Pro Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) TRACTION CLUTCH LINKAGE Parts Diagram

Pro Walk-Behind Mower Power Unit, 18hp Kohler

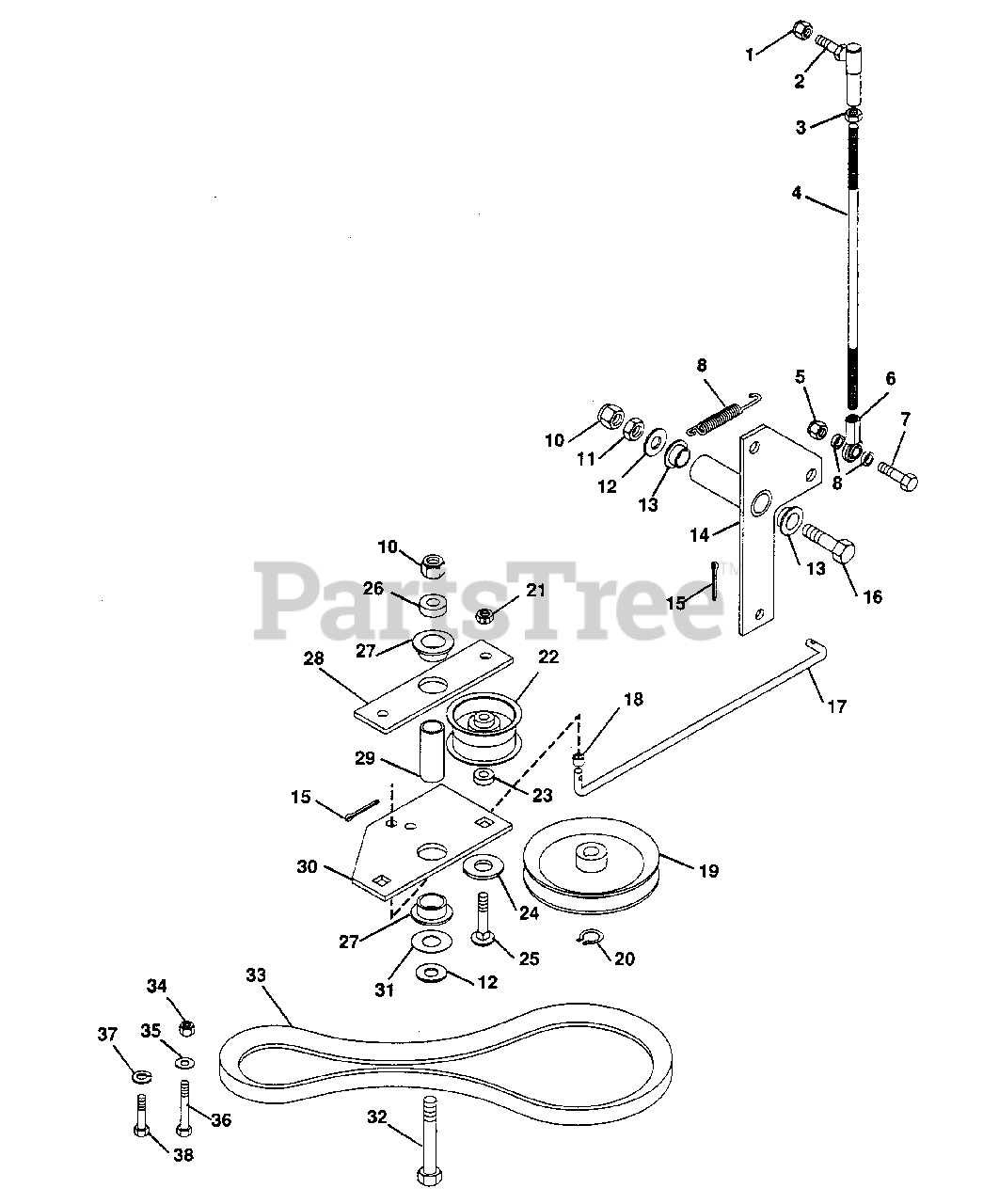

TRACTION CLUTCH LINKAGE Parts Diagram

  • Title

1

Gravely 192481

NUT, LOCK 3/8-24
(Superseded to 06538800)

$1.99

$

In Stock, only 4 left!

0

2

Gravely 021084

BALL JOINT, STEERING
(Superseded to 02917100)

$23.99

$

In Stock, Qty 19

0

3

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 1 left!

0

4

Gravely 043248

ROD, CLUTCH ACTUATING
(Superseded to 08877500)

$

$

Not available

5

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

6

Gravely 043249

ROD END, SPHERICAL BEARING
(Superseded to 08821700)

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

8

Gravely 042989

BUSHING, ST. .391X.500X.17 STL.
(Superseded to 05526700)

$

$

Not available

9

Gravely 011263

SPRING, EXTENSION
(Superseded to 08353300)

$14.99

$

In Stock, only 1 left!

0

10

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 120378

NUT, HEX 1/2-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 16

0

13

Gravely 034738

BUSHING, FLANGE NYLON
(Superseded to 05521100)

$2.49

$

In Stock, Qty 9

0

14

Gravely 049094

WELDMENT, CLUTCH ARM
(Superseded to 08833600)

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

16

Gravely 433156

BOLT, HEX 1/2-13X4.50
(Superseded to 05901932)

$5.99

$

In Stock, Qty 12

0

17

Gravely 049269

ROD, TRACTION CLUTCH
(Superseded to 08878100)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 010155

BUSHING, .375X.500X.437
(Superseded to 08813800)

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 034331

SHEAVE, TRANSMISSION
(Superseded to 07319400)

$59.99

$

Usually ships in 4-12 days

0

20

Gravely 015338

RING, RETAINING
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 027829

SHEAVE, IDLER
(Superseded to 07317200)

$34.99

$

In Stock, only 2 left!

0

23

Gravely 014672

SPACER, IDLER .406X.750X.188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 12

0

24

Gravely 103343

WASHER, FLAT .531X1.063X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 126416

BOLT, 3/8-16X1.75 RD HD SQ NK
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 041324

SPACER
(Superseded to 08841700)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 010174

BUSHING, FLANGE NYLON
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

28

Gravely 043199

PLATE, IDLER
(Superseded to 08821300)

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 041992

BUSHING, ST. .560X.745X2.04 STL.
(Superseded to 08815100)

$21.99

$

Usually ships in 4-12 days

0

30

Gravely 043198

PLATE, IDLER
(Superseded to 04905951)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 014998

RACE, BEARING THRUST
(Superseded to 06413300)

$5.99

$

In Stock, only 2 left!

0

32

Gravely 180190

BOLT, HEX 1/2-13X3.00
(Superseded to 05901737)

$4.99

$

In Stock, Qty 10

0

33

Gravely 043195

BELT, ENGINE-TRANSMISSION DRIVE
(Superseded to 07223800)

$26.99

$

In Stock, only 2 left!

0

34

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

35

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

36

Gravely 180085

BOLT, HEX 5/16-18X1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

37

UNKNOWN

UNKNOWN

$

$

Not available

38

UNKNOWN

UNKNOWN

$

$

Not available
