988017 - Gravely Pro Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro Walk-Behind Mower Power Unit, 12.5hp Kawasaki

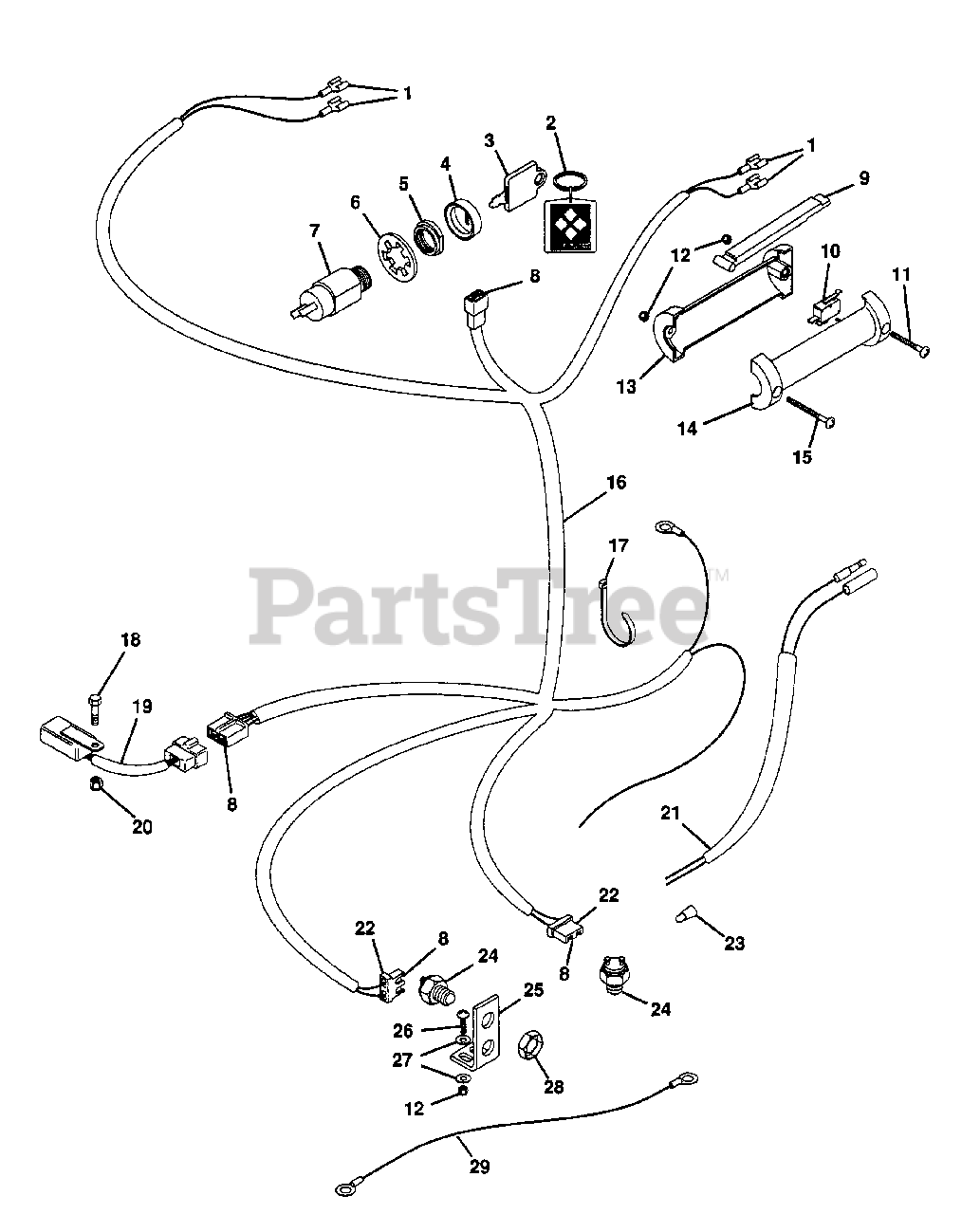

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 046988

TERMINAL,FEMALE
(Superseded to 08828400)

$

$

Not available

2

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

3

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

4

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

5

Gravely 045497

NUT-PANEL .625-32 GRECO
(Superseded to 06517300)

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 018586

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 030202

SWITCH ASSEMBLY
(Superseded to 52406900)

$39.99

$

In Stock, only 2 left!

0

8

Gravely 038059

TERMINAL
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

9

Gravely 046822

LEVER
(Superseded to 08602200)

$46.99

$

Usually ships in 4-12 days

0

10

Gravely 046823

SWITCH
(Superseded to 08828300)

$

$

Not available

11

Gravely 159929

SCR-MCH 10-24X.62 P/HD
(Superseded to 06111100)

$1.49

$

In Stock, Qty 10

0

12

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 046821

KIT, OPER.PRES.HNDL/INSRT,UNIV
(Superseded to 78802700)

$118.99

$

Usually ships in 4-12 days

0

14

Gravely 046820

KIT, OPER.PRES.HNDL/INSRT,UNIV
(Superseded to 78802700)

$118.99

$

Usually ships in 4-12 days

0

15

Gravely 159967

SCR-MCH 10-24X1.50 PH YWZC
(Superseded to 06118300)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 047380

HRNS,WIRING PRO RECOIL
(Superseded to 08851600)

$

$

Not available

17

Gravely 010629

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

19

Gravely 041882

KIT,INTERLOCK MODULE, RECOIL
(Superseded to 58800900)

$258.99

$

Usually ships in 4-12 days

0

20

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

21

Gravely 042477

WIRE,ENGINE KILL
(Superseded to 08818100)

$

$

Not available

22

Gravely 042176

CONN,2-WIRE SWITCH
(Superseded to 08550000)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 034640

SWITCH, NEUTRAL START N.C.
(Superseded to 08803700)

$35.99

$

Usually ships in 4-12 days

0

25

Gravely 034637

BRKT,INTERLOCK SWITCH
(Superseded to 08803600)

$

$

Not available

26

Gravely 159947

SCR-MCH 10-24X.75 PHD
(Superseded to 06111200)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 131015

WSHR-FL-STL .188X.438X.049 PL
(Superseded to 06409200)

$

$

Not available

28

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 042529

WIRE,GROUND
(Superseded to 08818400)

$

$

Not available
