988017 - Gravely Pro Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 000101 & Above) TRACTION CLUTCH LINKAGE Parts Diagram

Pro Walk-Behind Mower Power Unit, 12.5hp Kawasaki

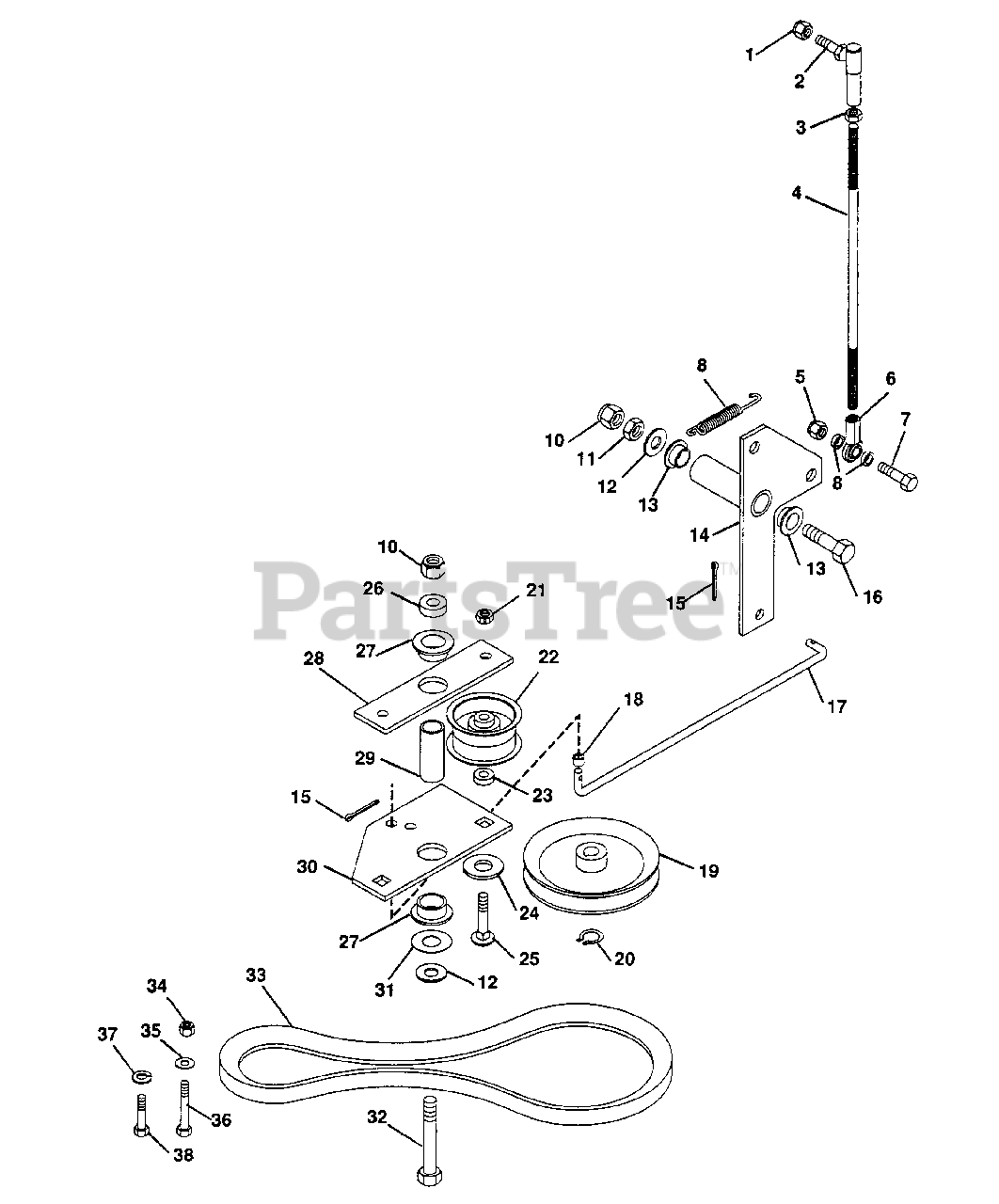

TRACTION CLUTCH LINKAGE Parts Diagram

  • Title

1

Gravely 192481

NUT-LK-NYL .375-24 W/INSR YWZC
(Superseded to 06538800)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 021084

BALL JOINT
(Superseded to 02917100)

$29.99

$

In Stock, Qty 12

0

3

Gravely 120369

NUT-HEX .375-24 YWZC
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

4

Gravely 043248

ROD,CLUTCH ACTUATING
(Superseded to 08877500)

$

$

Not available

5

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 043249

ROD END, 3/8 LH
(Superseded to 08821700)

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

8

Gravely 042989

BSHG-SLV .383X.50X.165
(Superseded to 05526700)

$

$

Not available

9

Gravely 011263

SG-TENS .095X.500X5.5 WLD60 YZ
(Superseded to 08353300)

$15.99

$

In Stock, only 2 left!

0

10

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 120378

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

13

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

14

Gravely 049094

WLDMT,CLUTCH ARM
(Superseded to 08833600)

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

16

Gravely 433156

BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$6.99

$

In Stock, Qty 11

0

17

Gravely 049269

ROD,TRACTON CLUTCH
(Superseded to 08878100)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 010155

BUSH.,S.380X.495X.437 ST
(Superseded to 08813800)

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 034331

SHEAVE,TRANSMISSION
(Superseded to 07319400)

$60.99

$

Usually ships in 4-12 days

0

20

Gravely 015338

RG-RTNG-EXT .579X.035
(Superseded to 05711900)

$1.49

$

In Stock, Qty 15

0

21

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 027829

IDLER-FLAT 2.25X.38
(Superseded to 07317200)

$35.99

$

Usually ships in 4-12 days

0

23

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

24

Gravely 103343

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 126416

BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, Qty 11

0

26

Gravely 041324

BUSH.,S.790X1.00X.320 ST
(Superseded to 08841700)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

28

Gravely 043199

PLT,IDLER
(Superseded to 08821300)

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 041992

BUSH.,S.560X.745X2.04 ST
(Superseded to 08815100)

$22.99

$

Usually ships in 4-12 days

0

30

Gravely 043198

PLATE, IDLER
(Superseded to 04905951)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 014998

WSHR-HDND-THRST .760X1.25X.094
(Superseded to 06413300)

$6.49

$

Usually ships in 4-12 days

0

32

Gravely 180190

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

33

Gravely 043195

V-BELT, HA-RAW EDGE
(Superseded to 07223800)

$28.99

$

In Stock, only 2 left!

0

34

UNKNOWN

$

$

Not available

35

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

36

UNKNOWN

$

$

Not available

37

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 021914

BLT-HEX M8 X 1.25X30 GR5 YWZC
(Superseded to 05968200)

$4.99

$

Usually ships in 4-12 days

0
