988017 - Gravely Pro Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 000101 & Above) WHEEL DRIVE Parts Diagram

Pro Walk-Behind Mower Power Unit, 12.5hp Kawasaki

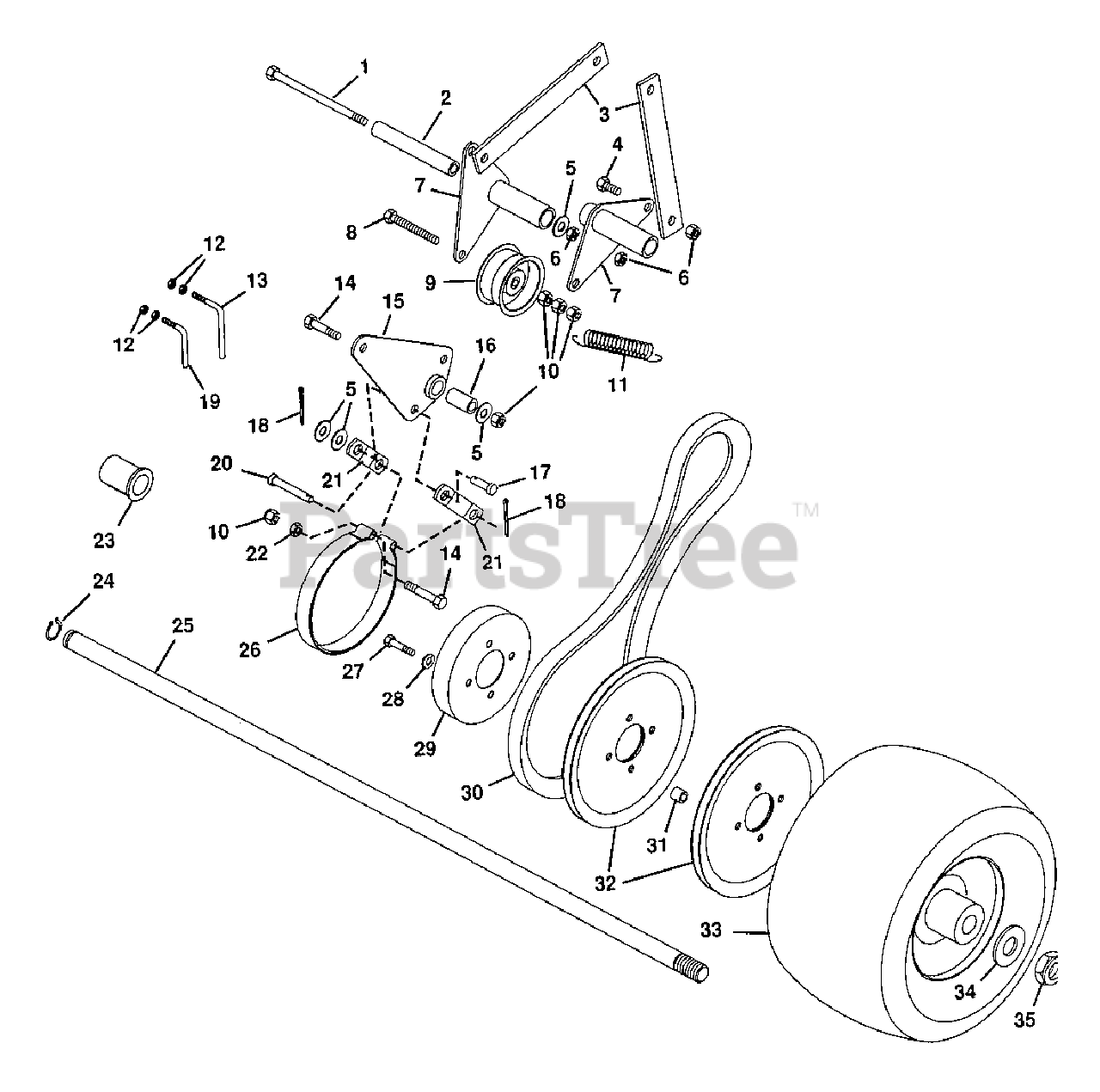

WHEEL DRIVE Parts Diagram

  • Title

1

Gravely 189306

BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05957700)

$2.99

$

Usually ships in 4-12 days

0

2

Gravely 049665

BUSH.,S.385X.610X3.85 ST
(Superseded to 08836700)

$

$

Not available

3

Gravely 049668

STRAP,WHEEL CLUTCH
(Superseded to 08836800)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 180120

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

5

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 049266

WLDMT,WHL CLUTCH ARM
(Superseded to 08834100)

$

$

Not available

8

Gravely 013620

BLT,HEX 3/8-16X3 ALL THD
(Superseded to 20125500)

$

$

Not available

9

Gravely 048870

IDLER 2.75X1.25
(Superseded to 07318400)

$23.99

$

In Stock, only 3 left!

0

10

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 047314

SG-TENS .093X.75X4.0 WLD40
(Superseded to 08343000)

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

13

Gravely 050294

ROD,PULLEY CLEANING
(Superseded to 20977000)

$

$

Not available

14

Gravely 180128

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 049036

WLDMT,BRAKE ARM
(Superseded to 08832500)

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 049027

BUSH.,S.391X.622X.950 ST
(Superseded to 08833400)

$6.49

$

In Stock, Qty 5

0

17

Gravely 018417

PIN-CLEV .38X.75 YWZC
(Superseded to 06814800)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 177923

PIN-CTR .12X.75 EXTPRSQCT YWZ
(Superseded to 06707300)

$0.99

$

In Stock, Qty 6

0

19

Gravely 041355

ROD,PULLEY CLEANING
(Superseded to 08876300)

$

$

Not available

20

Gravely 011718

PIN-CLEV .38X1.25 YWZC
(Superseded to 06814900)

$4.99

$

In Stock, only 2 left!

0

21

Gravely 049026

LINK,BRAKE ARM
(Superseded to 08831951)

$15.99

$

Usually ships in 4-12 days

0

22

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 049969

BSHG-FLG 1.010X1.38X1.4X1.65
(Superseded to 05517900)

$6.49

$

In Stock, Qty 9

0

24

Gravely 017980

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 9

0

25

Gravely 049034

SHFT,AXLE
(Superseded to 08832300)

$

$

Not available

26

Gravely 049017

ASM, BRAKE BAND, PRO
(Superseded to 08880600)

$59.99

$

In Stock, Qty 7

0

27

Gravely 180083

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

28

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 049015

DRUM,BRAKE
(Superseded to 08863900)

$46.99

$

In Stock, only 1 left!

0

30

Gravely 049029

V-BELT, HA-COGGED (SET)
(Superseded to 07222400)

Note: (Set of 2)

$83.99

$

In Stock, only 4 left!

0

31

Gravely 048868

BUSH.,S.385X.625X.475 ST
(Superseded to 08809500)

$

$

Not available

32

Gravely 049033

PLY-V 9.00X3.75
(Superseded to 07319700)

$58.99

$

Usually ships in 4-12 days

0

33

Gravely 048999

ASSY, WHEEL AND TIRE 6X4.5
(Superseded to 07100239)

$162.99

$

In Stock, only 2 left!

0

34

Gravely 423315

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 022502

NUT-LK-JAM-NYL .75-10 YWZC
(Superseded to 06537900)

$17.99

$

Usually ships in 4-12 days

0
