988018 - Gravely Pro Walk-Behind Mower Power Unit, 12.5hp Briggs & Stratton (SN: 000101 & Above) STEERING CONTROL & WHEEL DRIVE Parts Diagram

Pro Walk-Behind Mower Power Unit, 12.5hp Briggs & Stratton

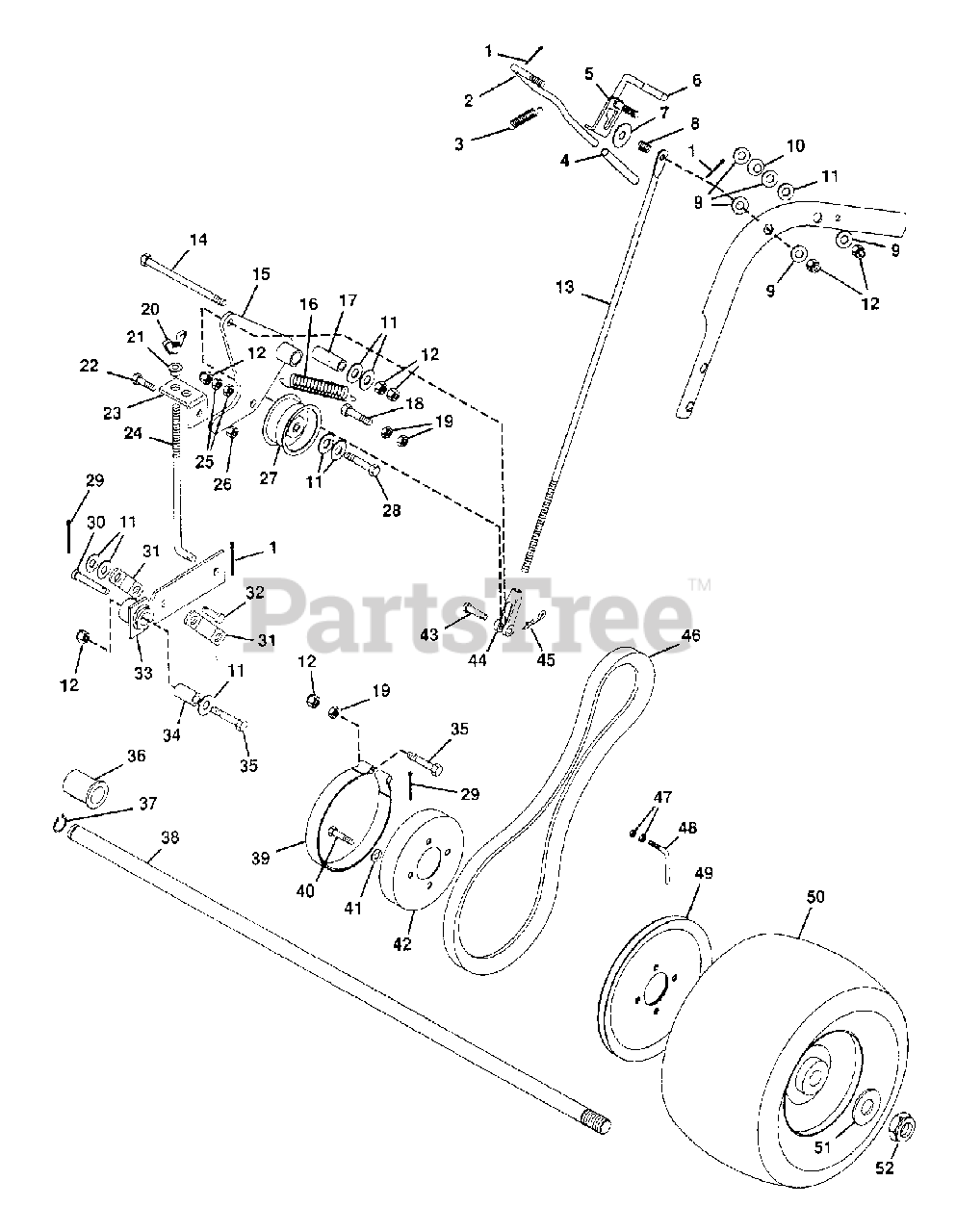

STEERING CONTROL & WHEEL DRIVE Parts Diagram

  • Title

1

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

2

Gravely 047345

LEVER, HAND CLUTCH
(Superseded to 08829700)

$219.99

$

Usually ships in 4-12 days

0

3

Gravely 043446

SPRING, EXTENSION
(Superseded to 08339300)

$5.99

$

In Stock, only 2 left!

0

4

Gravely 043197

GRIP, HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 042990

WELDMENT, CLUTCH BRAKE
(Superseded to 08820600)

$75.99

$

Usually ships in 4-12 days

0

6

Gravely 043192

TIP, BRAKE LOCK LEVER
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 446477

WASHER, FLAT .438X1.375X.083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

8

Gravely 043193

SPRING, COMPRESSION
(Superseded to 08338800)

$6.99

$

In Stock, only 4 left!

0

9

Gravely 020775

WASHER, NYLON .375X.75X.06
(Superseded to 06433600)

$0.99

$

In Stock, Qty 14

0

10

Gravely 041623

WASHER, SPRING .375 I.D.
(Superseded to 06433000)

$

$

Not available

11

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

13

Gravely 049280

ROD, CLUTCH ACTUATING
(Superseded to 08878200)

$103.99

$

Usually ships in 4-12 days

0

14

Gravely 189304

BOLT, HEX 3/8-16X3.25
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

15

Gravely 049019

WELDMENT, WHEEL CLUTCH ARM
(Superseded to 08831200)

$

$

Not available

17

Gravely 049022

BUSHING, ST. .385X.610X1.80 STL.
(Superseded to 08831500)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 047314

SPRING, CLUTCH IDLER
(Superseded to 08343000)

$14.99

$

In Stock, only 1 left!

0

18

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

19

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

20

Gravely 040194

NUT, WING 5/16-18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

21

Gravely 045789

BUSHING, FLANGE NYLON
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0

22

Gravely 180020

BOLT, HEX 1/4-20X.750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

23

Gravely 049704

BRACKET, BRAKE ROD
(Superseded to 08837000)

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 049282

ROD, BRAKE
(Superseded to 08878300)

$

$

Not available

25

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

27

Gravely 049039

PULLEY, IDLER (PRO 32)
(Superseded to 07318800)

Note: (PRO 32)

$

$

Not available

28

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 13

0

29

Gravely 177923

PIN, COTTER .125X.75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 9

0

30

Gravely 011718

PIN, CLEVIS 3/8X1.093
(Superseded to 06814900)

$3.99

$

In Stock, only 2 left!

0

31

Gravely 049026

LINK, BRAKE ARM
(Superseded to 08831951)

$15.99

$

In Stock, only 1 left!

0

32

Gravely 018417

PIN, CLEVIS 3/8X.594
(Superseded to 06814800)

$3.99

$

In Stock, only 4 left!

0

33

Gravely 049023

WELDMENT, BRAKE ARM
(Superseded to 08831600)

$74.99

$

Usually ships in 4-12 days

0

34

Gravely 049027

BUSHING, ST. .391X.622X.950 STL.
(Superseded to 08833400)

$5.99

$

In Stock, Qty 8

0

35

Gravely 180128

BOLT, HEX 3/8-16X1.75
(Superseded to 05901809)

$1.49

$

Usually ships in 4-12 days

0

36

Gravely 049969

BUSHING, FLANGE
(Superseded to 05517900)

$5.99

$

In Stock, only 2 left!

0

37

Gravely 017980

RING, RETAINING
(Superseded to 05707300)

$2.99

$

Usually ships in 4-12 days

0

38

Gravely 049018

SHAFT, AXLE (PRO 32)
(Superseded to 08831100)

Note: (PRO 32)

$

$

Not available

39

Gravely 049017

ASSEMBLY, BRAKE BAND
(Superseded to 08880600)

$58.99

$

In Stock, only 3 left!

0

40

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

41

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 049015

DRUM, BRAKE
(Superseded to 08863900)

$45.99

$

In Stock, Qty 5

0

43

Gravely 138078

PIN, CLEVIS .375X.948
(Superseded to 06811900)

$4.99

$

In Stock, Qty 5

0

44

Gravely 018380

CLEVIS, 3/8-24 ADJUSTABLE
(Superseded to 08800400)

$11.99

$

In Stock, only 1 left!

0

45

Gravely 011860

PIN, COTTER HAIR
(Superseded to 06700222)

$0.99

$

In Stock, Qty 7

0

46

Gravely 049028

BELT-V, DRIVE WHEEL (PRO 32)
(Superseded to 07222300)

Note: (PRO 32)

$56.99

$

In Stock, only 3 left!

0

47

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

48

Gravely 041355

ROD, PULLEY CLEANING
(Superseded to 08876300)

$

$

Not available

49

Gravely 049016

SHEAVE, PRO 32 DRIVE WHEEL
(Superseded to 07318700)

$

$

Not available

50

Gravely 048014

ASSEMBLY, WHEEL 13X5.00-6
(Superseded to 20888600)

$

$

Not available

51

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

In Stock, only 4 left!

0

52

Gravely 022502

NUT, LOCK 3/4-10 LIGHT THIN
(Superseded to 06537900)

$15.99

$

Usually ships in 4-12 days

0
