988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) Electrical Parts Diagram

Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

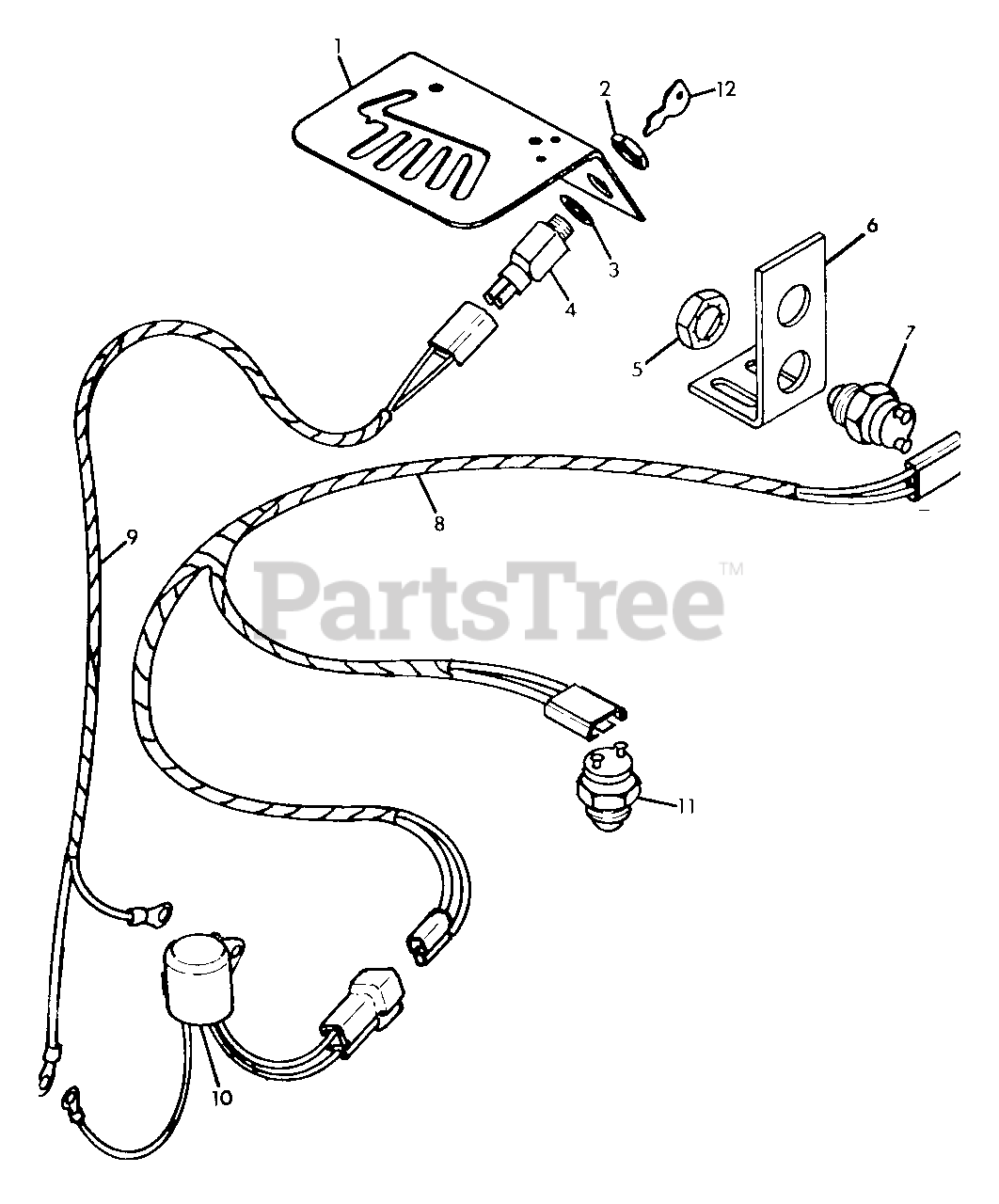

Electrical Parts Diagram

  • Title

1

Gravely 034649

PLT,SILK SCRM INSTR
(Superseded to 21243800)

$

$

Not available

2

Gravely 018585

NUT,JAM; 5/8-32
(Superseded to 21119800)

$

$

Not available

3

Gravely 018586

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 030202

SWITCH ASSEMBLY
(Superseded to 52406900)

$39.99

$

In Stock, only 2 left!

0

5

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 034637

BRKT,INTERLOCK SWITCH
(Superseded to 08803600)

$

$

Not available

7

Gravely 020916

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

$46.99

$

In Stock, only 2 left!

0

8

Gravely 034639

HRNS WRG,INTERLOCK
(Superseded to 20605900)

$

$

Not available

9

Gravely 034638

HRNS WRG,SWITCH
(Superseded to 20605800)

$

$

Not available

10

Gravely 030204

CNTRL,MODULE
(Superseded to 20527200)

$

$

Not available

11

Gravely 034640

SWITCH, NEUTRAL START N.C.
(Superseded to 08803700)

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 018570

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0
