988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above)

Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

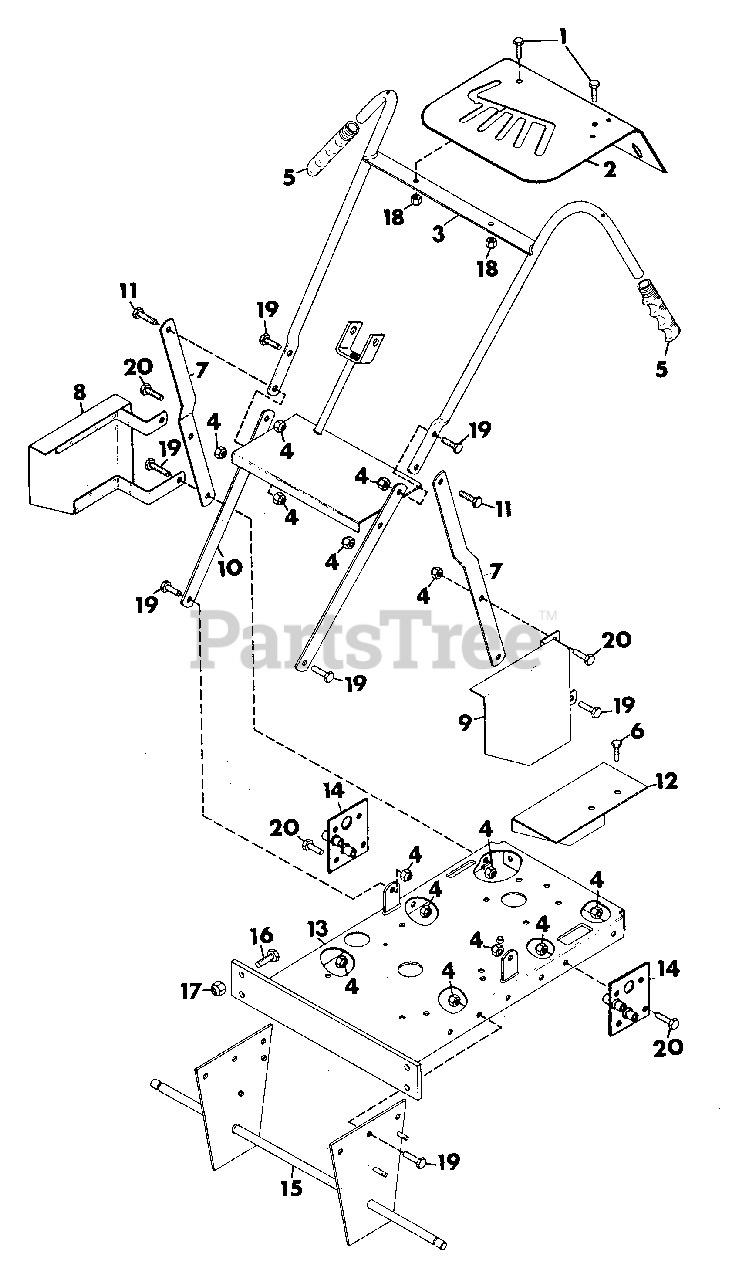

988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (14) > Frame

  • Title
180079

1

Bolt, Hex 5/16-18x1.00

Part# 180079 (Superseded to 05946900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

34649

2

Plate, Instruction

Part# 34649

Not available

34875

3

Weldment, Handlebar

Part# 34875

Not available

456004

4

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

10671

5

Grip, Hand

Part# 10671

Not available

34357

6

Bolt, Self-Tapping 5/16-18x.50

Part# 34357

Not available

34878

7

Brace, Handlebar Support

Part# 34878

Not available

34390

8

Weldment, Belt Guard R.H.

Part# 34390

Not available

34389

9

Weldment, Belt Guard L.H.

Part# 34389

Not available

34873

10

Weldment, Handle Bar Support

Part# 34873

Not available

180124

11

Bolt, Hex 3/8-16x1.25

Part# 180124 (Superseded to 05958000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

34891

12

Guard, Transmission Chain

Part# 34891

Not available

34865

13

Weldment, Frame

Part# 34865

Not available

34870

14

Weldment, Bearing Support L.H.

Part# 34870

Not available

34868

15

Weldment, Axle

Part# 34868

Not available

180177

16

Bolt, Hex 1/2-13x1.50

Part# 180177 (Superseded to 05962000)

OEM Warranty Repair Part for Gravely

Not available

435507

17

Nut, Lock 1/2-13

Part# 435507 (Superseded to 06540600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

419455

18

Nut, Lock 5/16-18

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

180122

19

Bolt, Hex 3/8-16xl.00

Part# 180122 (Superseded to 05948700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

180120

20

Bolt, Hex 3/8-16x.75

Part# 180120 (Superseded to 05959400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18
