988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above)

Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

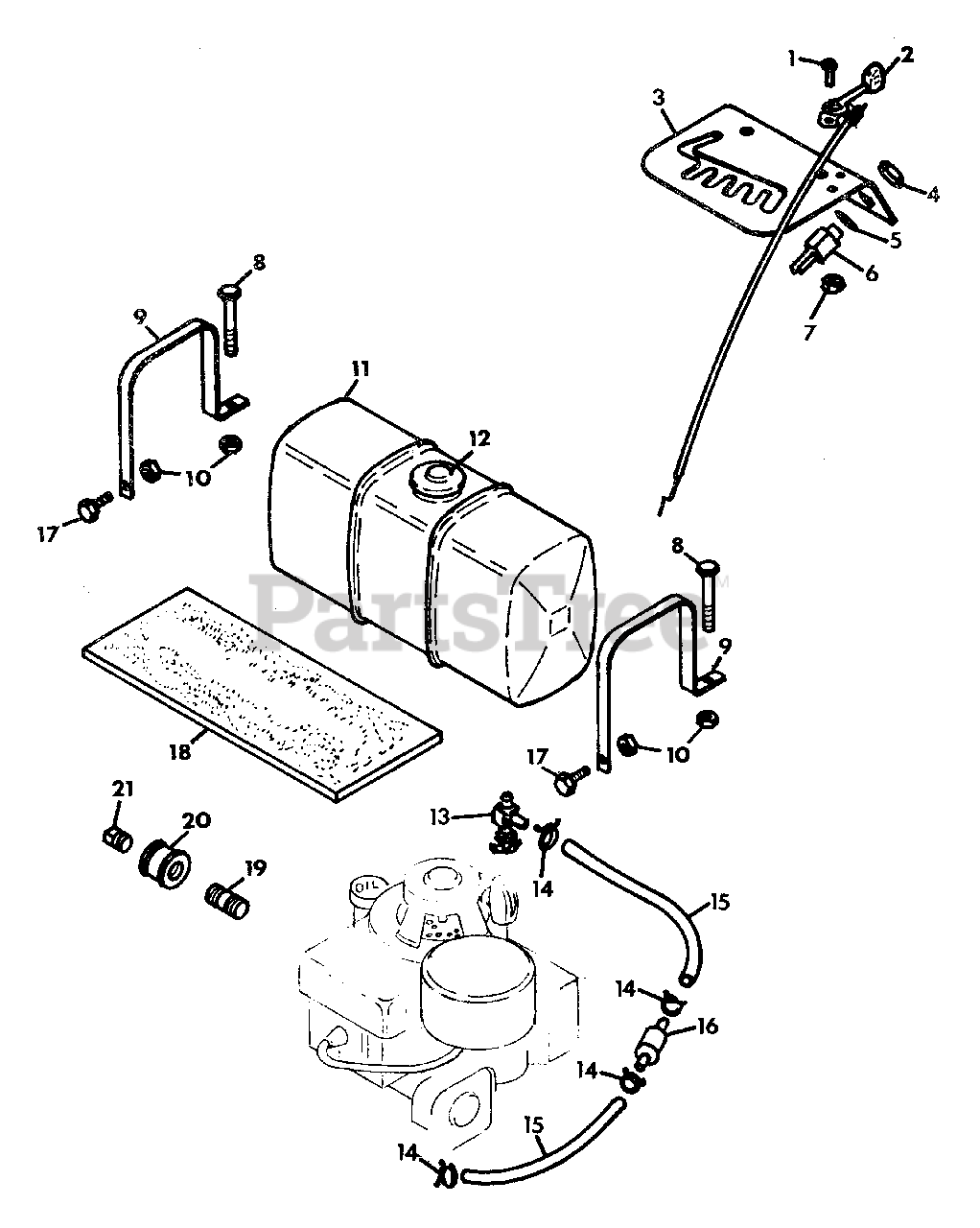

988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (14) > Fuel System

  • Title
436732

1

Screw, Mach. 10-24x.50

Part# 436732 (Superseded to 21070100)

OEM Warranty Repair Part for Gravely

Not available

34371

2

Lever, Throttle-Choke

Part# 34371

Not available

34649

3

Plate, Instruction

Part# 34649

Not available

18585

4

Nut, Jam 5/8-32

Part# 18585

Not available

18586

5

Washer, Lock 5/8

Part# 18586

Not available

30202

6

Switch, Key

Part# 30202

Not available

190254

7

Nut, Lock 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

180050

8

Bolt, Hex 1/4-20x2.75

Part# 180050 (Superseded to 05969900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

34882

9

Strap, Fuel Tank

Part# 34882

Not available

419454

10

Nut, Lock 1/4-20

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

34861

11

Tank, Fuel (12 qts.)

Part# 34861

Note: (12 qts.)

Not available

10756

12

Cap, Fuel Tank

Part# 10756

OEM Warranty Repair Part for Gravely

Not available

7354

13

Valve and Strainer

Part# 7354

Not available

7216

14

Clamp, Fuel Hose

Part# 7216

Not available

21134

15

Hose, Fuel

Part# 21134

Not available

31848

16

Filter, Fuel

Part# 31848

Not available

180018

17

Bolt, Hex 1/4-20x.625

Part# 180018 (Superseded to 05932000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

34862

18

Pad, Fuel Tank

Part# 34862

Not available

192069

19

Nipple, Pipe 3/8NPTx1.50

Part# 192069

OEM Warranty Repair Part for Gravely

Not available

144069

20

Coupling, Pipe 3/8N PT

Part# 144069 (Superseded to 21061800)

OEM Warranty Repair Part for Gravely

Not available

444867

21

Plug, Pipe 3/8NPT

Part# 444867 (Superseded to 07025700)

OEM Warranty Repair Part for Gravely

Not available
