Parts Home > Gravely > Walk-Behind Mowers > 988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) > Gear Selector & PTO Clutch

988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above)

Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

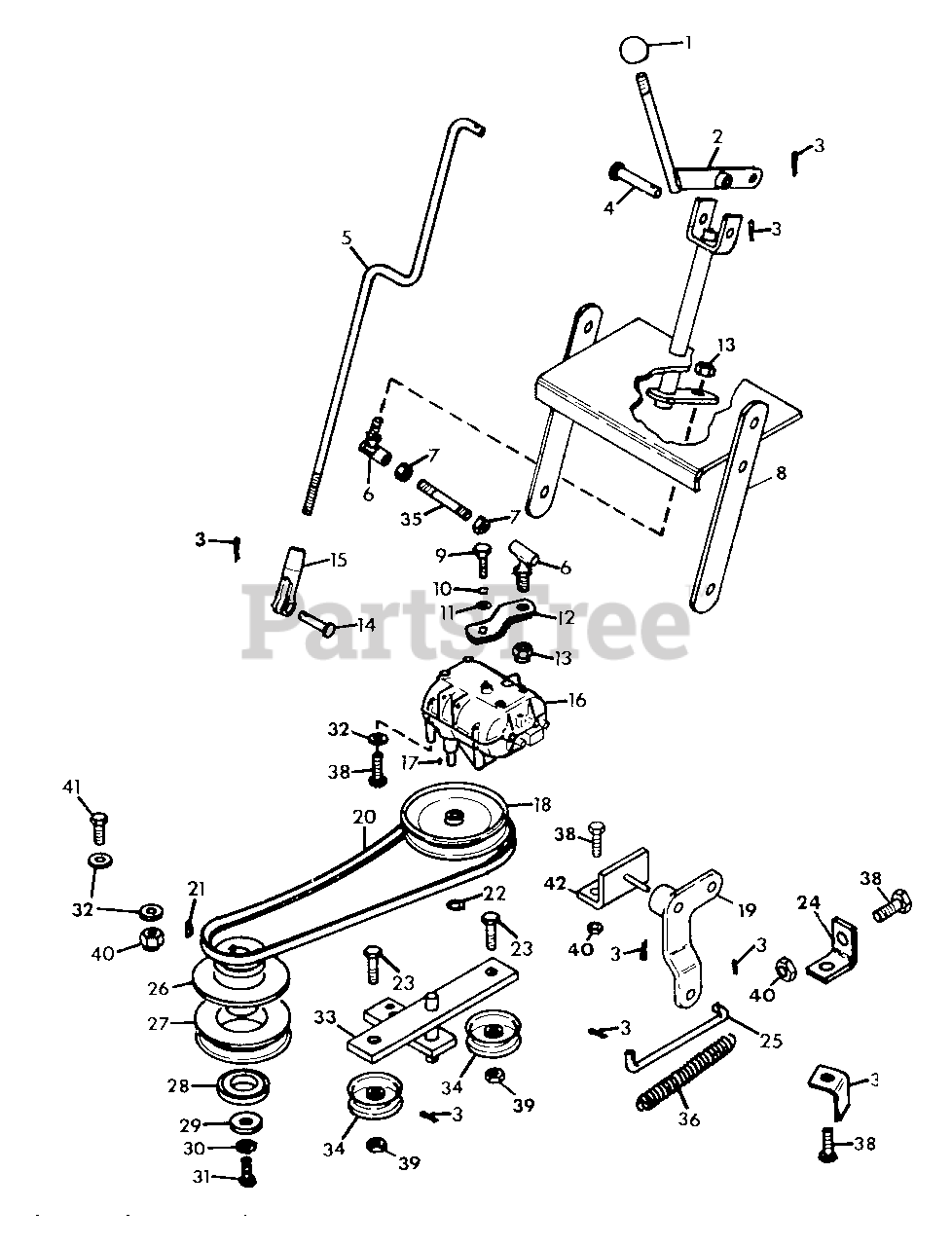

988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (14) > Gear Selector & PTO Clutch

  • Title
11261

1

Knob, Control

Part# 11261

Not available

34410

2

Weldment, Shift Lever

Part# 34410

Not available

121222

3

Pin, Cotter .09x.625

Part# 121222 (Superseded to 06706900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

34632

4

Pin, Clevis

Part# 34632

Not available

34416

5

Rod, Neutral Clutch

Part# 34416

Not available

32352

6

Ball Joint, Disconnecting

Part# 32352

Not available

120367

7

Nut, Hex 1/4-28

Part# 120367 (Superseded to 06500400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

34873

8

Weldment, Shifter

Part# 34873

Not available

181561

9

Bolt, Hex 1/4-28x.50

Part# 181561 (Superseded to 05936600)

OEM Warranty Repair Part for Gravely

Not available

120380

10

Washer, Lock 1/4

Part# 120380 (Superseded to 06308400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

422845

11

Washer, Flat .281x.625x.065

Part# 422845 (Superseded to 06437300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

34418

12

Arm, Trans. Shift

Part# 34418

Not available

416430

13

Nut, Lock 1/4-28

Part# 416430 (Superseded to 06533400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

121741

14

Pin, Clevis .312x.812

Part# 121741 (Superseded to 06814000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

18380

15

Clevis, 3/8-24

Part# 18380

Not available

34926

16

Transmission, 5-Speed

Part# 34926

Not available

124549

17

Key, Woodruff .187x.750 Hard

Part# 124549 (Superseded to 06608700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

34331

18

Sheave, Transmission

Part# 34331

Not available

34630

19

Lever, Clutch Pivot

Part# 34630

Not available

34332

20

Belt, Transmission

Part# 34332

Not available

18345

21

Key, Square .250x1.250

Part# 18345

Not available

15338

22

Ring, Retaining

Part# 15338

Not available

180124

23

Bolt, Hex 3/8-16xl.25

Part# 180124 (Superseded to 05958000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

34894

24

Tab, Spring

Part# 34894

Not available

34629

25

Rod, Clutch Idler Actuating

Part# 34629

Not available

34323

26

Weldment, Clutch Hub

Part# 34323

Not available

34327

27

Sheave, Mower Clutch

Part# 34327

Not available

18042

28

Bearing, Ball 1.574x3.149x.708

Part# 18042

Not available

34328

29

Washer, Special Flat

Part# 34328

Not available

120383

30

Washer, Lock 7/16

Part# 120383 (Superseded to 06309300)

OEM Warranty Repair Part for Gravely

Not available

181674

31

Bolt, Hex 7/16-20x2.00

Part# 181674 (Superseded to 05948600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

120393

32

Washer, Flat .344x.688x.065

Part# 120393 (Superseded to 06437200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

34883

33

Weldment, Clutch Idler Actuating

Part# 34883

Not available

27829

34

Sheave, Idler

Part# 27829

Not available

34635

35

Rod, Trans. Shifter

Part# 34635

Not available

34636

36

Spring, Neutral Clutch

Part# 34636

Not available

34329

37

Belt Guide, Transmission

Part# 34329

Not available

180077

38

Bolt, Hex 5/16-18x.75

Part# 180077 (Superseded to 05947000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

456004

39

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

419455

40

Nut, Lock 5/16-18

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

180085

41

Bolt, Hex 5/16-18xl.75

Part# 180085 (Superseded to 05957400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

34887

42

Weldment, Clutch Lever Bracket

Part# 34887

Not available
