988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) Main Drive Parts Diagram

Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

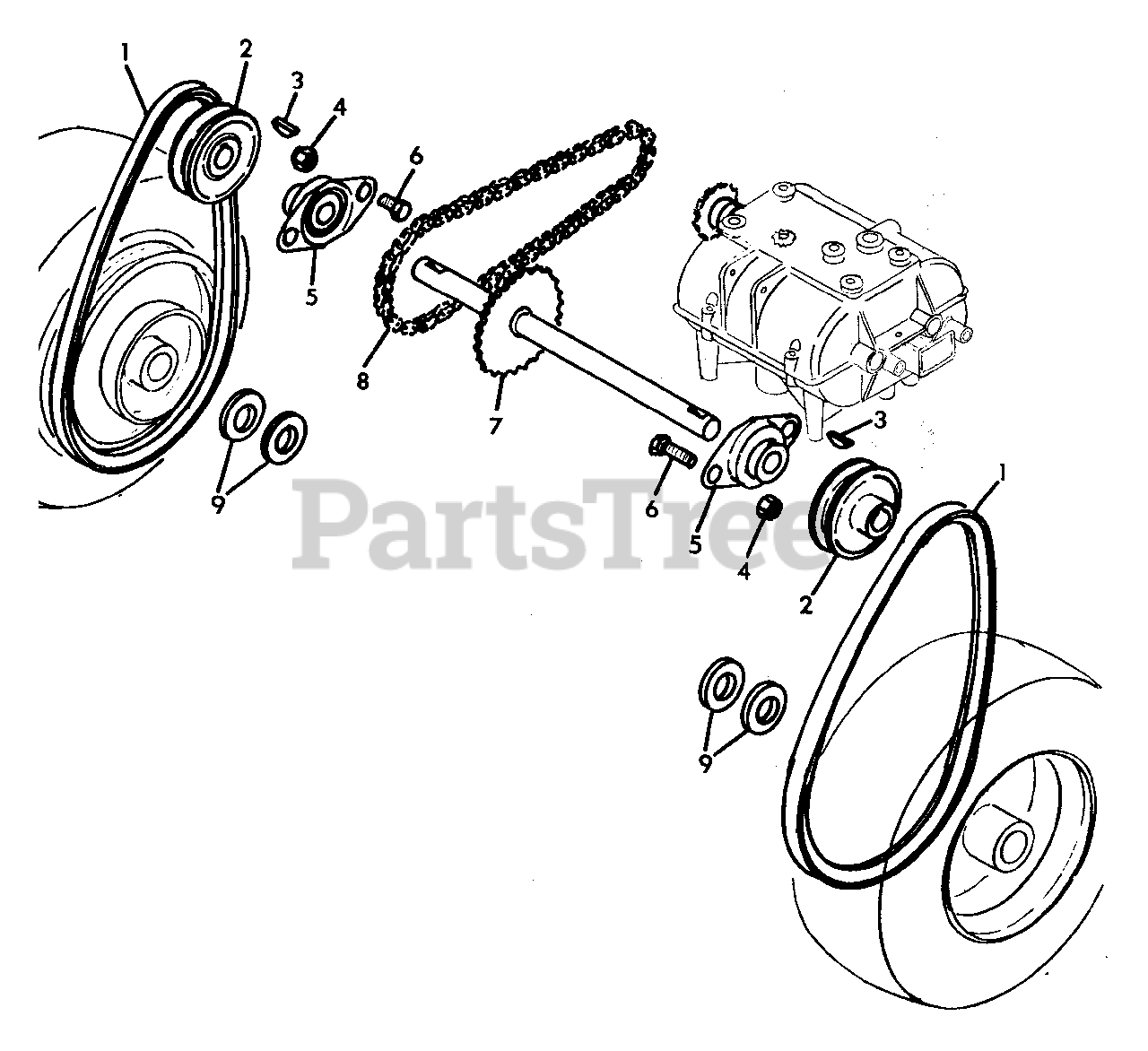

Main Drive Parts Diagram

  • Title

1

Gravely 034346

BELT,V DRV TRACTION WHL
(Superseded to 20600100)

$37.99

$

Usually ships in 4-12 days

0

2

Gravely 034321

SHEAVE
(Superseded to 08822800)

$

$

Not available

3

Gravely 124549

KEY-WDRF .19X.75 HRD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

5

Gravely 030986

BRG-FLG .75X2HOLESX2.123
(Superseded to 05424100)

$

$

Not available

6

Gravely 180120

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

7

Gravely 034859

WLDMT,JACK SHAFT
(Superseded to 21244900)

$

$

Not available

8

Gravely 034330

CHN,AMER STD #40
(Superseded to 20599600)

$

$

Not available

9

Gravely 131018

WSHR,FL.938X1.750X.134
(Superseded to 21053300)

$

$

Not available
