Parts Home > Gravely > Walk-Behind Mowers > 988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) > Main Drive

988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above)

Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

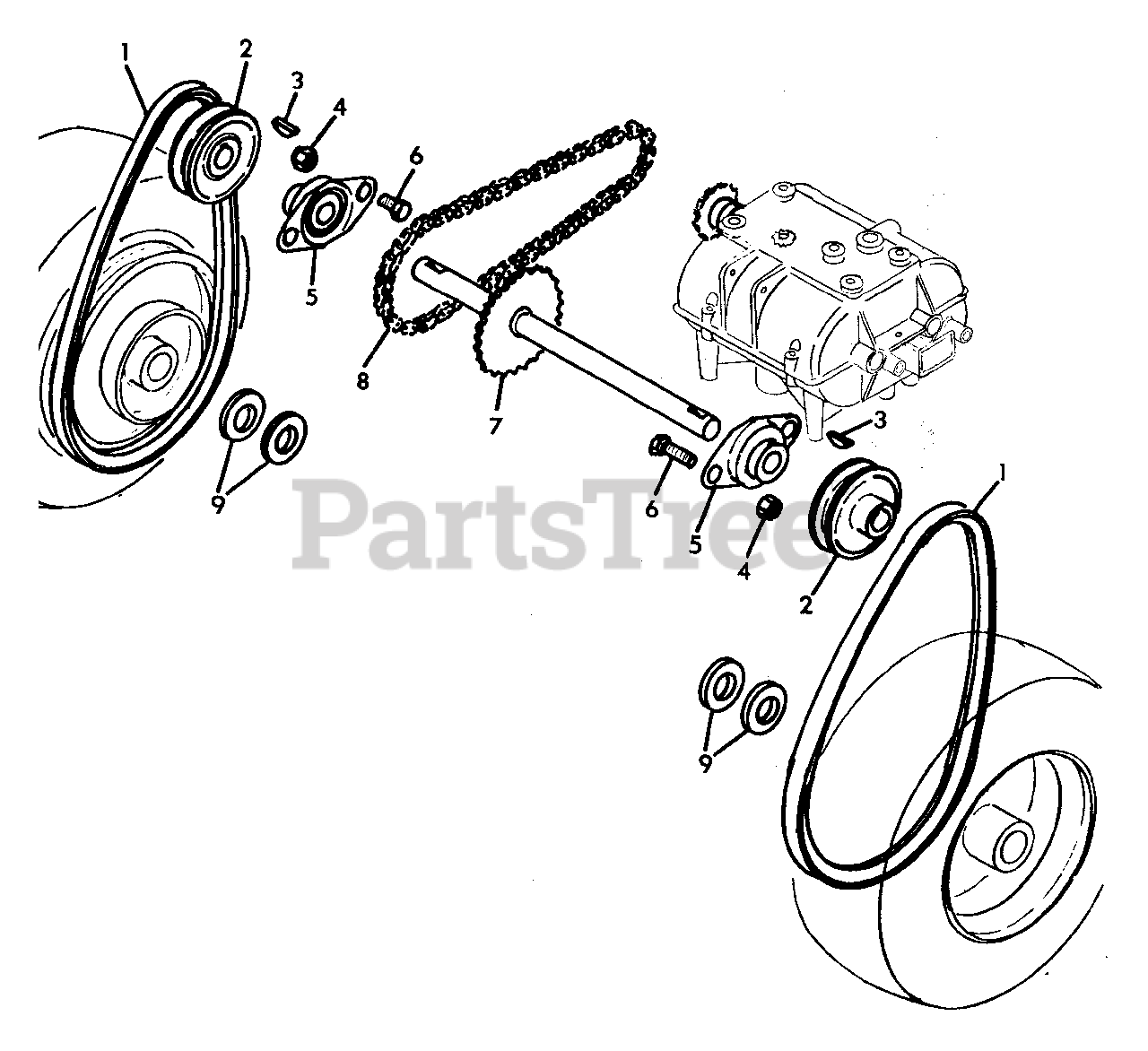

988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (14) > Main Drive

  • Title
34346

1

Belt, Traction

Part# 34346

Not available

34321

2

Pulley, Jack-Shaft

Part# 34321

Not available

124549

3

Key, Woodruff 3/16x.750

Part# 124549 (Superseded to 06608700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

456004

4

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

30986

5

Bearing

Part# 30986

Not available

180120

6

Bolt, Hex 3/8-16x.75

Part# 180120 (Superseded to 05959400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

34859

7

Weldment, Jack-Shaft

Part# 34859

Not available

34330

8

Chain, American Standard No. 40

Part# 34330

Not available

131018

9

Washer, Flat .938x1.750x.134

Part# 131018 (Superseded to 21053300)

OEM Warranty Repair Part for Gravely

Not available
