988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above)

Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

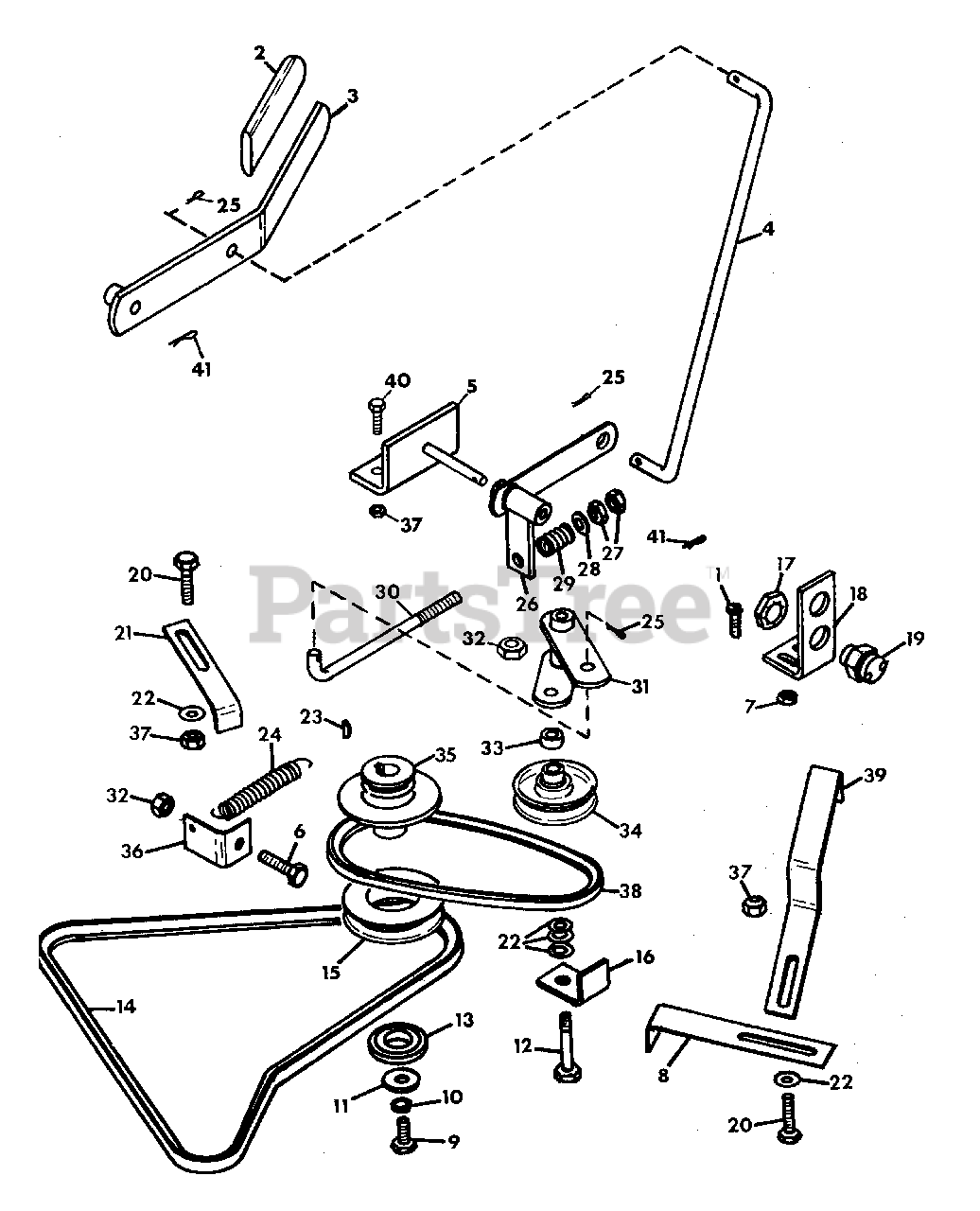

988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (14) > PTO Linkage

  • Title
436732

1

Screw, Mach. 10-24x1.50

Part# 436732 (Superseded to 21070100)

OEM Warranty Repair Part for Gravely

Not available

34395

2

Grip, PTO Lever

Part# 34395

Not available

35061

3

Weldment, PTO Control Handle

Part# 35061

Not available

35057

4

Rod, PTO Control

Part# 35057

Not available

34886

5

Weldment, PTO Hand Lever Brkt.

Part# 34886

Not available

180122

6

Bolt, Hex 3/8-16x1.00

Part# 180122 (Superseded to 05948700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

190254

7

Nut, Lock 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

34309

8

Belt Guide, Rear Clutch Hub

Part# 34309

Not available

181674

9

Bolt, Hex 7/16-20x2.00

Part# 181674 (Superseded to 05948600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

120383

10

Washer, Lock 7/16

Part# 120383 (Superseded to 06309300)

OEM Warranty Repair Part for Gravely

Not available

34328

11

Washer, Special Flat

Part# 34328

Not available

180132

12

Bolt, Hex 3/8-16x2.25

Part# 180132 (Superseded to 05962900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

18042

13

Bearing, Ball 1.574x3.149x.708

Part# 18042

Not available

34289

14

Belt, Mower

Part# 34289

Not available

34327

15

Sheave, Mower Clutch

Part# 34327

Not available

34376

16

Belt Guide, PTO Idler

Part# 34376

Not available

107354

17

Nut, Stamped 9/16-18

Part# 107354 (Superseded to 07015100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

34637

18

Bracket, Interlock Switch

Part# 34637

Not available

20916

19

Switch, Interlock

Part# 20916

Not available

180085

20

Bolt, Hex 5/16-18xl.75

Part# 180085 (Superseded to 05957400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

34310

21

Belt Guide, Front Clutch Hub

Part# 34310

Not available

120393

22

Washer, Flat .344x.688x.065

Part# 120393 (Superseded to 06437200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

18345

23

Key, Square .250x1.250

Part# 18345

Not available

34385

24

Spring, PTO Return

Part# 34385

Not available

179252

25

Pin, Cotter .063x1.00

Part# 179252 (Superseded to 06707500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

34377

26

Weldment, PTO Clutch Lever

Part# 34377

Not available

120377

27

Nut, Hex 3/8-16

Part# 120377 (Superseded to 06529400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

120394

28

Washer, Flat .406x.812x.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

11779

29

Spring, Comp. 1.0x.78

Part# 11779

Not available

34381

30

Rod, PTO Clutch Actuating

Part# 34381

Not available

34863

31

Weldment, PTO Clutch Actuating

Part# 34863

Not available

456004

32

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

34383

33

Spacer

Part# 34383

Not available

27891

34

Pulley

Part# 27891

Not available

34323

35

Weldment, Clutch Hub

Part# 34323

Not available

34384

36

Tab, PTO Return Spring

Part# 34384

Not available

419455

37

Nut, Lock 5/16-18

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

34864

38

Belt, PTO Clutch

Part# 34864

Not available

34311

39

Belt Guide, PTO Clutch

Part# 34311

Not available

180077

40

Bolt, Hex 5/16-18x.75

Part# 180077 (Superseded to 05947000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

121222

41

Pin, Cotter .094x.625

Part# 121222 (Superseded to 06706900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40
