988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) Spindle Parts Diagram

Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

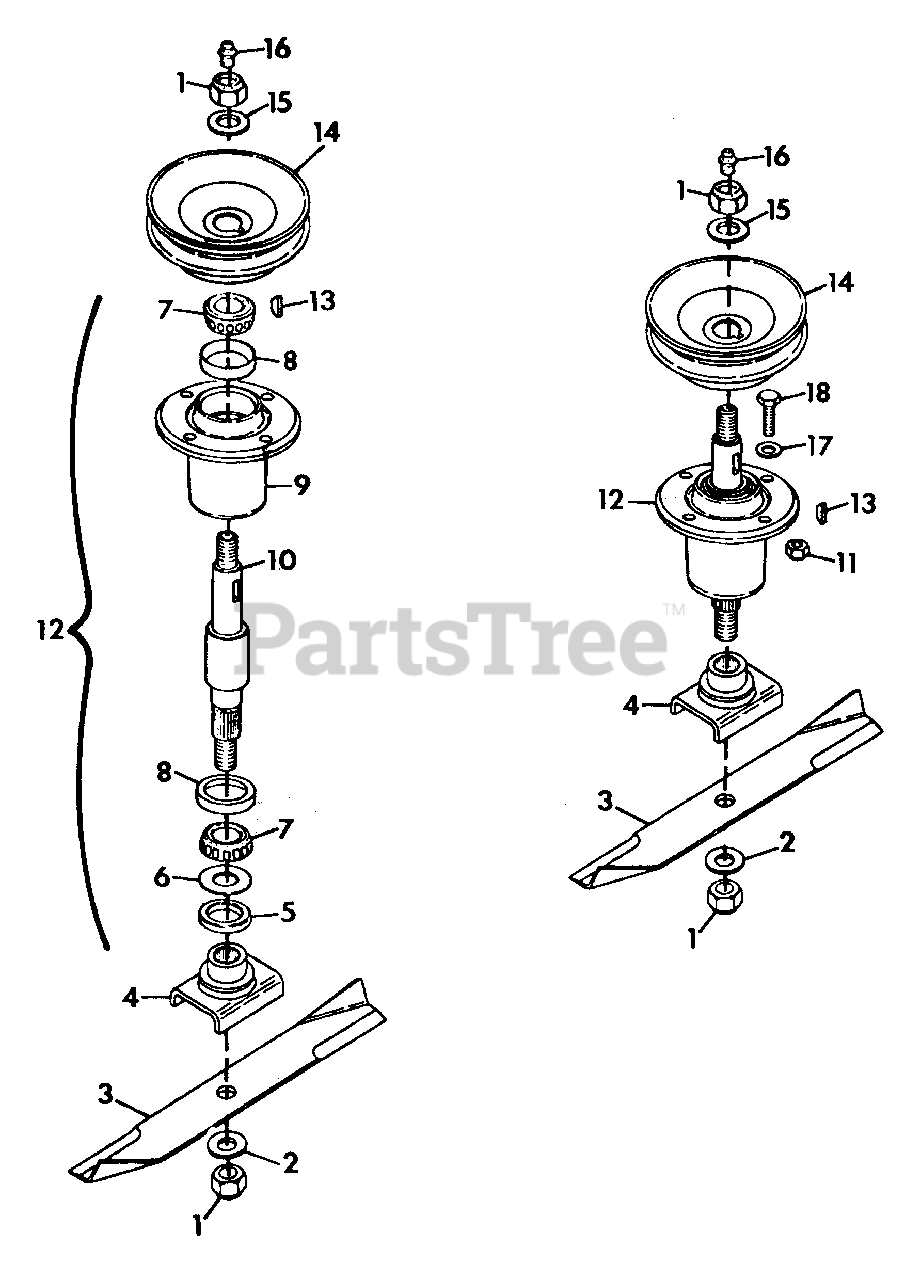

Spindle Parts Diagram

  • Title

1

Gravely 272739

NUT,LK .625-188 HEX W/INSR
(Superseded to 06528000)

$

$

Not available

2

Gravely 131016

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 025124

BLADE
(Superseded to 08904600)

$

$

Not available

4

Gravely 023026

WELM'D, BLADE CRADLE
(Superseded to 08798300)

$158.99

$

Usually ships in 4-12 days

0

5

Gravely 021211

SPCR 1.391X1.980X.313 PM
(Superseded to 08722600)

$16.99

$

In Stock, Qty 9

0

6

Gravely 020743

WSHR-FL-STL .97X1.865X.03
(Superseded to 06426900)

$6.49

$

In Stock, Qty 20+

0

7

Gravely 009246

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

8

Gravely 009245

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

9

Gravely 021215

HSG,BEARING
(Superseded to 08722700)

$137.99

$

Usually ships in 4-12 days

0

10

Gravely 034603

SPINDLE SHAFT SERVICE KIT
(Superseded to 58802900)

$128.99

$

In Stock, Qty 8

0

11

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 034605

MAINTENANCE FREE SPINDLE ASSY
(Superseded to 58803600)

$273.99

$

In Stock, Qty 8

0

13

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 14

0

14

Gravely 034282

SHEAVE
(Superseded to 08946700)

$266.99

$

Usually ships in 4-12 days

0

15

Gravely 033845

WSHR-FL-STL .687X1.312X.15 YWZ
(Superseded to 06427400)

$2.99

$

In Stock, Qty 7

0

16

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$4.99

$

In Stock, Qty 12

0

17

Gravely 120388

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0
