988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above)

Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

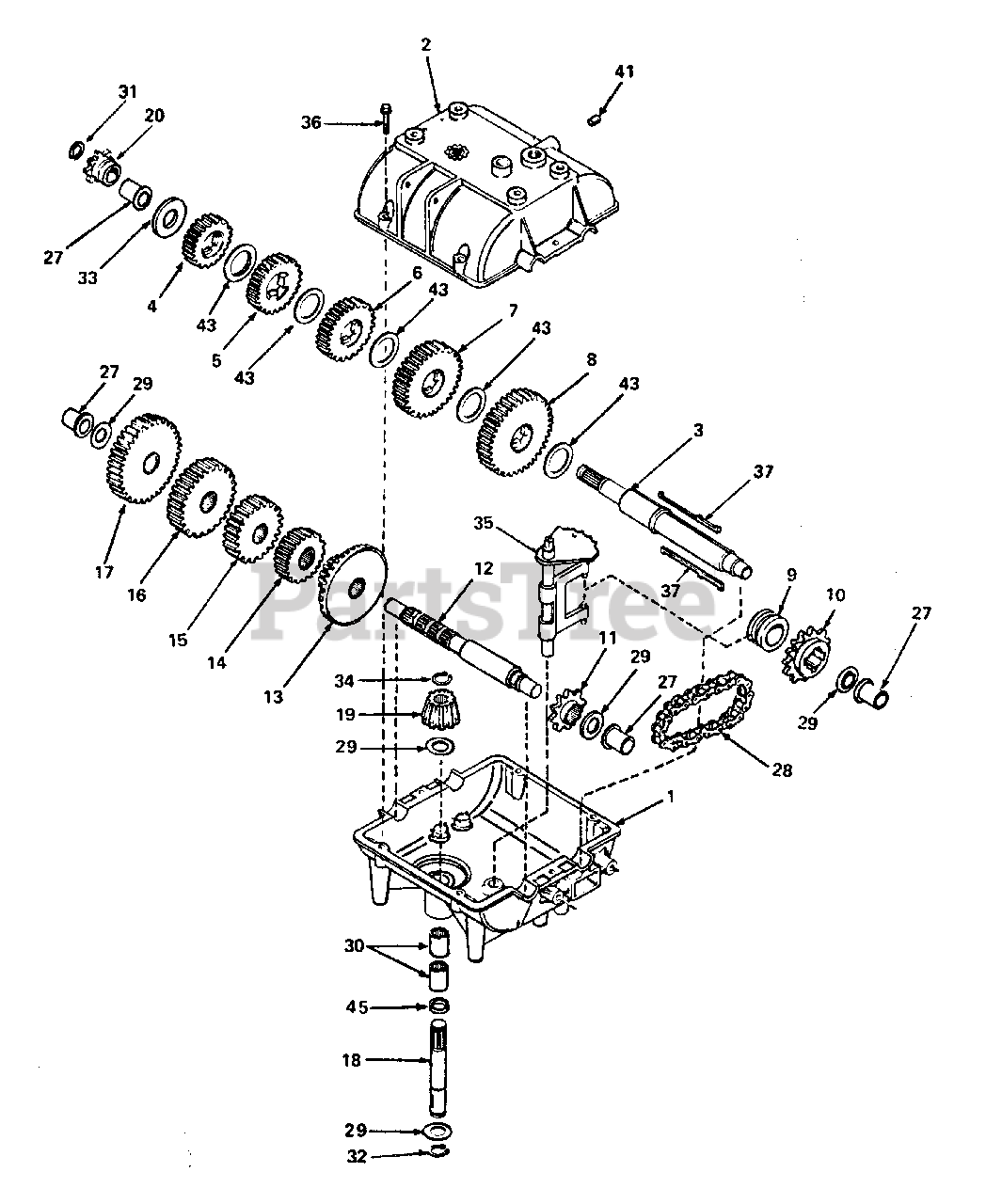

988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (14) > Transmission

  • Title
770061

1

Case, Transmission

Part# 770061

OEM Warranty Repair Part for Gravely

Not available

772070

2

Cover, Transmission

Part# 772070

OEM Warranty Repair Part for Gravely

Not available

776164

3

Shaft, Output

Part# 776164

OEM Warranty Repair Part for Gravely

Not available

778121A

4

Gear, Spur (20 teeth)

Part# 778121A

Note: (20 teeth)

OEM Warranty Repair Part for Gravely

Not available

778122

5

Gear, Spur (22 teeth)

Part# 778122

Note: (22 teeth)

OEM Warranty Repair Part for Gravely

Not available

778123

6

Gear, Spur (25 teeth)

Part# 778123

Note: (25 teeth)

OEM Warranty Repair Part for Gravely

Not available

778124

7

Gear, Spur (30 teeth)

Part# 778124

Note: (30 teeth)

OEM Warranty Repair Part for Gravely

Not available

778125

8

Gear, Spur (35 teeth)

Part# 778125

Note: (35 teeth)

OEM Warranty Repair Part for Gravely

Not available

784266

9

Collar, Shift

Part# 784266

OEM Warranty Repair Part for Gravely

Not available

786083

10

Sprocket (18 teeth)

Part# 786083

Note: (18 teeth)

OEM Warranty Repair Part for Gravely

Not available

786082

11

Sprocket (9 teeth)

Part# 786082

Note: (9 teeth)

OEM Warranty Repair Part for Gravely

Not available

776134

12

Shaft, Counter

Part# 776134

OEM Warranty Repair Part for Gravely

Not available

778109

13

Gear, Bevel (42 tooth and 15 tooth spur gear)

Part# 778109

Note: (42 tooth and 15 tooth spur gear)

OEM Warranty Repair Part for Gravely

Not available

778126

14

Gear, Spur (20 teeth)

Part# 778126

Note: (20 teeth)

OEM Warranty Repair Part for Gravely

Not available

778127

15

Gear, Spur (25 teeth)

Part# 778127

Note: (25 teeth)

OEM Warranty Repair Part for Gravely

Not available

778128

16

Gear, Spur (28 teeth)

Part# 778128

Note: (28 teeth)

OEM Warranty Repair Part for Gravely

Not available

778129

17

Gear, Spur (30 teeth)

Part# 778129

Note: (30 teeth)

OEM Warranty Repair Part for Gravely

Not available

776135

18

Shaft, Input

Part# 776135

OEM Warranty Repair Part for Gravely

Not available

778113A

19

Bevel Pinion, Input

Part# 778113A

OEM Warranty Repair Part for Gravely

Not available

786047

20

Sprocket (8 teeth)

Part# 786047

Note: (8 teeth)

OEM Warranty Repair Part for Gravely

Not available

780105A

27

Bushing, Flanged

Part# 780105A

OEM Warranty Repair Part for Gravely

Not available

786081

28

Chain, Roller (No. 41 chain, 24 links)

Part# 786081

Note: (No. 41 chain, 24 links)

OEM Warranty Repair Part for Gravely

Not available

780072

29

Race, Thrust

Part# 780072

OEM Warranty Repair Part for Gravely

Not available

780086

30

Bearing, Needle

Part# 780086

OEM Warranty Repair Part for Gravely

Not available

792072

31

Ring, Retaining

Part# 792072

OEM Warranty Repair Part for Gravely

Not available

792035

32

Ring, Retaining

Part# 792035

OEM Warranty Repair Part for Gravely

Not available

780109

33

Washer

Part# 780109

OEM Warranty Repair Part for Gravely

Not available

788040

34

Ring, Retaining

Part# 788040

OEM Warranty Repair Part for Gravely

Not available

784267

35

Rod & Fork Assy., Shift

Part# 784267

OEM Warranty Repair Part for Gravely

Not available

792073

36

Screw, Hex hd. tap-tite, 1/4-20 x 1-1/4

Part# 792073

OEM Warranty Repair Part for Gravely

Not available

792089A

37

Key

Part# 792089A

OEM Warranty Repair Part for Gravely

Not available

792078

41

Screw, Set, 3/8-16 x 3/8

Part# 792078

OEM Warranty Repair Part for Gravely

Not available

780108

43

Washer, Thrust

Part# 780108

OEM Warranty Repair Part for Gravely

Not available

792001

45

Ring, Square Cut

Part# 792001

OEM Warranty Repair Part for Gravely

Not available
