Parts Home > Gravely > Walk-Behind Mowers > 988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) > Wheel Drive

988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above)

Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

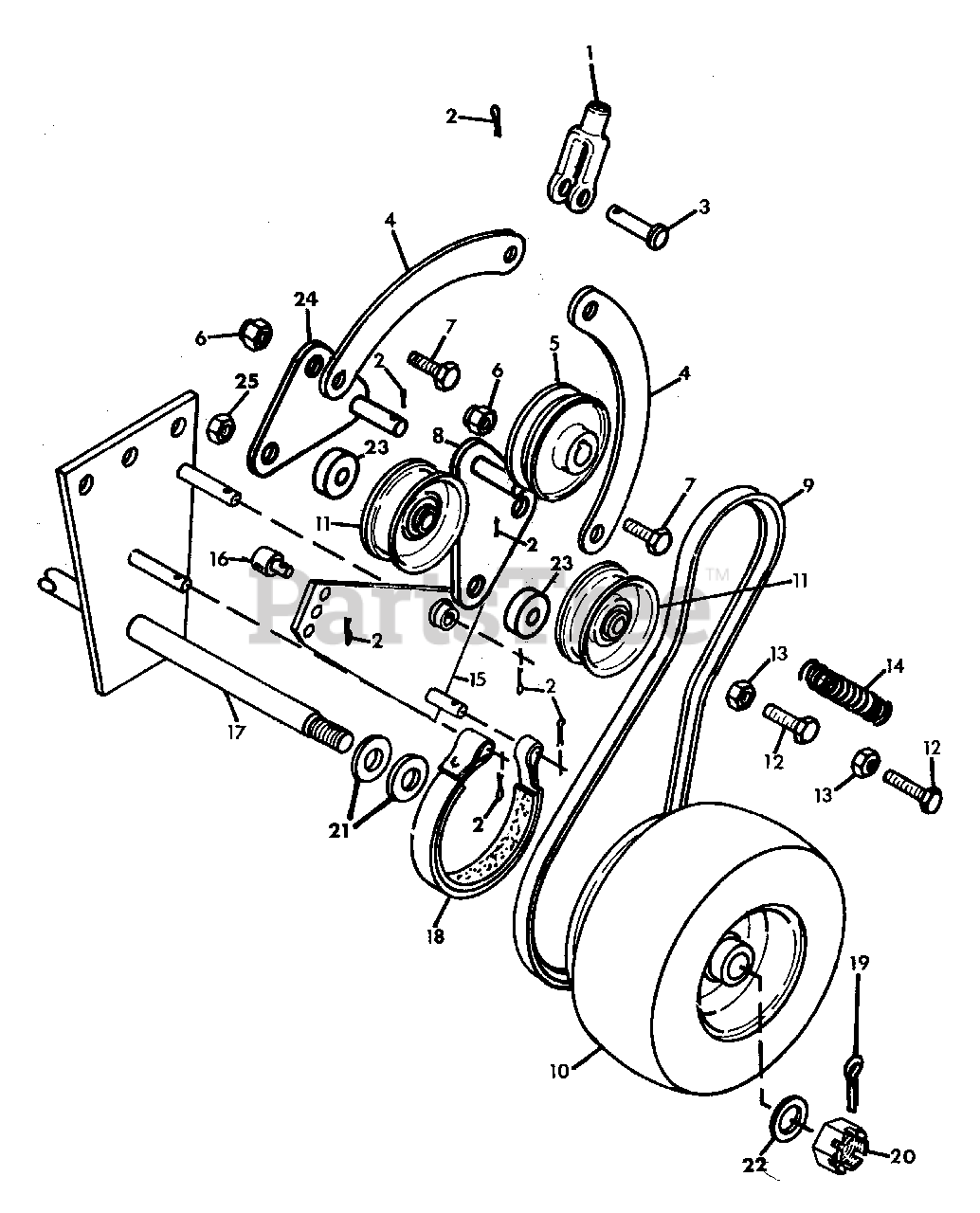

988021 - Gravely Pro 40 Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (14) > Wheel Drive

  • Title
34633

1

Clevis, 5/16

Part# 34633

Not available

121222

2

Pin, Cotter .09x.625

Part# 121222 (Superseded to 06706900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

121741

3

Pin, Clevis .312x.812

Part# 121741 (Superseded to 06814000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

34387

4

Strap, Wheel Clutch Actuating

Part# 34387

Not available

34321

5

Pulley, Jack-Shaft

Part# 34321

Not available

413447

6

Nut, Lock 5/16-18

Part# 413447 (Superseded to 06529800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

180075

7

Bolt, Hex 5/16x.625

Part# 180075 (Superseded to 05952200)

OEM Warranty Repair Part for Gravely

Not available

34879

8

Lever, Wheel Clutch Idler

Part# 34879

Not available

34346

9

Belt, Traction

Part# 34346

Not available

34347

10

Assembly, Wheel & Tire

Part# 34347

Not available

27824

11

Sheave, Idler

Part# 27824

Not available

34402

12

Bolt, Hex 3/8-16x2.0

Part# 34402

Not available

120377

13

Nut, Hex 3/8-16

Part# 120377 (Superseded to 06529400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

34400

14

Spring

Part# 34400

Not available

34301

15

Weldment, Brake Lever L.H.

Part# 34301

Not available

34302

15

Weldment, Brake Lever R.H.

Part# 34302

Not available

34349

16

Pivot, Brake Rod

Part# 34349

Not available

34868

17

Weldment, Axle

Part# 34868

Not available

34306

18

Assembly, Brake Band L.H.

Part# 34306

Not available

34307

18

Assembly, Brake Band R.H.

Part# 34307

Not available

137228

19

Pin, Cotter .156x1.50

Part# 137228 (Superseded to 06713800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

427640

20

Nut, Slotted 3/4-16

Part# 427640 (Superseded to 06538700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

131018

21

Washer, Flat .938x1.750x.134

Part# 131018 (Superseded to 21053300)

OEM Warranty Repair Part for Gravely

Not available

423315

22

Washer, Flat .812xl.375x.100

Part# 423315 (Superseded to 06439000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

14672

23

Spacer, Idler

Part# 14672

Not available

35128

24

Weldment, Wheel Clutch L.H.

Part# 35128

Not available

456004

25

Nut, Lock 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available
