988025 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) GEAR SELECTOR Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

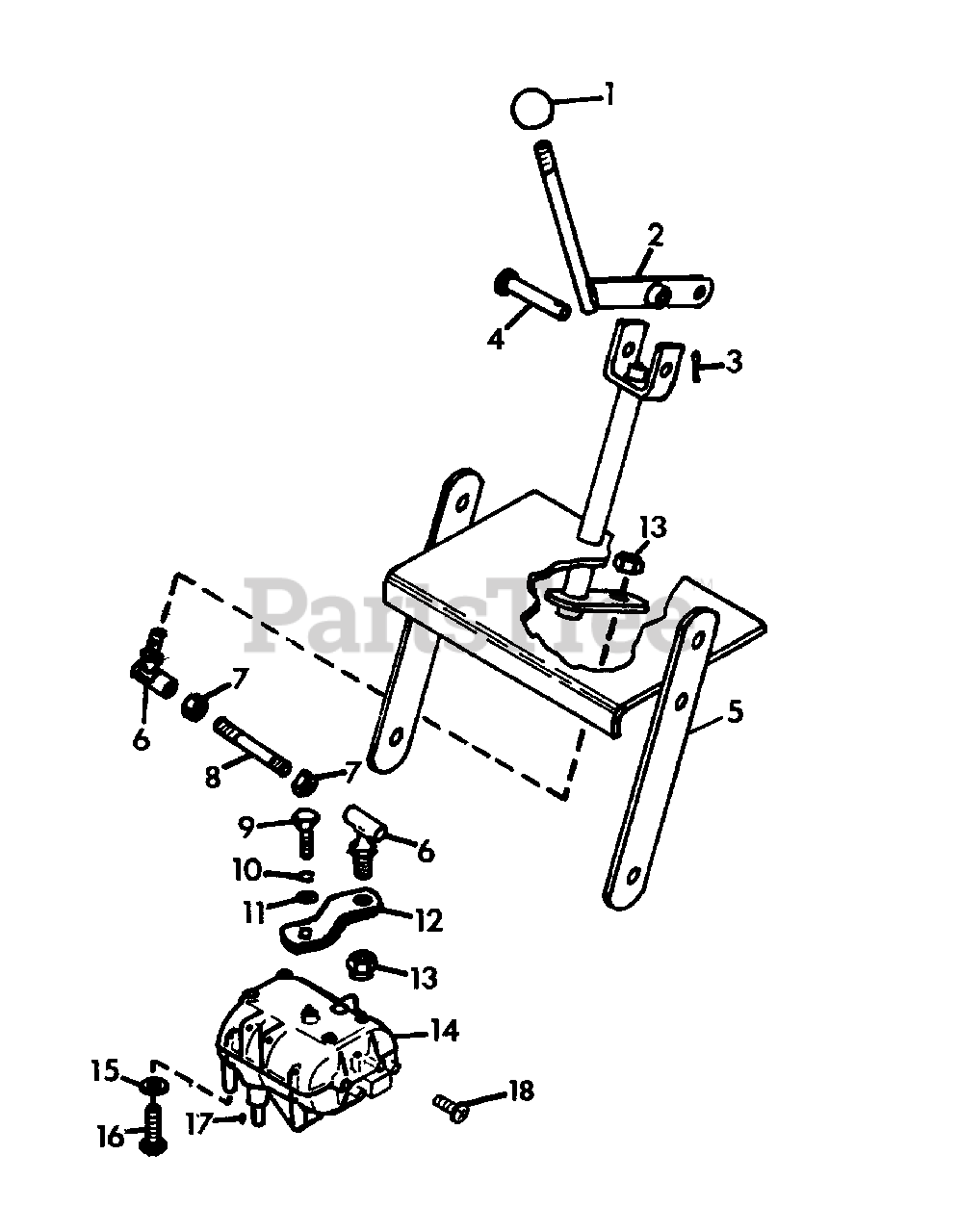

GEAR SELECTOR Parts Diagram

  • Title

1

Gravely 011261

KNOB, CONTROL
(Superseded to 20069800)

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 034410

WELDMENT, SHIFT LEVER
(Superseded to 21227800)

$

$

Not available

3

Gravely 121222

PIN, COTTER .09X.625
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

4

Gravely 034632

PIN, CLEVIS
(Superseded to 20605400)

$

$

Not available

5

Gravely 034873

WELDMENT, SHIFTER
(Superseded to 21248900)

$

$

Not available

6

Gravely 032352

BALL JOINT, DISCONNECTING
(Superseded to 08802500)

$

$

Not available

7

Gravely 120367

NUT, HEX 1/4-28
(Superseded to 06500400)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 034635

ROD, TRANS. SHIFTER
(Superseded to 20605600)

$

$

Not available

9

Gravely 181561

BOLT, HEX 1/4-28X.50
(Superseded to 05936600)

$

$

Not available

10

Gravely 120380

WASHER, LOCK 1/4
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

11

Gravely 422845

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

12

Gravely 034418

ARM, TRANS. SHIFT
(Superseded to 08863751)

$

$

Not available

13

Gravely 416430

NUT, LOCK 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

14

Gravely 034926

TRANSMISSION, 5-SPEED
(Superseded to 20613900)

$

$

Not available

15

Gravely 120383

WASHER, LOCK 7/16
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

16

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

17

Gravely 124549

KEY, WOODRUFF .187X.750 HARD
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

18

UNKNOWN

UNKNOWN

$

$

Not available
