988026 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Honda (SN: 000101 & Above) FUEL & EXHAUST SYSTEM Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Honda

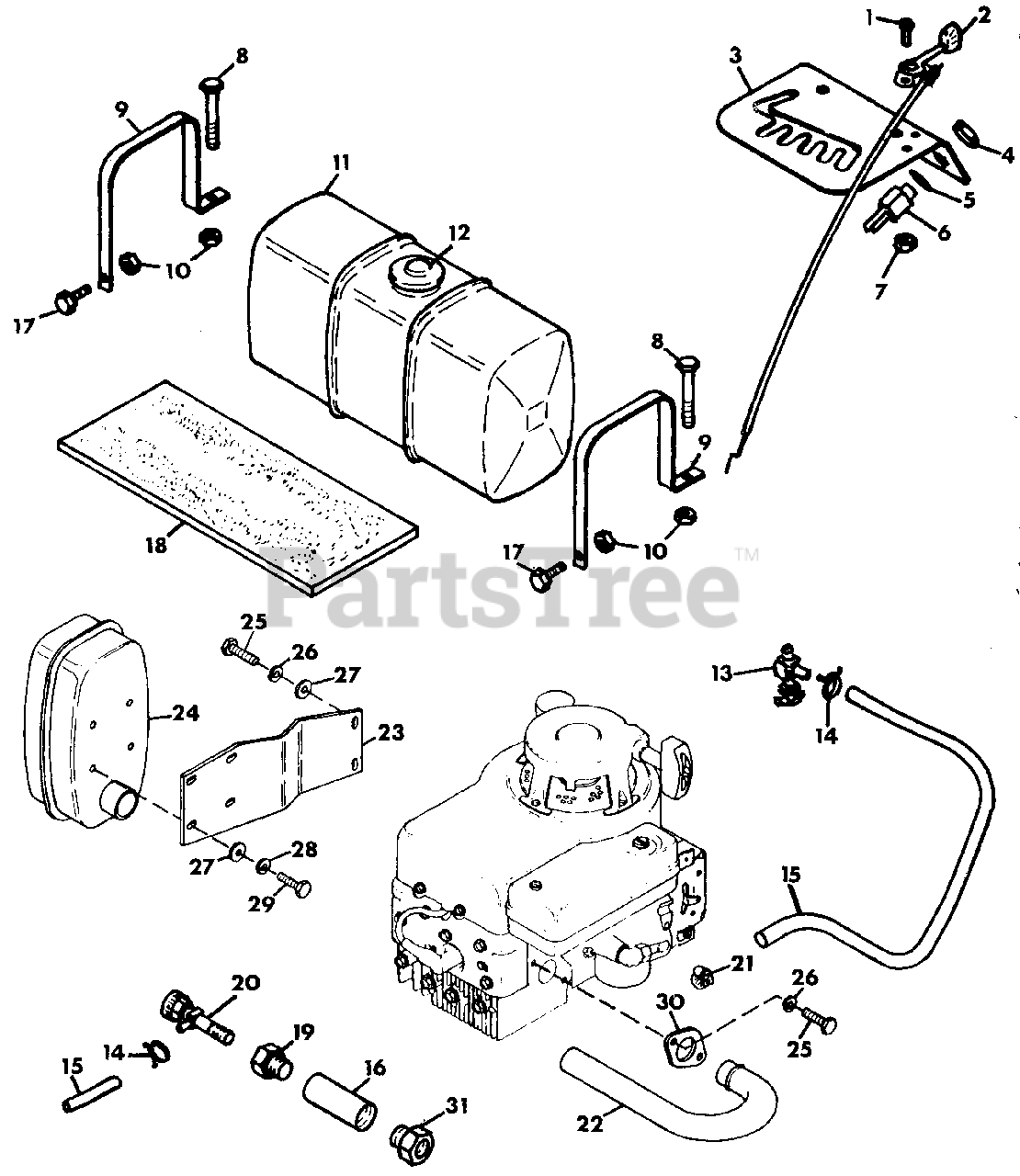

FUEL & EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 436732

SCR,MACH 10-24X1/2 PHD
(Superseded to 21070100)

$

$

Not available

2

Gravely 034371

LVR,THROTTLE CONTROL
(Superseded to 06924000)

$

$

Not available

3

Gravely 037755

PLT,SILK SCRM INSTR
(Superseded to 21243800)

$

$

Not available

4

Gravely 018585

NUT,JAM; 5/8-32
(Superseded to 21119800)

$

$

Not available

5

Gravely 018586

WSHR-LK-INT .625X.045 YWZC
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 030202

SWITCH ASSEMBLY
(Superseded to 52406900)

$39.99

$

In Stock, only 2 left!

0

7

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 180042

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05964700)

$2.49

$

In Stock, Qty 12

0

9

Gravely 034882

STRAP,FUEL TANK
(Superseded to 21234800)

$

$

Not available

10

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

11

Gravely 034861

TANK,FUEL
(Superseded to 08803951)

Note: (12 QTS.)

$

$

Not available

12

Gravely 002505

CAP,GAS TANK
(Superseded to 08860100)

$37.99

$

Usually ships in 4-12 days

0

13

Gravely 007354

VALVE & STRAINER
(Superseded to 08860200)

$

$

Not available

14

Gravely 007216

CLAMP, FUEL HOSE

$

$

Not available

15

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 144069

COUPLING,PIPE 3/8 NPT
(Superseded to 21061800)

$

$

Not available

17

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 034862

PAD,FUEL TANK
(Superseded to 20613000)

$

$

Not available

19

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

20

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

21

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

22

UNKNOWN

$

$

Not available

23

UNKNOWN

$

$

Not available

24

UNKNOWN

$

$

Not available

25

UNKNOWN

$

$

Not available

26

UNKNOWN

$

$

Not available

27

UNKNOWN

$

$

Not available

28

UNKNOWN

$

$

Not available

29

UNKNOWN

$

$

Not available

30

UNKNOWN

$

$

Not available

31

Gravely 035309

EXT,OIL DRAIN
(Superseded to 20621700)

$

$

Not available
