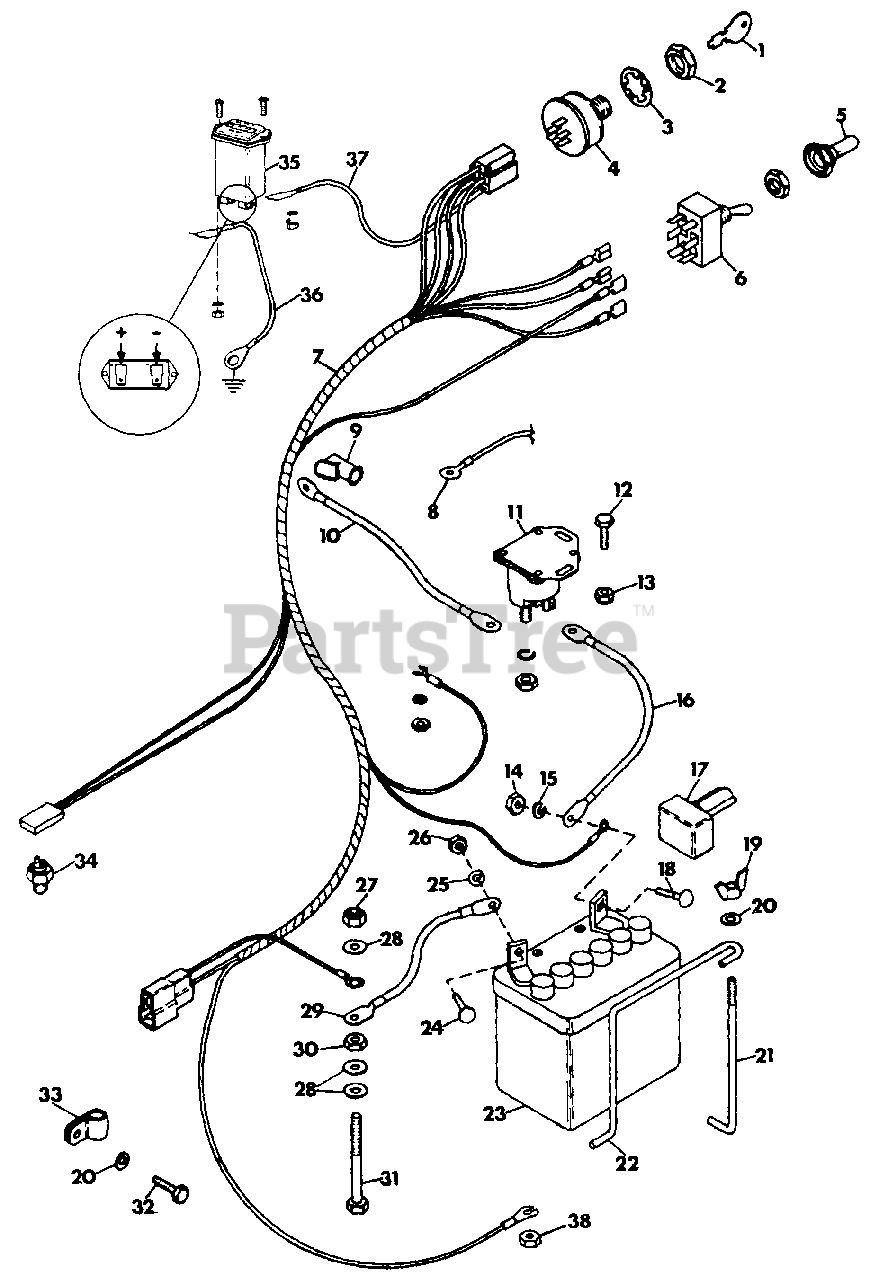

988032 - Gravely Pro Walk-Behind Mower Power Unit, 18hp Briggs & Stratton (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro Walk-Behind Mower Power Unit, 18hp Briggs & Stratton

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 018570

KEY, IGNITION SWITCH
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

2

Gravely 019666

NUT, JAM 9/16-24
(Superseded to 20287700)

$3.99

$

In Stock, only 1 left!

0

3

Gravely 019667

WASHER, LOCK
(Superseded to 06310900)

$2.49

$

In Stock, only 4 left!

0

4

Gravely 020564

SWITCH, IGNITION
(Superseded to 53507600)

$62.99

$

In Stock, only 1 left!

0

5

Gravely 035136

BOOT, TOGGLE SWITCH
(Superseded to 20619400)

$

$

Not available

6

Gravely 035135

SWITCH, TOGGLE
(Superseded to 20619300)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 035142

HARNESS, WIRING MAIN
(Superseded to 20619800)

$

$

Not available

8

Gravely 035378

TERMINAL, RING TONGUE
(Superseded to 08805800)

$

$

Not available

9

Gravely 033847

BOOT, BATTERY CABLE
(Superseded to 03384700)

$

$

Not available

10

Gravely 035141

CABLE, SOLENOID TO STARTER
(Superseded to 08805700)

$

$

Not available

11

Gravely 007277

SWITCH, MAGNETIC
(Superseded to 20031900)

$51.99

$

In Stock, only 3 left!

0

12

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

13

Gravely 011676

NUT, SPEED 1/4-20
(Superseded to 07016800)

$

$

Not available

14

Gravely 417954

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

15

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 035140

CABLE, BATTERY TO SOLENOID
(Superseded to 20619700)

$

$

Not available

17

Gravely 033846

BOOT, BATTERY CABLE
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 126211

BOLT, 5/16-18X.625 RD HD SQ NK
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 010413

NUT, WING 1/4-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 9

0

20

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

21

Gravely 035134

HOOK, BATTERY HOLD DOWN
(Superseded to 21261500)

$

$

Not available

22

Gravely 035133

BRACKET, BATTERY HOLD DOWN
(Superseded to 20619100)

$

$

Not available

23

Gravely 030610

BATTERY, 12 VOLT

$

$

Not available

24

Gravely 126203

BOLT, 1/4-20X.625 RD HD SQ NK
(Superseded to 06213800)

$

$

Not available

25

Gravely 120380

WASHER, LOCK 1/4
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

26

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

27

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

28

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

29

Gravely 035138

CABLE, NEGATIVE BATTERY
(Superseded to 20619500)

$

$

Not available

30

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

31

Gravely 180087

BOLT, HEX 5/16-18X2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 14

0

32

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

33

Gravely 027122

CLAMP
(Superseded to 06907200)

$

$

Not available

34

Gravely 034640

SWITCH, NEUTRAL START
(Superseded to 08803700)

$34.99

$

In Stock, only 3 left!

0

35

Gravely 038256

HOURMETER
(Superseded to 09497400)

$22.99

$

In Stock, only 2 left!

0

36

Gravely 021425

WIRE, INSTRUMENT PANEL
(Superseded to 08801600)

$

$

Not available

37

Gravely 037756

WIRE, HOURMETER
(Superseded to 20636700)

$

$

Not available

38

Gravely 120622

NUT, HEX 8-32
(Superseded to 21050700)

$

$

Not available
