988033 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Honda (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Honda

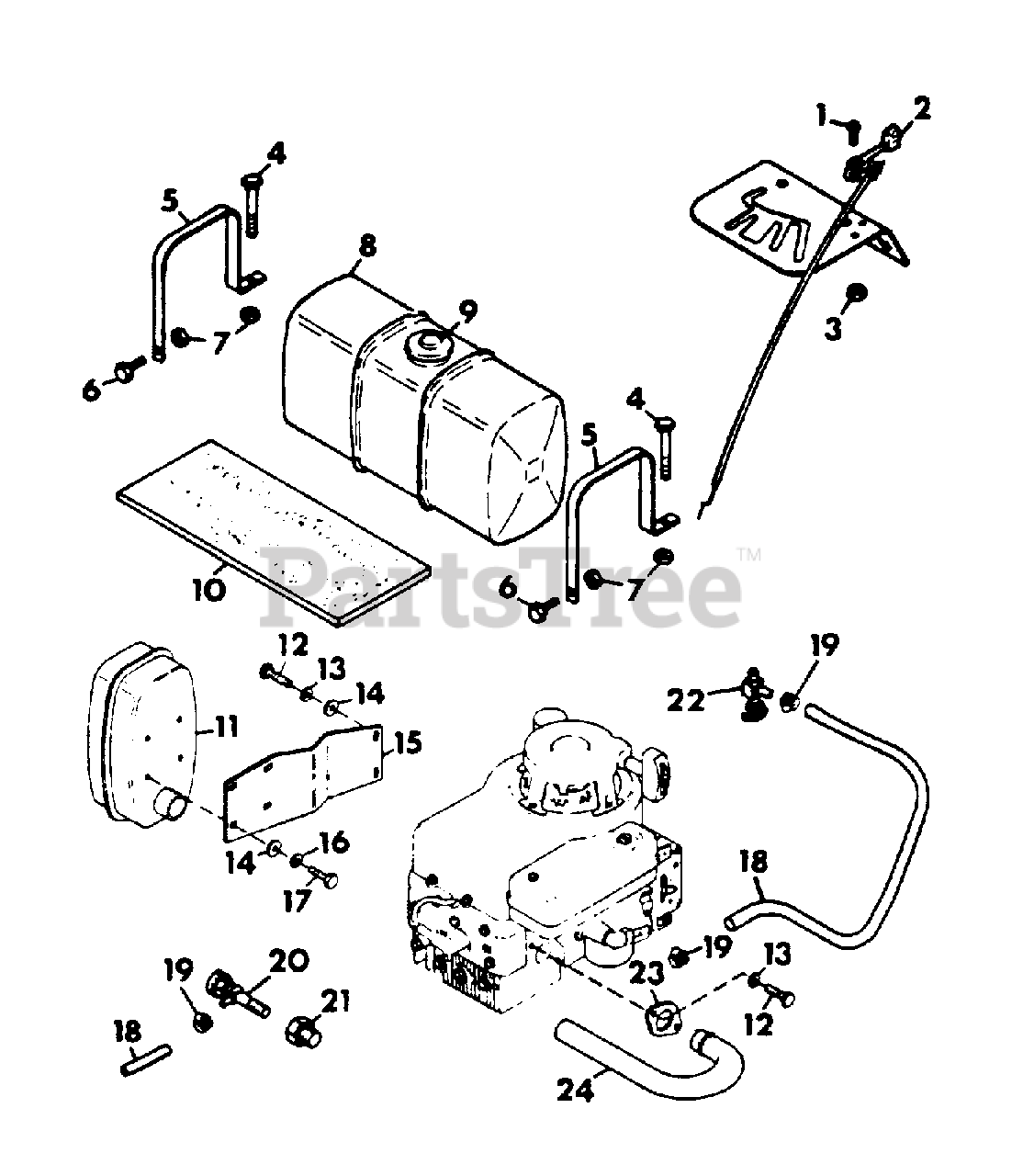

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 436732

SCR,MACH 10-24X1/2 PHD
(Superseded to 21070100)

$

$

Not available

2

Gravely 034371

LVR,THROTTLE CONTROL
(Superseded to 06924000)

$

$

Not available

3

Gravely 190254

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 180042

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05964700)

$2.49

$

In Stock, Qty 12

0

5

Gravely 034882

STRAP,FUEL TANK
(Superseded to 21234800)

$

$

Not available

6

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

8

Gravely 034861

TANK,FUEL
(Superseded to 08803951)

Note: (12 QTS.)

$

$

Not available

9

Gravely 002505

CAP,GAS TANK
(Superseded to 08860100)

$37.99

$

Usually ships in 4-12 days

0

10

Gravely 034862

PAD,FUEL TANK
(Superseded to 20613000)

$

$

Not available

11

UNKNOWN

$

$

Not available

12

UNKNOWN

$

$

Not available

13

UNKNOWN

$

$

Not available

14

UNKNOWN

$

$

Not available

15

UNKNOWN

$

$

Not available

16

UNKNOWN

$

$

Not available

17

UNKNOWN

$

$

Not available

18

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

20

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

21

Gravely 035332

ADPT,OIL DRAIN
(Superseded to 20622200)

$

$

Not available

22

Gravely 007354

VALVE & STRAINER
(Superseded to 08860200)

$

$

Not available

23

UNKNOWN

$

$

Not available

24

UNKNOWN

$

$

Not available
