988034 - Gravely Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) Transmission Parts Diagram

Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

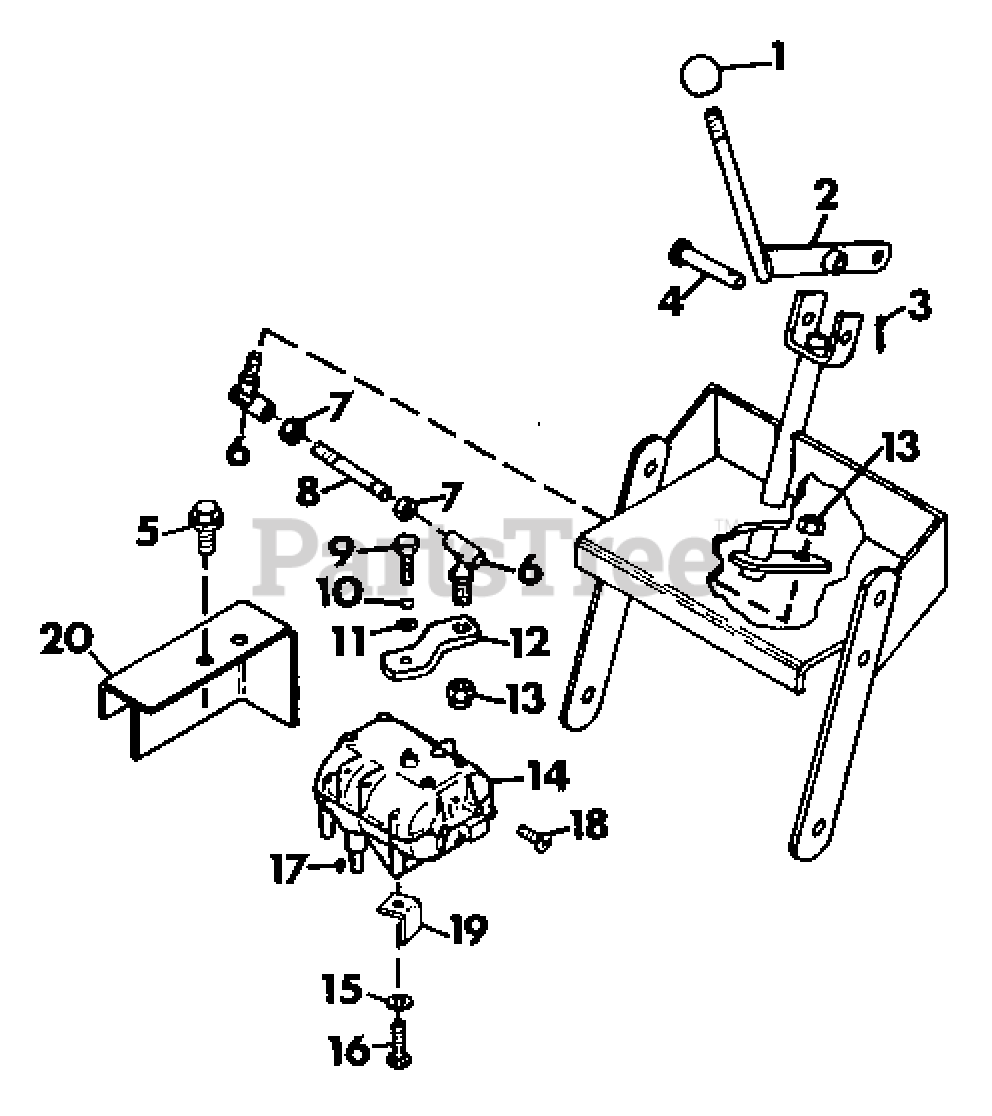

Transmission Parts Diagram

  • Title

1

Gravely 011261

KNOB,ADJ. CONTROL
(Superseded to 20069800)

$23.99

$

Usually ships in 4-12 days

0

2

Gravely 034410

WLDMT,SHIFT LEVER
(Superseded to 21227800)

$

$

Not available

3

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

4

Gravely 034632

PIN,CLEVIS
(Superseded to 20605400)

$

$

Not available

5

Gravely 034357

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 14

0

6

Gravely 032352

BALL,JOINT DISCONNECTING
(Superseded to 08802500)

$

$

Not available

7

Gravely 120367

NUT-HEX .250-28 YWZC
(Superseded to 06500400)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 034635

ROD,TRANS. SHIFTING
(Superseded to 20605600)

$

$

Not available

9

Gravely 181561

BLT-HEX .25-28X.50
(Superseded to 05936600)

$

$

Not available

10

Gravely 120380

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

11

Gravely 422845

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 034418

ARM,TRANS. SHIFT
(Superseded to 08863751)

$

$

Not available

13

Gravely 416430

NUT-LK-CTR .250-28 YWZC
(Superseded to 06533400)

$2.49

$

In Stock, Qty 10

0

14

Gravely 040544

TRANS,PRO LINE
(Superseded to 08870600)

$735.99

$

Usually ships in 4-12 days

0

15

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 124549

KEY-WDRF .19X.75 HRD #9
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 167260

SCR-TAP .250-20X.625 P/HD
(Superseded to 07410400)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 034329

GD,V-BELT
(Superseded to 08803200)

$

$

Not available

20

Gravely 034891

GRD,TRANSMISSION CHAIN
(Superseded to 21235400)

$

$

Not available
