988034 - Gravely Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) WHEEL DRIVE Parts Diagram

Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

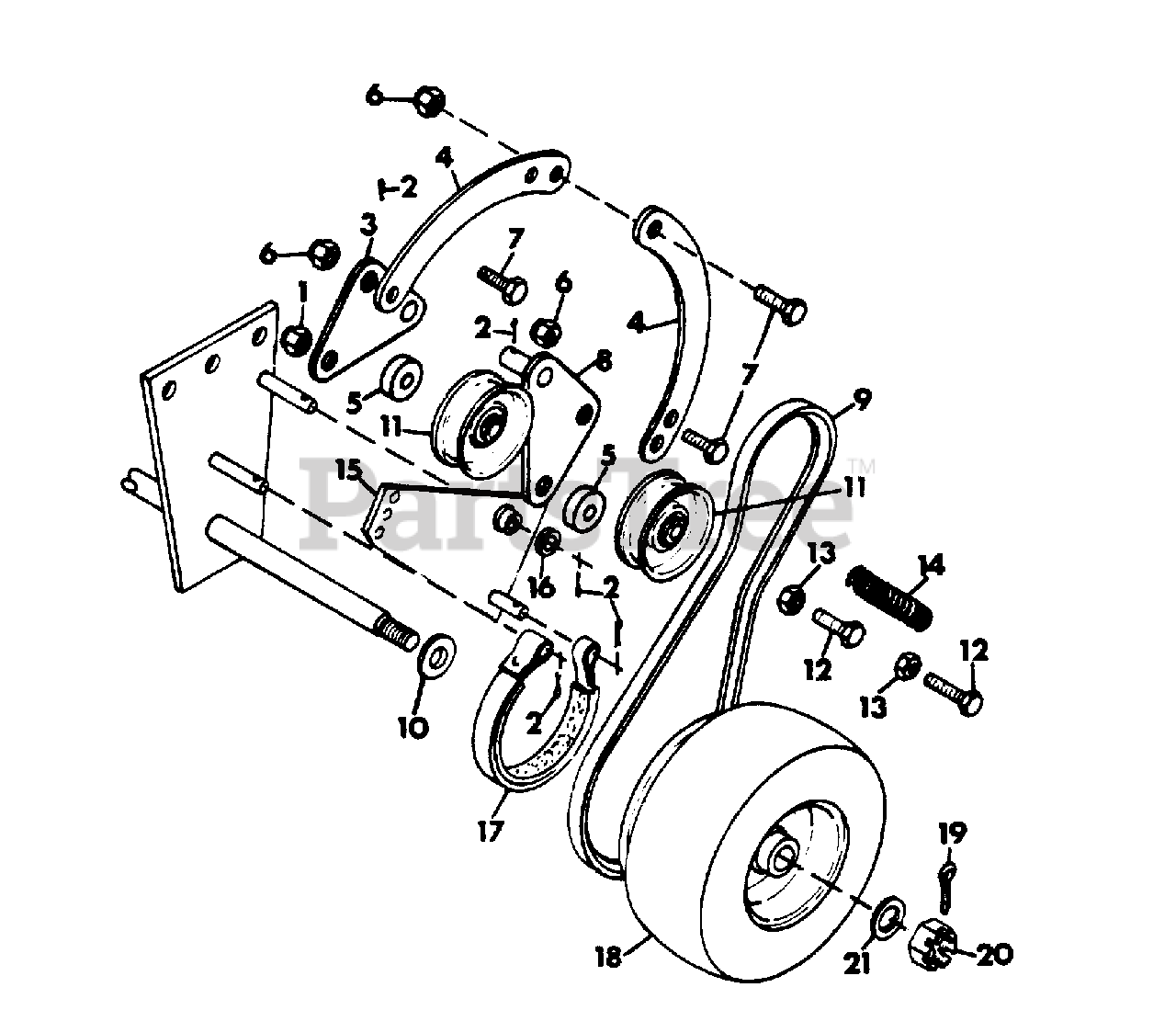

WHEEL DRIVE Parts Diagram

  • Title

1

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

3

Gravely 035128

WLDMT,WHEEL CLUTCH L.H.
(Superseded to 21237500)

$

$

Not available

4

Gravely 034387

STRAP,WHL CLUTCH ACT
(Superseded to 21226700)

$

$

Not available

5

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

6

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 180075

BLT-HEX .31-18X.63 GR5 YWZC
(Superseded to 05901832)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 034879

WLDMT,WHEEL CLUTCH R.H.
(Superseded to 21234600)

$

$

Not available

9

Gravely 034346

BELT,V DRV TRACTION WHL
(Superseded to 20600100)

$37.99

$

Usually ships in 4-12 days

0

10

Gravely 035379

BUSH.,S1.00X1.50X.310 ST
(Superseded to 20623600)

$

$

Not available

11

Gravely 027824

IDLER-FLAT 3.125X.38
(Superseded to 07317100)

$

$

Not available

12

Gravely 034402

BLT-HEX .38-16X2.0 GR5 FTD YWZ
(Superseded to 05942200)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 034400

SG-TENS .069X.62X3.50 WLD20
(Superseded to 08332000)

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 034301

WLDMT,BRAKE LEVER L.H.
(Superseded to 21261700)

$

$

Not available

15

Gravely 034302

WLDMT,BRAKE LEVER R.H.
(Superseded to 21261800)

$

$

Not available

16

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 034306

ASM,BRAKE BAND
(Superseded to 08802800)

$92.99

$

Usually ships in 4-12 days

0

17

Gravely 034307

ASM,BRAKE BAND
(Superseded to 08802900)

$

$

Not available

18

Gravely 034347

T/WHL ASSY 13X6.50-6
(Superseded to 07129800)

$

$

Not available

19

Gravely 137228

PIN-CTR .15X1.50 YWZC
(Superseded to 06713800)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 427640

NUT-SL .75-16 YWZC
(Superseded to 06538700)

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 011223

WSHR-HDND-THRST .758X1.23X.031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0
