988035 - Gravely Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) STEERING CONTROL Parts Diagram

Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

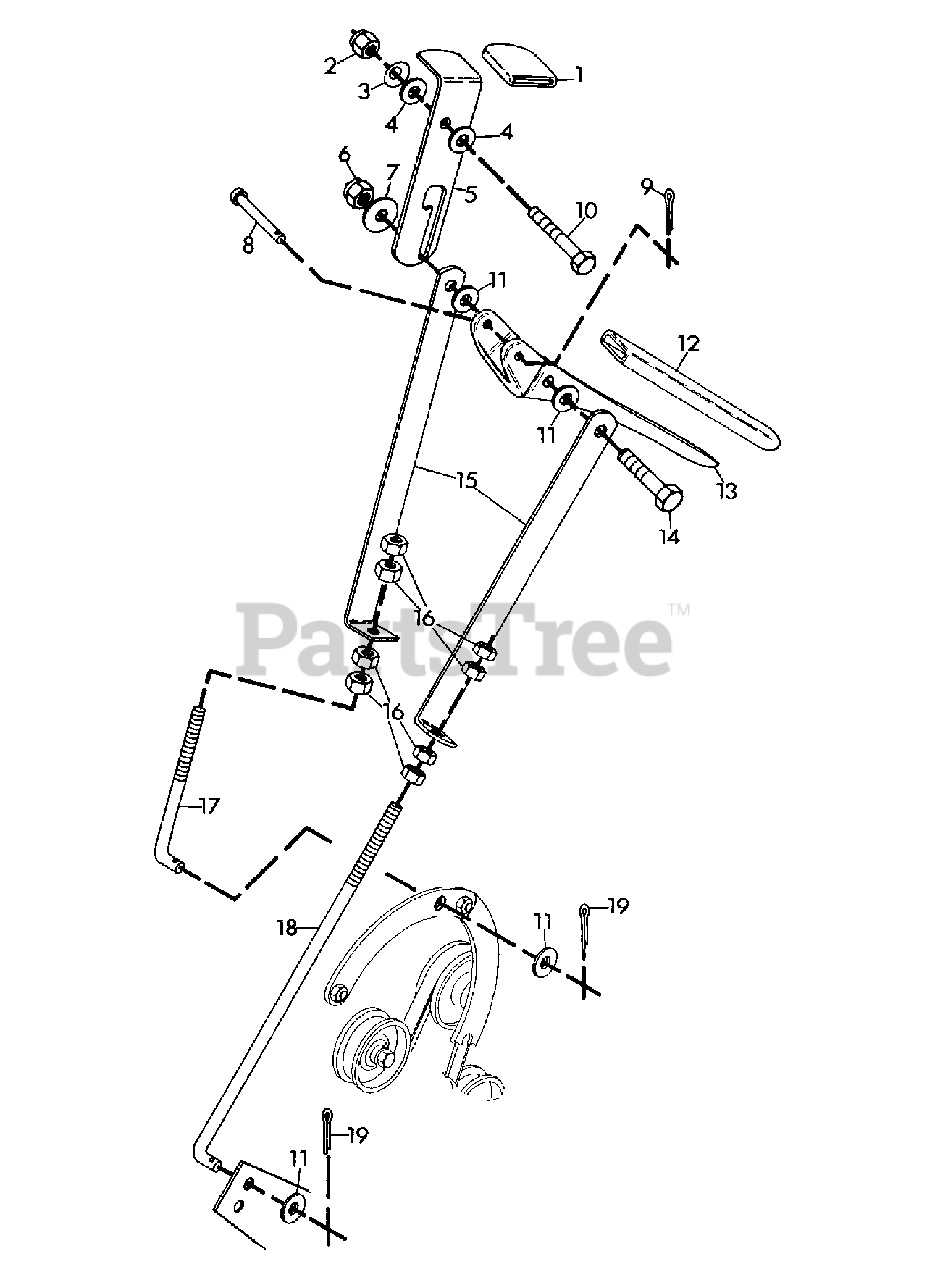

STEERING CONTROL Parts Diagram

  • Title

1

Gravely 035124

TIP,VINYL
(Superseded to 20618500)

$

$

Not available

2

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

3

Gravely 011774

SPRING WASHER
(Superseded to 03493400)

$

$

Not available

4

Gravely 011772

WSHR-FRICTION .750X.256X.100
(Superseded to 06431500)

$14.99

$

Usually ships in 4-12 days

0

5

Gravely 041813

LVR,CLUTCH-BRAKE LOCK
(Superseded to 20702600)

$

$

Not available

6

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

7

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

8

Gravely 034354

PIN,CLEVIS 3/16X1.70
(Superseded to 20600600)

$

$

Not available

9

Gravely 112726

PIN, COTTER .06X.50
(Superseded to 21049300)

$

$

Not available

10

Gravely 180042

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05964700)

$2.49

$

In Stock, Qty 12

0

11

Gravely 446363

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 035125

GRIP,HANDLE
(Superseded to 20618600)

$

$

Not available

13

Gravely 034353

LVR,HAND CLUTCH
(Superseded to 21226300)

$

$

Not available

14

Gravely 180083

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

15

Gravely 041989

STRAP,CLUTCH&BRAKE ACT
(Superseded to 21262200)

$

$

Not available

16

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

17

Gravely 041990

ROD,CLUTCH
(Superseded to 08877800)

$

$

Not available

18

Gravely 041991

ROD,BRAKE LOWER
(Superseded to 20706800)

$

$

Not available

19

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0
