988035 - Gravely Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) WHEEL Parts Diagram

Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

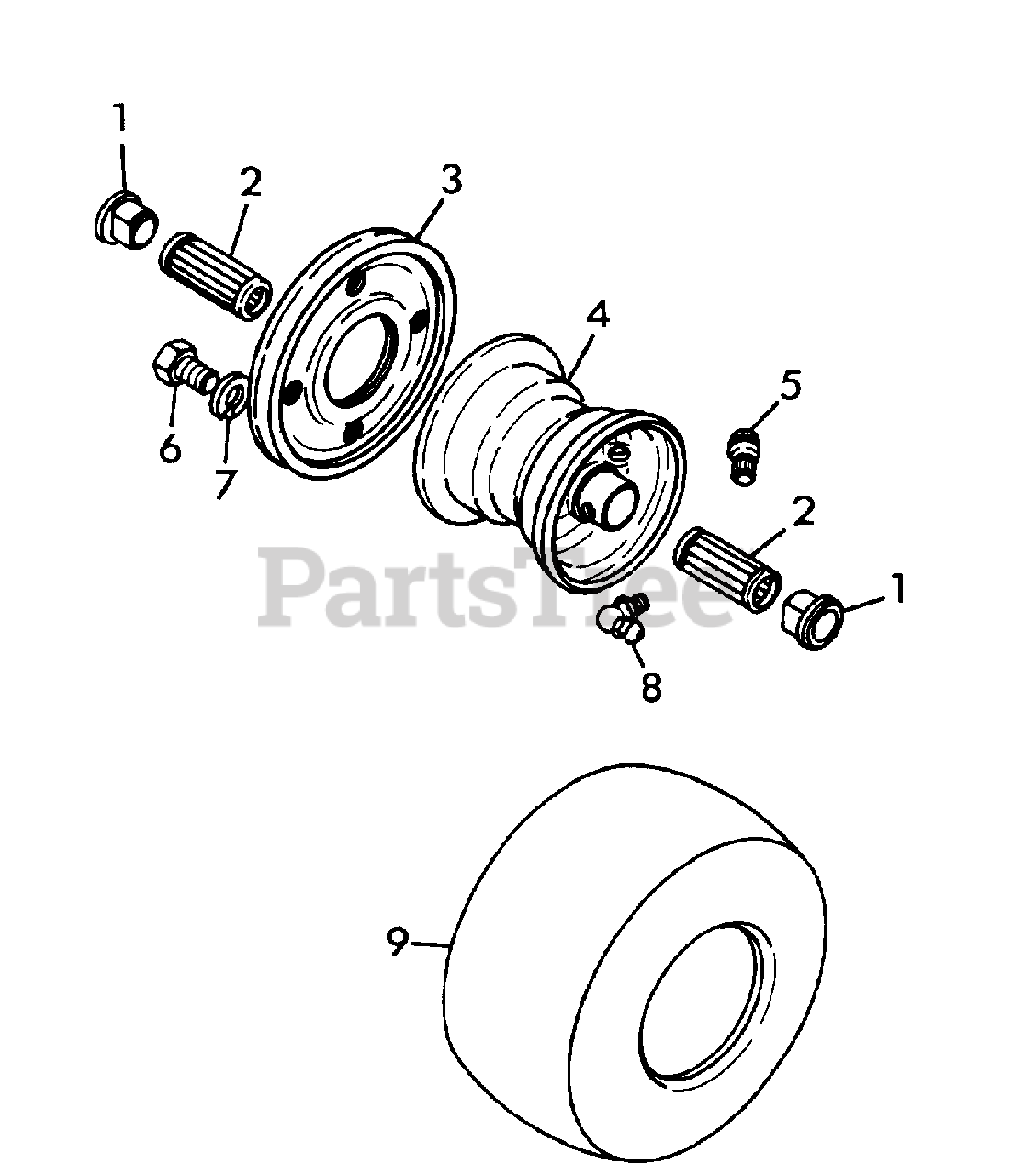

WHEEL Parts Diagram

  • Title

1

Gravely 034661

BEARING, FLANGE
(Superseded to 05520400)

$

$

Not available

2

Gravely 034660

BEARING, 7/8X2.50
(Superseded to 05423100)

$

$

Not available

3

Gravely 042271

ASSEMBLY, PULLEY AND BRAKE DRUM
(Superseded to 07129900)

$

$

Not available

4

Gravely 042272

ASSEMBLY, WHEEL
(Superseded to 21263800)

$

$

Not available

5

Gravely 011191

ASSEMBLY, VALVE STEM
(Superseded to 07520000)

$2.49

$

In Stock, Qty 7

0

6

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

7

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 411032

FITTING, LUBE 90 DEG.
(Superseded to 07012800)

$4.99

$

In Stock, Qty 5

0

9

Gravely 034663

TIRE, 13X6.50-6
(Superseded to 07134200)

$

$

Not available
