988039 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Honda (SN: 000101 & Above) FRAME Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Honda

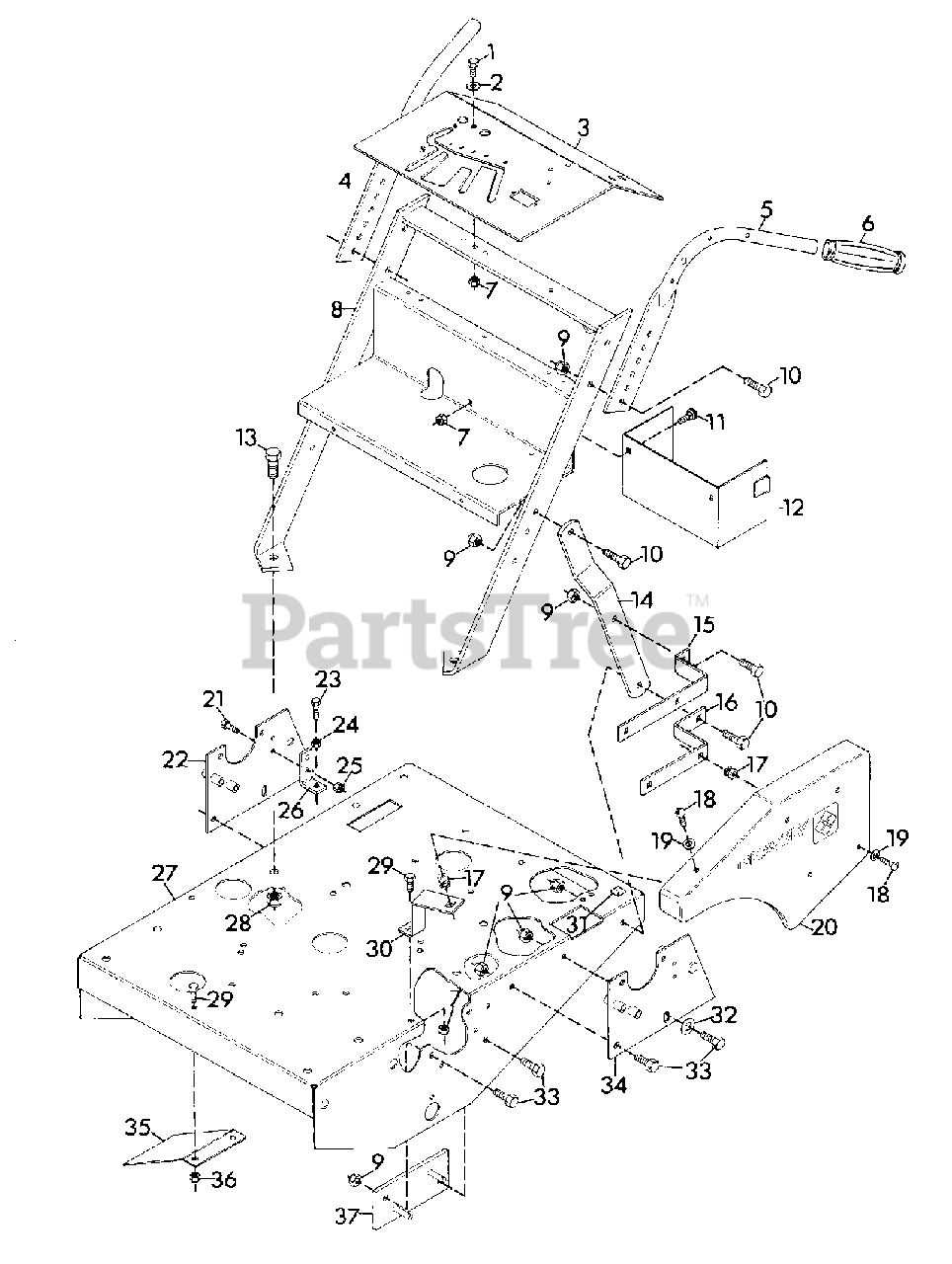

FRAME Parts Diagram

  • Title

1

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 041347

PLT,SILK SCREEN
(Superseded to 21260000)

$

$

Not available

4

Gravely 041312

HANDLEBAR, R.H.
(Superseded to 21259153)

$

$

Not available

5

Gravely 041311

HANDLEBAR, L.H.
(Superseded to 21259053)

$

$

Not available

6

Gravely 041563

GRIP,HANDLE BAR
(Superseded to 07526200)

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

8

Gravely 041306

WLDMT,HANDLEBAR SUPPORT
(Superseded to 21258800)

$

$

Not available

9

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 180175

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

14

Gravely 034878

BR,HANDLEBAR SUPPORT
(Superseded to 08804000)

$

$

Not available

15

Gravely 037799

BRKT,TOP
(Superseded to 20637000)

$

$

Not available

16

Gravely 037800

BRKT,BOTTOM
(Superseded to 20637100)

$

$

Not available

17

Gravely 011777

GRMT,PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 160536

SCR-MCH .25-20X.625 RDHD
(Superseded to 06113400)

$

$

Not available

19

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 037804

GRD, BELT L.H.
(Superseded to 20637300)

$

$

Not available

20

Gravely 037803

GRD, BELT R.H.
(Superseded to 20637200)

$

$

Not available

21

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 041281

WLDMT,BEARING SUPPORT RH
(Superseded to 08812300)

$

$

Not available

23

Gravely 180022

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

24

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

25

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

26

Gravely 040757

BRKT
(Superseded to 08811800)

$

$

Not available

27

Gravely 041274

FRM,PRO
(Superseded to 21258200)

$

$

Not available

28

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

29

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 037802

SPRT,FRONT L.H.
(Superseded to 21244300)

$

$

Not available

30

Gravely 037801

SPRT,FRONT R.H.
(Superseded to 21244200)

$

$

Not available

31

Gravely 040176

STOP
(Superseded to 07525100)

$2.49

$

In Stock, only 3 left!

0

32

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 041280

WLDMT,BEARING SUPPORT LH
(Superseded to 08812200)

$

$

Not available

35

UNKNOWN

$

$

Not available

36

UNKNOWN

$

$

Not available

37

Gravely 041275

WLDMT,BRAKE PIN PLATE LH
(Superseded to 21258300)

$

$

Not available

37

Gravely 041276

WLDMT,BRAKE PIN PLATE RH
(Superseded to 21258400)

$

$

Not available

NS

Gravely 040046

G - DECAL - MADE IN AMERICA
(Superseded to 03327700)

$

$

Not available
