988039 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Honda (SN: 000101 & Above) WHEEL DRIVE Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Honda

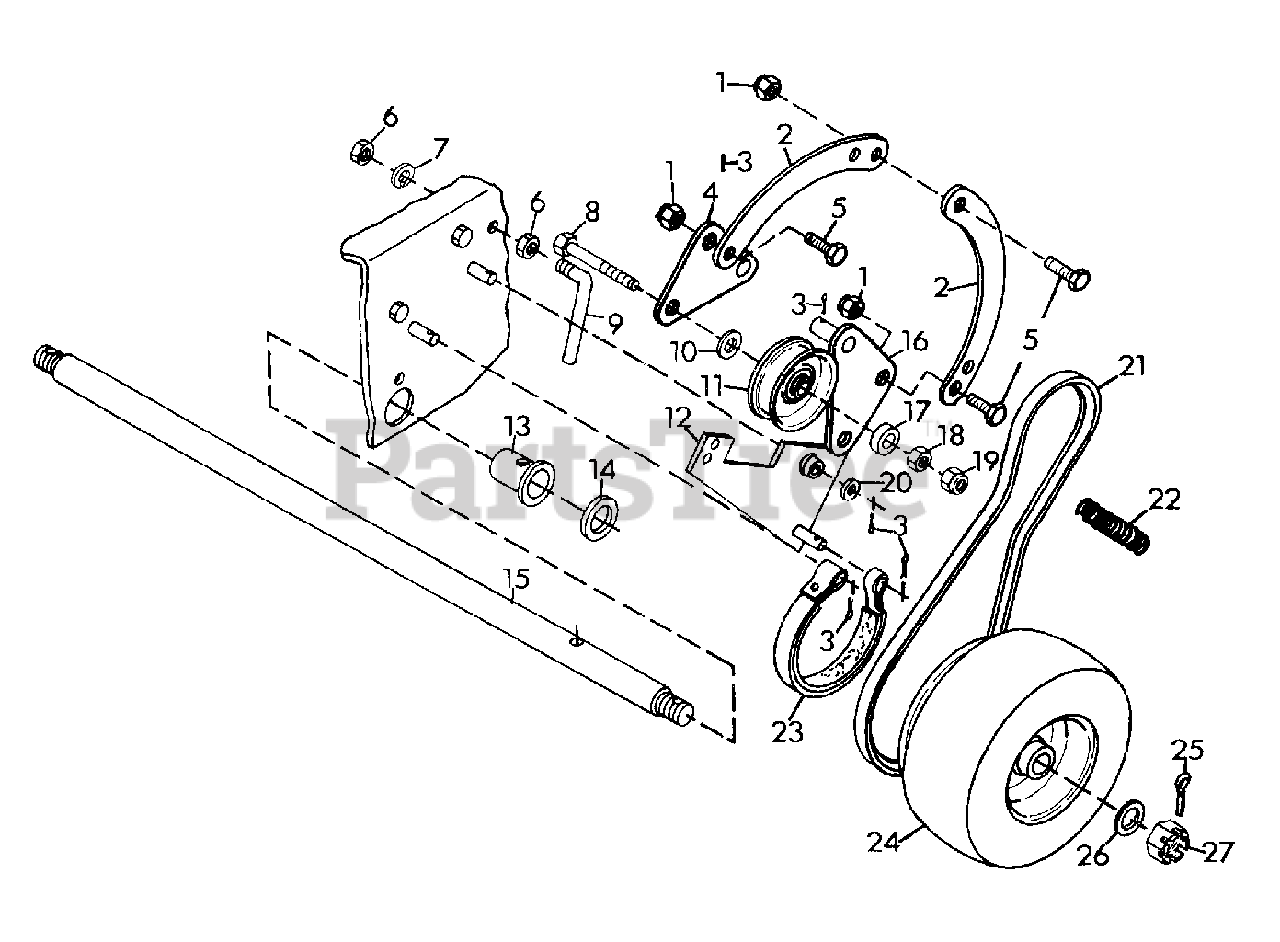

WHEEL DRIVE Parts Diagram

  • Title

1

Gravely 413447

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 034387

STRAP,WHL CLUTCH ACT
(Superseded to 21226700)

$

$

Not available

3

Gravely 137185

PIN-CTR .12X1.00 EXTPRSQCT YZ
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

4

Gravely 035128

WLDMT,WHEEL CLUTCH L.H.
(Superseded to 21237500)

$

$

Not available

5

Gravely 180075

BLT-HEX .31-18X.63 GR5 YWZC
(Superseded to 05901832)

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

7

Gravely 120380

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

8

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 041355

ROD,PULLEY CLEANING
(Superseded to 08876300)

$

$

Not available

10

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 027824

IDLER-FLAT 3.125X.38
(Superseded to 07317100)

$

$

Not available

12

Gravely 041811

WLDMT,BRAKE LEVER L.H.
(Superseded to 21261700)

$

$

Not available

12

Gravely 041812

WLDMT,BRAKE LEVER R.H.
(Superseded to 21261800)

$

$

Not available

13

Gravely 041687

BSHG-FLG .885X1.500X1.400X1.50
(Superseded to 05518300)

$

$

Not available

14

Gravely 041686

WSHR-FL-STL 1.0X1.50X.25
(Superseded to 06425600)

$6.49

$

In Stock, Qty 10

0

15

Gravely 041317

SHFT,AXLE
(Superseded to 08813300)

$

$

Not available

16

Gravely 034879

WLDMT,WHEEL CLUTCH R.H.
(Superseded to 21234600)

$

$

Not available

17

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

18

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 041599

V-BELT, HB-COGGED (SET)
(Superseded to 07220700)

$131.99

$

Usually ships in 4-12 days

0

22

Gravely 034400

SG-TENS .069X.62X3.50 WLD20
(Superseded to 08332000)

$11.99

$

In Stock, only 2 left!

0

23

Gravely 034306

ASM,BRAKE BAND
(Superseded to 08802800)

$92.99

$

Usually ships in 4-12 days

0

23

Gravely 034307

ASM,BRAKE BAND
(Superseded to 08802900)

$

$

Not available

24

Gravely 042270

T/WHL ASSY 13X6.50-6
(Superseded to 07129800)

$

$

Not available

25

Gravely 137228

PIN-CTR .15X1.50 YWZC
(Superseded to 06713800)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 423315

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 427640

NUT-SL .75-16 YWZC
(Superseded to 06538700)

$6.99

$

Usually ships in 4-12 days

0
