988047 - Gravely Pro Walk-Behind Mower Power Unit, 12hp Briggs & Stratton (SN: 000101 & Above) STEERING CONTROL Parts Diagram

Pro Walk-Behind Mower Power Unit, 12hp Briggs & Stratton

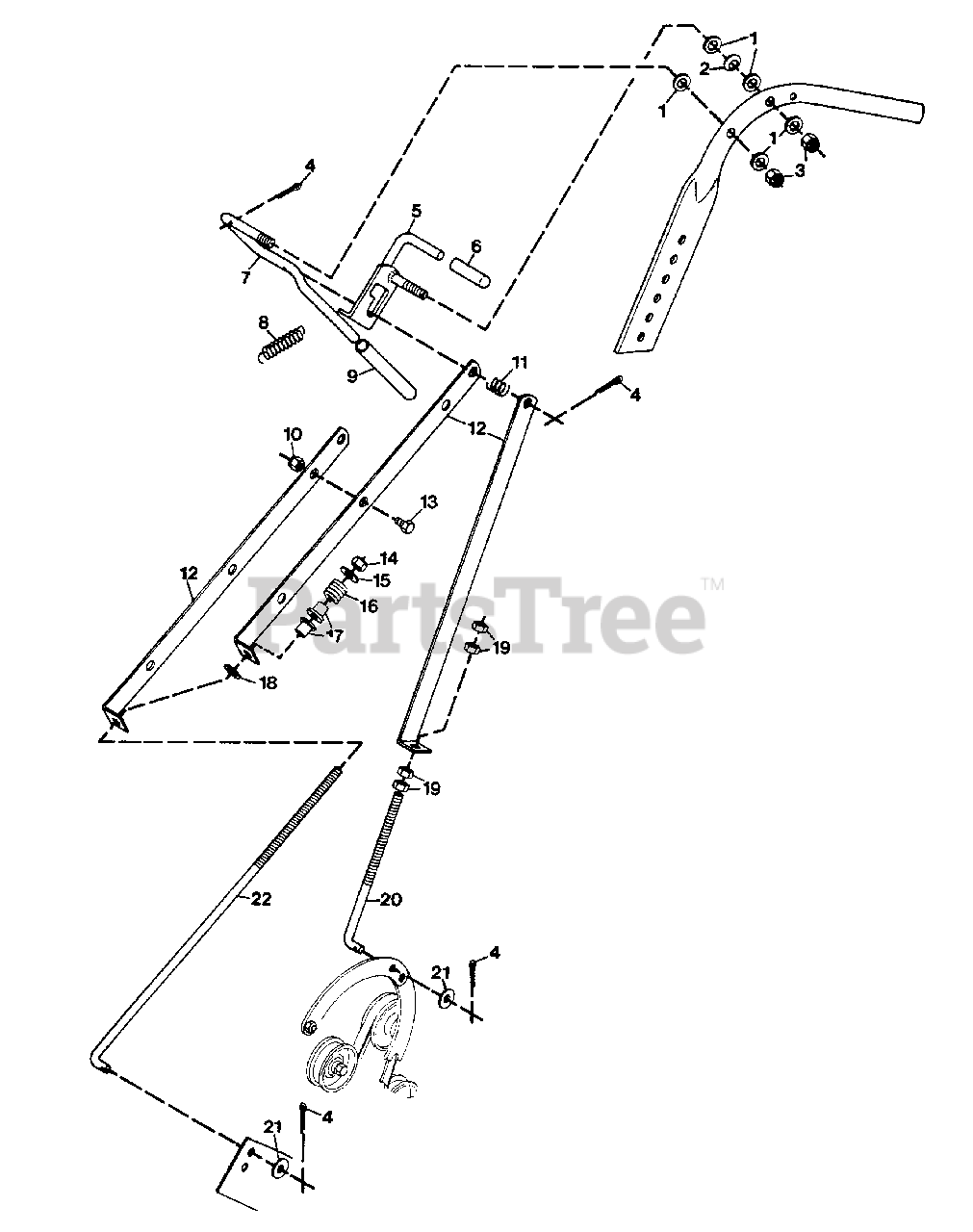

STEERING CONTROL Parts Diagram

  • Title

1

Gravely 020775

WASHER, NYLON .375X.75.06
(Superseded to 06433600)

$0.99

$

In Stock, Qty 10

0

2

Gravely 041623

WASHER, SPRING .375 I.D.
(Superseded to 06433000)

$

$

Not available

3

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

5

Gravely 042990

WELDMENT, CLUTCH BRAKE
(Superseded to 08820600)

$

$

Not available

6

Gravely 043192

TIP, BRAKE LOCK LEVER
(Superseded to 07503800)

$1.99

$

In Stock, only 4 left!

0

7

Gravely 047345

LEVER, HAND CLUTCH
(Superseded to 08829700)

$

$

Not available

8

Gravely 043446

SPRING, EXTENSION
(Superseded to 08339300)

$6.49

$

In Stock, Qty 12

0

9

Gravely 043197

GRIP, HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

11

Gravely 043193

SPRING, COMPRESSION
(Superseded to 08338800)

$7.49

$

In Stock, only 2 left!

0

12

Gravely 042992

STRAP, CLUTCH-BRAKE
(Superseded to 08820800)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 180016

BOLT, HEX 1/4-20X.50
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

14

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 011779

SPRING, COMP. 1X.78X338
(Superseded to 08327000)

$16.99

$

In Stock, only 4 left!

0

17

Gravely 045789

BUSHING, NYLON .32X.437X.204
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0

18

Gravely 044478

RING, CIRCULAR PUSH-ON
(Superseded to 05715300)

$

$

Not available

19

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 9

0

20

Gravely 044096

ROD, CLUTCH
(Superseded to 08877800)

$

$

Not available

21

Gravely 446470

WASHER, FLAT .375X1.125X.065
(Superseded to 06401139)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 043444

ROD, BRAKE LOWER
(Superseded to 08877600)

$110.99

$

Usually ships in 4-12 days

0
