988050 - Gravely Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Pro Walk-Behind Mower Power Unit, 11hp Briggs & Stratton

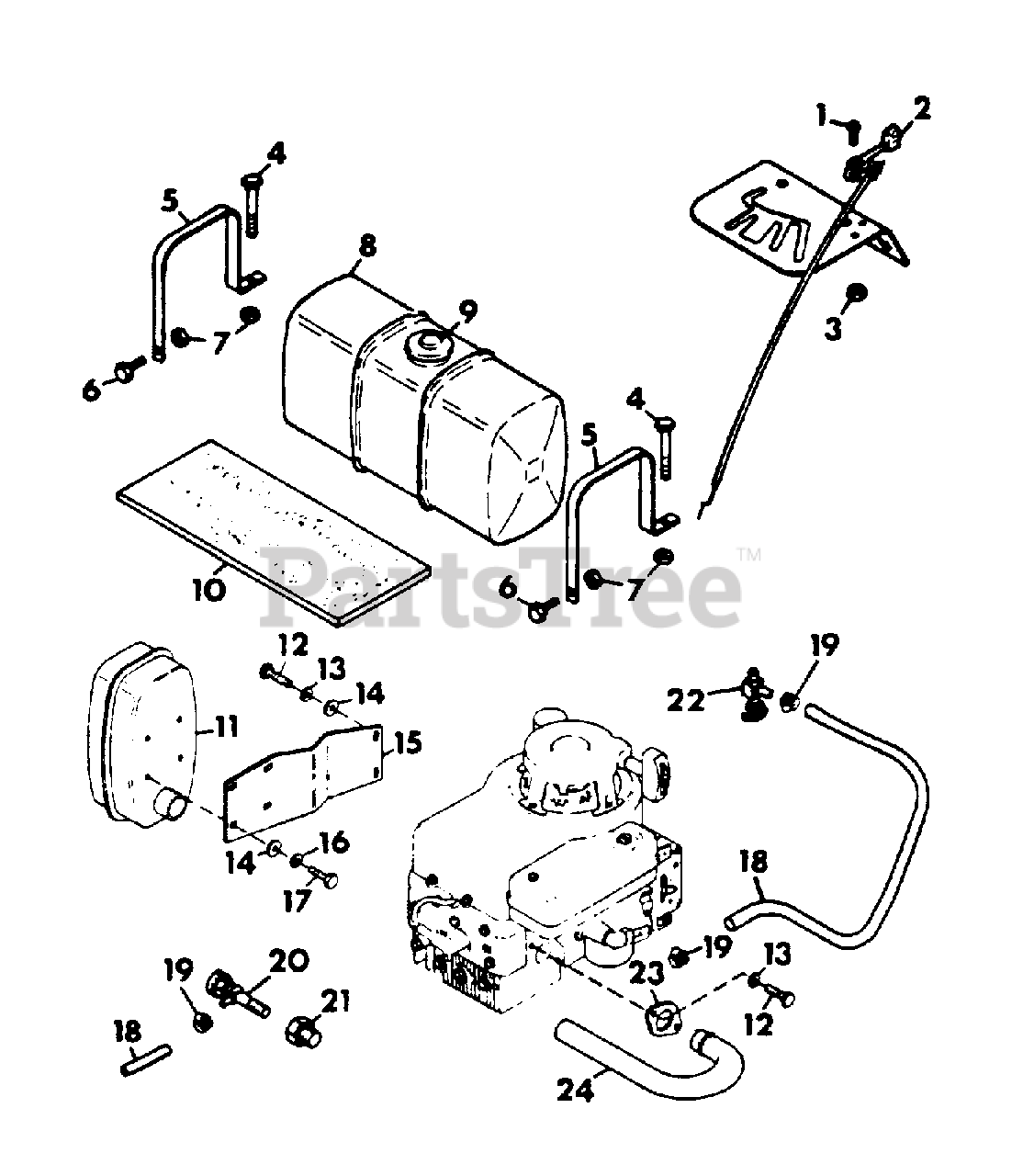

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 436732

SCREW, MACH. 10-24X.50 PHD
(Superseded to 21070100)

$

$

Not available

2

Gravely 034371

LEVER, THROTTLE CONTROL
(Superseded to 06924000)

$

$

Not available

3

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

4

Gravely 180042

BOLT, HEX 1/4-20X1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 034882

STRAP, FUEL TANK
(Superseded to 21234800)

$

$

Not available

6

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

7

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

8

Gravely 034861

TANK, FUEL (12 QTS.)
(Superseded to 08803951)

Note: (12 QTS.)

$

$

Not available

9

Gravely 002505

CAP, FUEL TANK
(Superseded to 08860100)

$35.99

$

Usually ships in 4-12 days

0

10

Gravely 034862

PAD, FUEL TANK
(Superseded to 20613000)

$

$

Not available

11

Gravely 037805

MUFFLER, 11 H.P. B & S
(Superseded to 21367400)

$

$

Not available

12

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

13

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

15

Gravely 037732

PLATE, EXHAUST
(Superseded to 08806900)

$

$

Not available

16

Gravely 120380

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

17

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

18

Gravely 021134

HOSE, FUEL
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

20

Gravely 035329

COCK, OIL DRAIN
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

21

Gravely 035328

ADAPTOR, OIL DRAIN
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 007354

VALVE AND STRAINER
(Superseded to 08860200)

$17.99

$

In Stock, only 3 left!

0

23

Gravely 037796

FLANGE, MUFFLER
(Superseded to 08807000)

$

$

Not available

24

Gravely 037731

TUBE, EXHAUST
(Superseded to 08806800)

$

$

Not available
