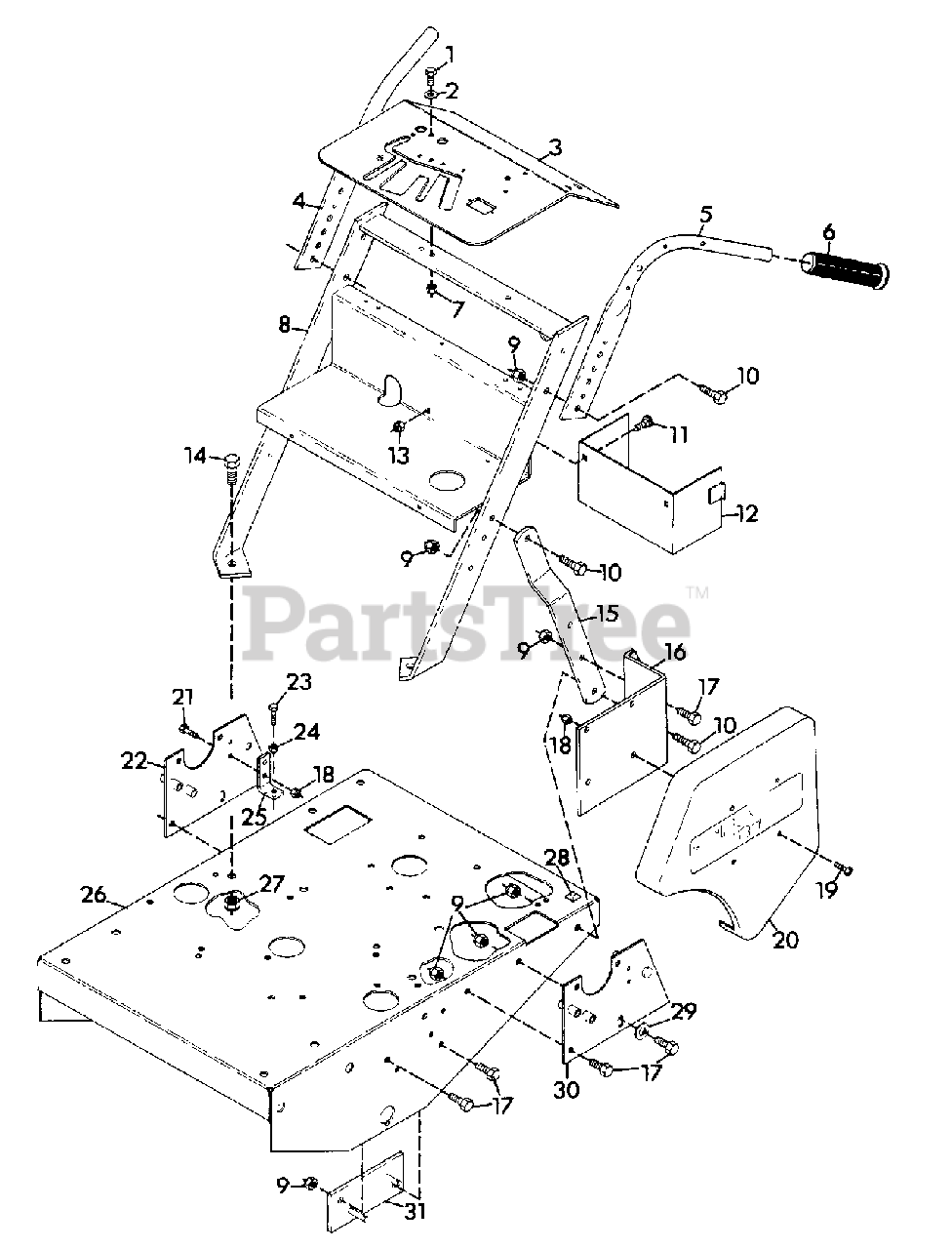

988054 - Gravely Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) FRAME Parts Diagram

Pro Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

FRAME Parts Diagram

  • Title

1

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.99

$

In Stock, Qty 6

0

2

Gravely 120393

WASHER, FLAT .344X.688.X065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 043216

PLATE, SILK SCREEN
(Superseded to 08830000)

$

$

Not available

4

Gravely 044541

HANDLEBAR, R.H.
(Superseded to 21268853)

$

$

Not available

5

Gravely 044540

HANDLEBAR, L.H.
(Superseded to 21268753)

$

$

Not available

6

Gravely 041563

GRIP, HANDLEBAR
(Superseded to 07526200)

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 042982

WELDMENT, HANDLEBAR SUPPORT
(Superseded to 08820153)

$

$

Not available

9

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.99

$

In Stock, only 1 left!

0

11

Gravely 126211

BOLT, 5/16-18X.625 RD HD SQ NK
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 041313

WELDMENT, BATTERY BOX
(Superseded to 08754100)

$

$

Not available

13

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, Qty 8

0

15

Gravely 034878

BRACE, HANDLEBAR SUPPORT
(Superseded to 08804000)

$

$

Not available

16

Gravely 043189

BRACKET, BELT GUARD L.H.
(Superseded to 08820900)

$

$

Not available

16

Gravely 043190

BRACKET, BELT GUARD R.H.
(Superseded to 08821000)

$

$

Not available

17

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

19

Gravely 160536

SCREW, MACHINE 1/4-20X.625 RD HD
(Superseded to 06113400)

$

$

Not available

20

Gravely 043447

GUARD, BELT L.H.
(Superseded to 08868000)

$

$

Not available

20

Gravely 043448

GUARD, BELT R.H.
(Superseded to 08868100)

$

$

Not available

21

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$2.49

$

In Stock, only 1 left!

0

22

Gravely 041281

WELDMENT, BEARING SUPPORT R.H.
(Superseded to 08812300)

$

$

Not available

23

Gravely 180022

BOLT, HEX 1/4-20X1.00
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

24

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

25

Gravely 040757

BRACKET
(Superseded to 08811800)

$

$

Not available

26

Gravely 043200

FRAME, PRO

$

$

Not available

27

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 040176

STOP
(Superseded to 07525100)

$2.49

$

Usually ships in 4-12 days

0

29

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 041280

WELDMENT, BEARING SUPPORT L.H.
(Superseded to 08812200)

$

$

Not available

31

Gravely 043472

WELDMENT, BRAKE PIN PLATE L.H.
(Superseded to 08822700)

$26.99

$

Usually ships in 4-12 days

0

31

Gravely 043471

WELDMENT, BRAKE PIN PLATE R.H.
(Superseded to 08822600)

$

$

Not available

NS

Gravely 040046

DECAL, AMERICA
(Superseded to 03327700)

$

$

Not available
