988055 - Gravely Pro Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) STEERING CONTROL Parts Diagram

Pro Walk-Behind Mower Power Unit, 18hp Kohler

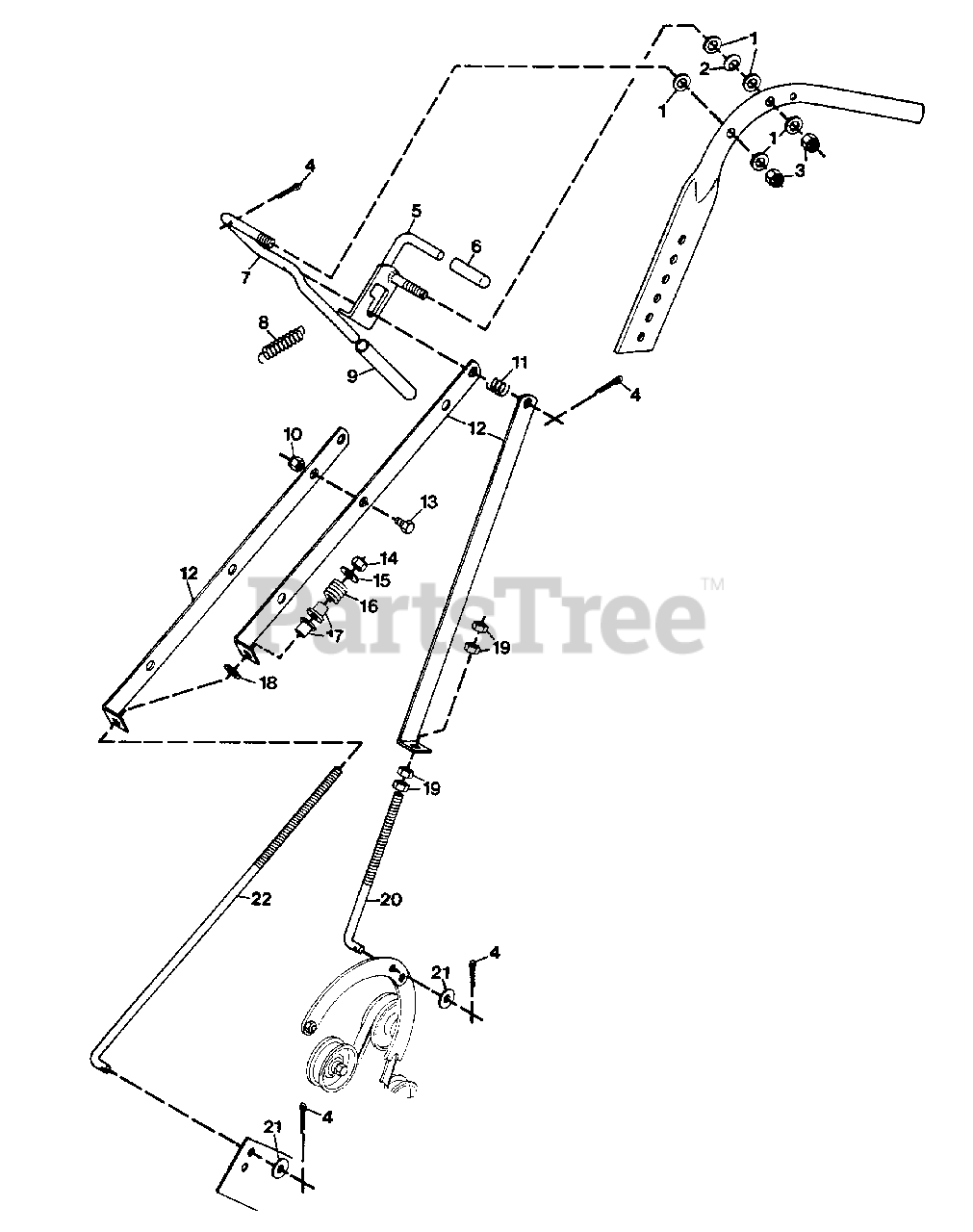

STEERING CONTROL Parts Diagram

  • Title

1

Gravely 020775

WSHR-FL-NY .375X.75X.060
(Superseded to 06433600)

$0.99

$

In Stock, only 4 left!

0

2

Gravely 041623

WSHR-SG .375 ID
(Superseded to 06433000)

$

$

Not available

3

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

5

Gravely 042990

WLDMT,CLUTCH-BRAKE LOCK
(Superseded to 08820600)

$

$

Not available

6

Gravely 043192

TIP - BRAKE LOCK LEVER
(Superseded to 07503800)

$1.99

$

In Stock, only 2 left!

0

7

Gravely 047345

LVR,HAND CLUTCH
(Superseded to 08829700)

$

$

Not available

8

Gravely 043446

SG-TENS .041X.500X1.750
(Superseded to 08339300)

$6.49

$

In Stock, Qty 5

0

9

Gravely 043197

GRIP,HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

11

Gravely 043193

SG-COMP .045X.600X.750 WLD7.5
(Superseded to 08338800)

$7.49

$

Usually ships in 4-12 days

0

12

Gravely 042992

STRAP,CLUTCH-BRAKE
(Superseded to 08820800)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 180016

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

14

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

15

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

17

Gravely 045789

BSHG-FLG .320X.620X.312 NY
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0

18

Gravely 044478

RG-RTNG-EXT .438X.638
(Superseded to 05715300)

$

$

Not available

19

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

20

Gravely 044096

ROD,CLUTCH
(Superseded to 08877800)

$

$

Not available

21

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

22

Gravely 043444

ROD,BRAKE LOWER
(Superseded to 08877600)

$110.99

$

Usually ships in 4-12 days

0
