988055 - Gravely Pro Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) WHEEL Parts Diagram

Pro Walk-Behind Mower Power Unit, 18hp Kohler

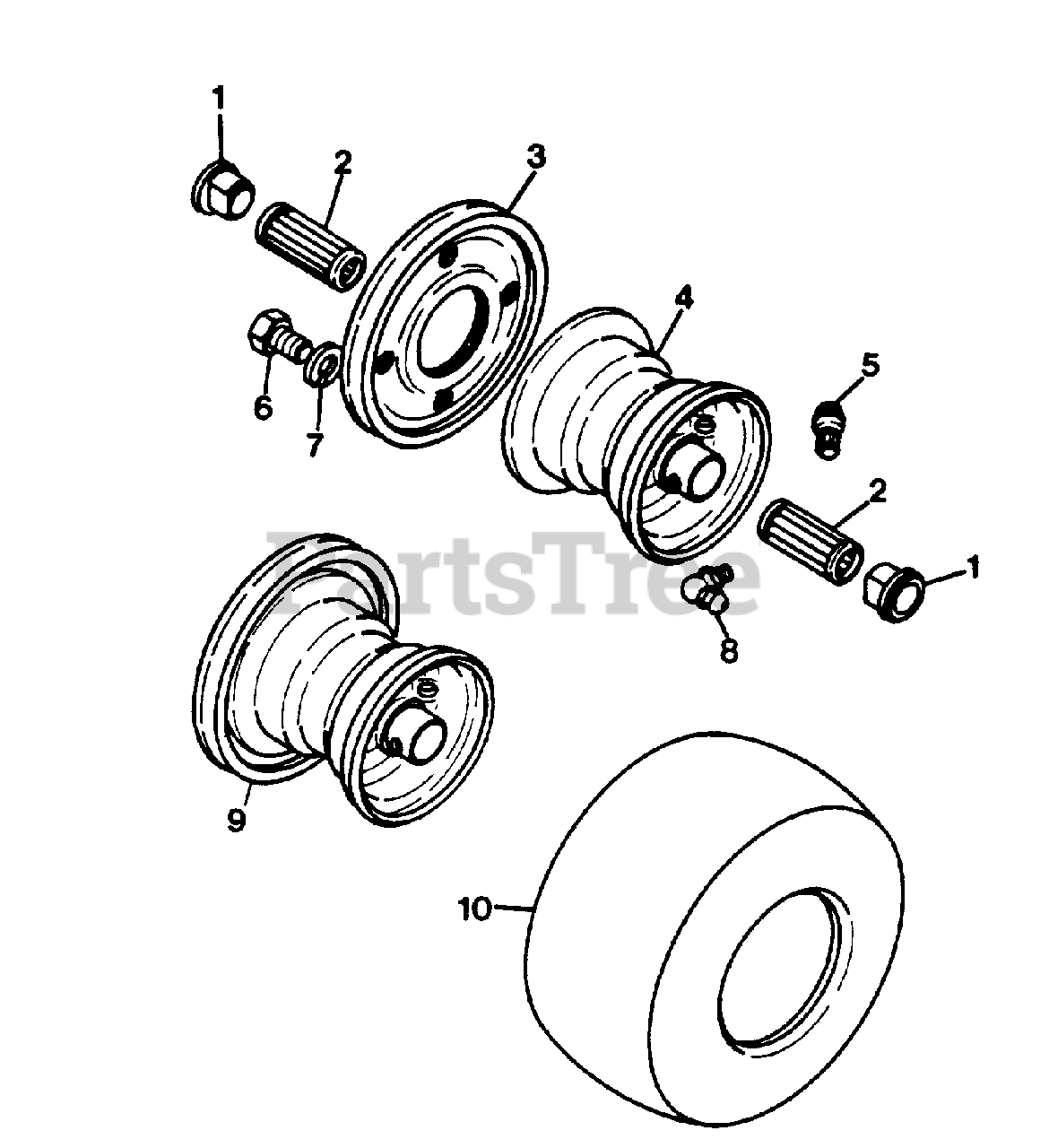

WHEEL Parts Diagram

  • Title

1

Gravely 034661

BSHG-FLG .875X1.375X.719X1.55
(Superseded to 05520400)

$

$

Not available

2

Gravely 034660

BRG- .875X2.500
(Superseded to 05423100)

$

$

Not available

2

Gravely 041153

BRG,.875X1.375X2.0LG
(Superseded to 20689800)

Note: (PRO 32)

$

$

Not available

3

Gravely 042271

ASM,PULLY&BRAKE DRUM
(Superseded to 07129900)

$

$

Not available

4

Gravely 042272

KIT,PRO WHL ASM
(Superseded to 21263800)

$

$

Not available

5

Gravely 011191

VALVE STEM ASS'Y
(Superseded to 07520000)

$3.49

$

In Stock, only 1 left!

0

6

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 411032

FTG,LUBE 90 DEG .250-28 TAPER
(Superseded to 07012800)

$5.99

$

In Stock, Qty 5

0

9

Gravely 041154

ASM,RIM
(Superseded to 20689900)

Note: (PRO-32)

$

$

Not available

10

Gravely 034663

TIRE 13X6.50-6 4P TURF SAVER
(Superseded to 07134200)

$

$

Not available

10

Gravely 041155

TIRE,13X5.00-6
(Superseded to 20690000)

Note: (PRO-32)

$

$

Not available

NS

Gravely 041151

WHL .13X5.00-6
(Superseded to 07129700)

Note: (PRO-32)

$

$

Not available
