988055 - Gravely Pro Walk-Behind Mower Power Unit, 18hp Kohler (SN: 000101 & Above) WHEEL DRIVE Parts Diagram

Pro Walk-Behind Mower Power Unit, 18hp Kohler

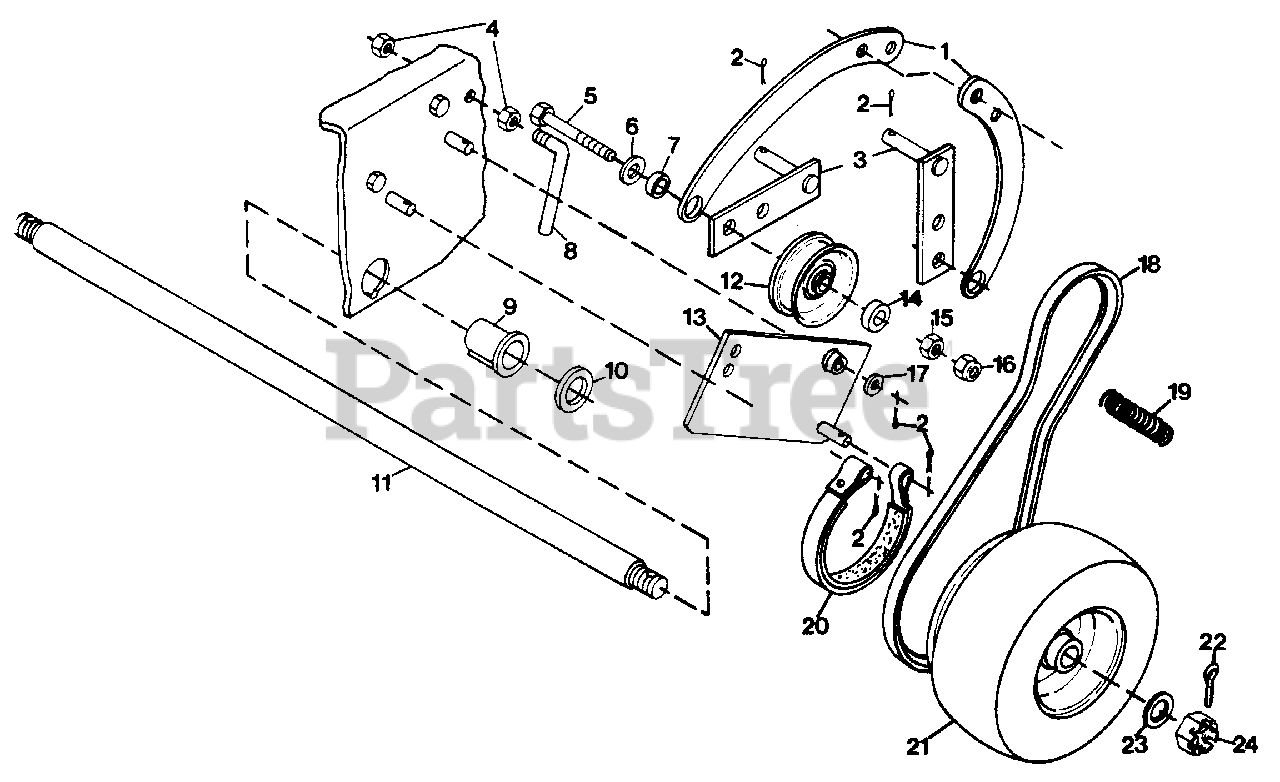

WHEEL DRIVE Parts Diagram

  • Title

1

Gravely 042979

STRAP,WHL-CLUTCH
(Superseded to 08820000)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 177923

PIN-CTR .12X.75 EXTPRSQCT YWZ
(Superseded to 06707300)

$0.99

$

In Stock, Qty 6

0

3

Gravely 042977

WLDMT,WHL-CLUTCH LVR
(Superseded to 08819800)

$

$

Not available

4

Gravely 120375

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

5

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 042989

BSHG-SLV .383X.50X.165
(Superseded to 05526700)

$

$

Not available

8

Gravely 041355

ROD,PULLEY CLEANING
(Superseded to 08876300)

$

$

Not available

9

Gravely 044120

BSHG-FLG .885X1.500X1.400X1.50
(Superseded to 05518300)

$

$

Not available

10

Gravely 041686

WSHR-FL-STL 1.0X1.50X.25
(Superseded to 06425600)

$6.49

$

In Stock, Qty 10

0

11

Gravely 041317

SHFT,AXLE
(Superseded to 08813300)

$

$

Not available

11

Gravely 043950

SHFT,AXLE
(Superseded to 21267200)

Note: (PRO-32)

$

$

Not available

12

Gravely 027824

IDLER-FLAT 3.125X.38
(Superseded to 07317100)

$

$

Not available

13

Gravely 044342

WLDMT,BRAKE LEVER L.H.
(Superseded to 08824000)

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 044343

WLDMT,BRAKE LEVER R.H.
(Superseded to 08824100)

$

$

Not available

14

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

15

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 041599

V-BELT, HB-COGGED (SET)
(Superseded to 07220700)

$131.99

$

Usually ships in 4-12 days

0

19

Gravely 047314

SG-TENS .093X.75X4.0 WLD40
(Superseded to 08343000)

$15.99

$

Usually ships in 4-12 days

0

20

Gravely 034306

ASM,BRAKE BAND
(Superseded to 08802800)

$92.99

$

Usually ships in 4-12 days

0

20

Gravely 034307

ASM,BRAKE BAND
(Superseded to 08802900)

$

$

Not available

21

Gravely 042270

T/WHL ASSY 13X6.50-6
(Superseded to 07129800)

$

$

Not available

21

Gravely 041151

WHL .13X5.00-6
(Superseded to 07129700)

Note: (PRO-32)

$

$

Not available

22

Gravely 137228

PIN-CTR .15X1.50 YWZC
(Superseded to 06713800)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 423315

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 427640

NUT-SL .75-16 YWZC
(Superseded to 06538700)

$6.99

$

Usually ships in 4-12 days

0
