988057 - Gravely Pro Walk-Behind Mower Power Unit, 17hp Kawasaki (SN: 000101 & Above)

Pro Walk-Behind Mower Power Unit, 17hp Kawasaki

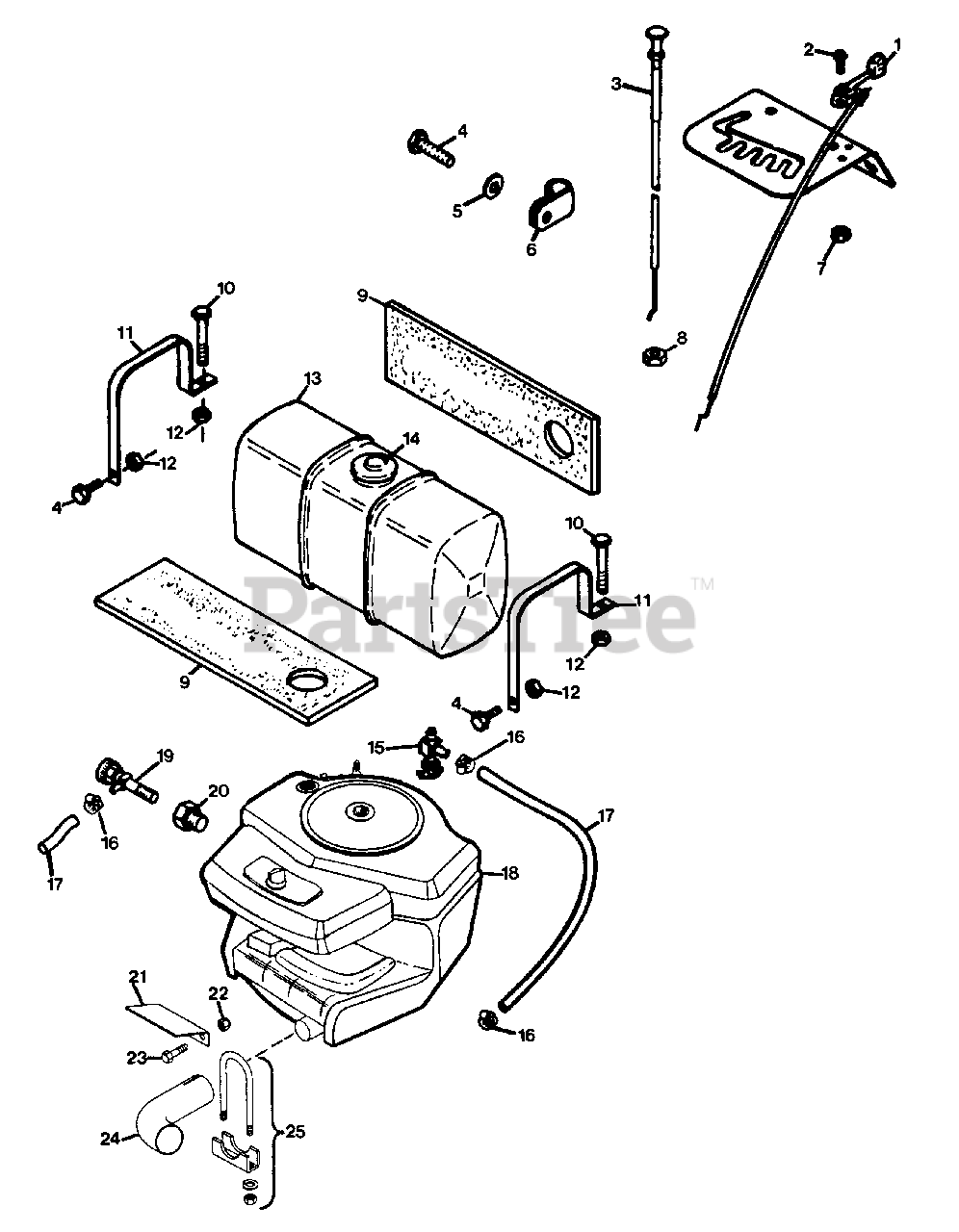

988057 - Gravely Pro Walk-Behind Mower Power Unit, 17hp Kawasaki (SN: 000101 & Above) > Parts Diagrams (10) > FUEL AND EXHAUST SYSTEM

  • Title
043302

1

LEVER, CONTROL

Part# 043302 (Superseded to 20764900)

OEM Warranty Repair Part for Gravely

Not available

159920

2

SCREW, MACH. 10-24X.50 PHD

Part# 159920 (Superseded to 06113000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

UNKNOWN

3

UNKNOWN

Part# UNKNOWN

Not available

180018

4

BOLT, HEX 1/4-20X.625

Part# 180018 (Superseded to 05932000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

UNKNOWN

5

UNKNOWN

Part# UNKNOWN

Not available

UNKNOWN

6

UNKNOWN

Part# UNKNOWN

Not available

190254

7

NUT, LOCK 10-24

Part# 190254 (Superseded to 06536000)

OEM Warranty Repair Part for Gravely

Not available

UNKNOWN

8

UNKNOWN

Part# UNKNOWN

Not available

048815

9

FITTING, TANK

Part# 048815 (Superseded to 21287700)

OEM Warranty Repair Part for Gravely

Not available

180042

10

BOLT, HEX 1/4-20X1.75

Part# 180042 (Superseded to 05964700)

OEM Warranty Repair Part for Gravely

Not available

048855

11

STRAP, FUEL TANK

Part# 048855 (Superseded to 21287800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

419454

12

NUT, LOCK 1/4-20

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

047681

13

TANK, FUEL

Part# 047681 (Superseded to 20865200)

OEM Warranty Repair Part for Gravely

Not available

048856

14

CAP, GAS TANK

Part# 048856 (Superseded to 07533400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.60

047613

15

BUSHING

Part# 047613 (Superseded to 07511400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

032045

16

CLAMP, HOSE

Part# 032045 (Superseded to 06924300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

021134

17

LINE, FUEL

Part# 021134 (Superseded to 03278100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $0.45

043324

18

ENGINE, 17 HP KAWASAKI

Part# 043324

OEM Warranty Repair Part for Gravely

Not available

035329

19

COCK, OIL DRAIN

Part# 035329 (Superseded to 00429000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $39.07

041831

20

ADAPTOR, OIL DRAIN

Part# 041831 (Superseded to 08757700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

UNKNOWN

21

UNKNOWN

Part# UNKNOWN

Not available

UNKNOWN

22

UNKNOWN

Part# UNKNOWN

Not available

UNKNOWN

23

UNKNOWN

Part# UNKNOWN

Not available

UNKNOWN

24

UNKNOWN

Part# UNKNOWN

Not available

UNKNOWN

25

UNKNOWN

Part# UNKNOWN

Not available

040742

NS

FILTER, FUEL

Part# 040742 (Superseded to 08811700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65
