988057 - Gravely Pro Walk-Behind Mower Power Unit, 17hp Kawasaki (SN: 000101 & Above)

Pro Walk-Behind Mower Power Unit, 17hp Kawasaki

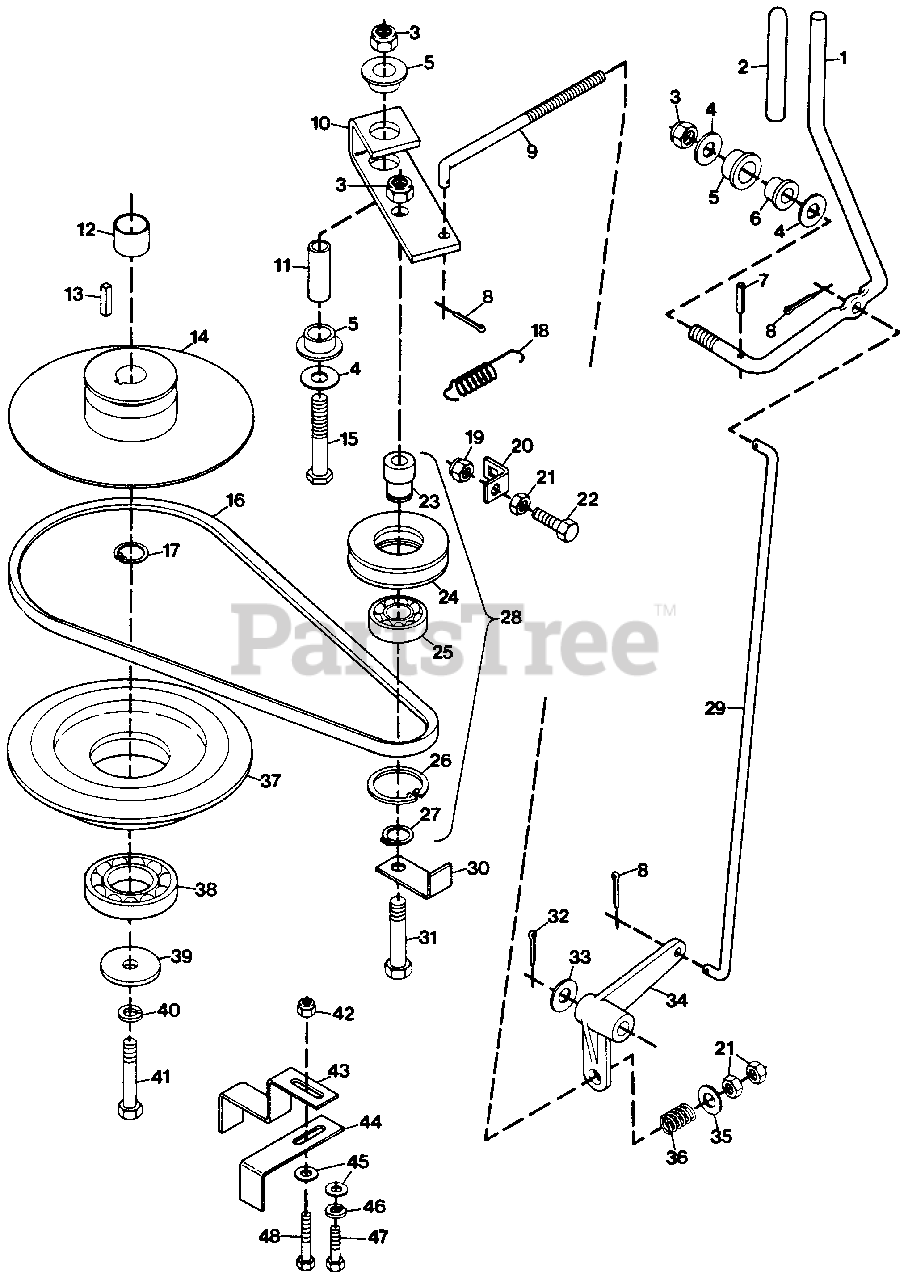

988057 - Gravely Pro Walk-Behind Mower Power Unit, 17hp Kawasaki (SN: 000101 & Above) > Parts Diagrams (10) > PTO CLUTCH LINKAGE

  • Title
042985

1

LEVER, PTO ACTUATING

Part# 042985 (Superseded to 08877300)

OEM Warranty Repair Part for Gravely

Not available

043196

2

GRIP, PTO LEVER

Part# 043196 (Superseded to 07528200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

435507

3

NUT, LOCK 1/2-13

Part# 435507 (Superseded to 06540600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

415543

4

WASHER, FLAT .531X1.250X.100

Part# 415543 (Superseded to 06441000)

OEM Warranty Repair Part for Gravely

Not available

010174

5

BUSHING, NYLON .76X1X.6 FLANGE

Part# 010174 (Superseded to 05518400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

034738

6

BUSHING, .513X.750X.625

Part# 034738 (Superseded to 05521100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

421202

7

PIN, SPRING .187X1.000

Part# 421202 (Superseded to 05808800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

121222

8

PIN, COTTER .09X.75

Part# 121222 (Superseded to 06706900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

041334

9

ROD, PTO CLUTCH ACTUATING

Part# 041334 (Superseded to 08876200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.85

041370

10

ARM, IDLER PIVOT

Part# 041370 (Superseded to 08846200)

OEM Warranty Repair Part for Gravely

Not available

041992

11

SPACER

Part# 041992 (Superseded to 08815100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $21.52

042540

12

SPACER, MANUAL START

Part# 042540 (Superseded to 08839000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

018345

13

KEY, SQUARE .250X1.250

Part# 018345 (Superseded to 06606900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

041839

14

HUB, PTO AND DRIVE CLUTCH

Part# 041839 (Superseded to 08814600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $362.84

041333

15

BOLT, HEX 1/2-13X2.75 SPECIAL

Part# 041333 (Superseded to 08813700)

OEM Warranty Repair Part for Gravely

Not available

043213

16

V-BELT, PTO CLUTCH

Part# 043213 (Superseded to 07225000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $35.72

031624

17

RING, RETAINING

Part# 031624 (Superseded to 05717200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

034385

18

SPRING, PTO RETURN

Part# 034385 (Superseded to 08331900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

456004

19

NUT, LOCK 3/8-16

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

034894

20

TAB, SPRING

Part# 034894 (Superseded to 08804200)

OEM Warranty Repair Part for Gravely

Not available

120377

21

NUT, HEX 3/8-16

Part# 120377 (Superseded to 06529400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

180126

22

BOLT, HEX 3/8-16X1.50

Part# 180126 (Superseded to 05957900)

OEM Warranty Repair Part for Gravely

Not available

039327

23

BUSHING

Part# 039327 (Superseded to 08810700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.48

038896

24

SHEAVE, IDLER

Part# 038896 (Superseded to 08744300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $86.03

038898

25

BEARING, BALL

Part# 038898 (Superseded to 05425100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $33.48

018960

26

RING, RETAINING

Part# 018960 (Superseded to 05713100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

039331

27

RING, RETAINING

Part# 039331 (Superseded to 00102214)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

039336

28

ASSEMBLY, IDLER SHEAVE

Part# 039336 (Superseded to 08810900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $223.54

042988

29

ROD, PTO CONTROL

Part# 042988 (Superseded to 08820400)

OEM Warranty Repair Part for Gravely

Not available

039330

30

GUIDE, BELT

Part# 039330 (Superseded to 08810800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

180185

31

BOLT, HEX 1/2-13X2.50

Part# 180185 (Superseded to 05966600)

OEM Warranty Repair Part for Gravely

Not available

177923

32

PIN, COTTER .125X.75

Part# 177923 (Superseded to 06707300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

120396

33

WASHER, FLAT .531X1.062X.095

Part# 120396 (Superseded to 06441900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

041838

34

LEVER, PTO CLUTCH

Part# 041838 (Superseded to 08814500)

OEM Warranty Repair Part for Gravely

Not available

120394

35

WASHER, FLAT .406X.812X.065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

011779

36

SPRING, COMP. 1X.78X338

Part# 011779 (Superseded to 08327000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

041353

37

SHEAVE, MOWER CLUTCH

Part# 041353 (Superseded to 08814000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $279.44

035330

38

BEARING, BALL 1.574X3.149X.708

Part# 035330 (Superseded to 05420900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

044379

39

WASHER, SPECIAL

Part# 044379 (Superseded to 06443600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

120383

40

WASHER, LOCK 7/16 REG.

Part# 120383 (Superseded to 06309300)

OEM Warranty Repair Part for Gravely

Not available

042494

41

BOLT, HEX 10MMX1.5

Part# 042494 (Superseded to 05968300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

UNKNOWN

42

UNKNOWN

Part# UNKNOWN

Not available

043194

43

GUIDE, PTO V-BELT

Part# 043194 (Superseded to 08821100)

OEM Warranty Repair Part for Gravely

Not available

034309

44

GUIDE, V-BELT

Part# 034309 (Superseded to 08803000)

OEM Warranty Repair Part for Gravely

Not available

120393

45

WASHER, FLAT .344X.688X.065

Part# 120393 (Superseded to 06437200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

120214

46

WASHER, LOCK 5/16 REG.

Part# 120214 (Superseded to 06308600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

021914

47

BOLT, HEX M8 X 1.25 30MM

Part# 021914 (Superseded to 05968200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

UNKNOWN

48

UNKNOWN

Part# UNKNOWN

Not available
