988058 - Gravely Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM - 16 & 17 H.P. Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

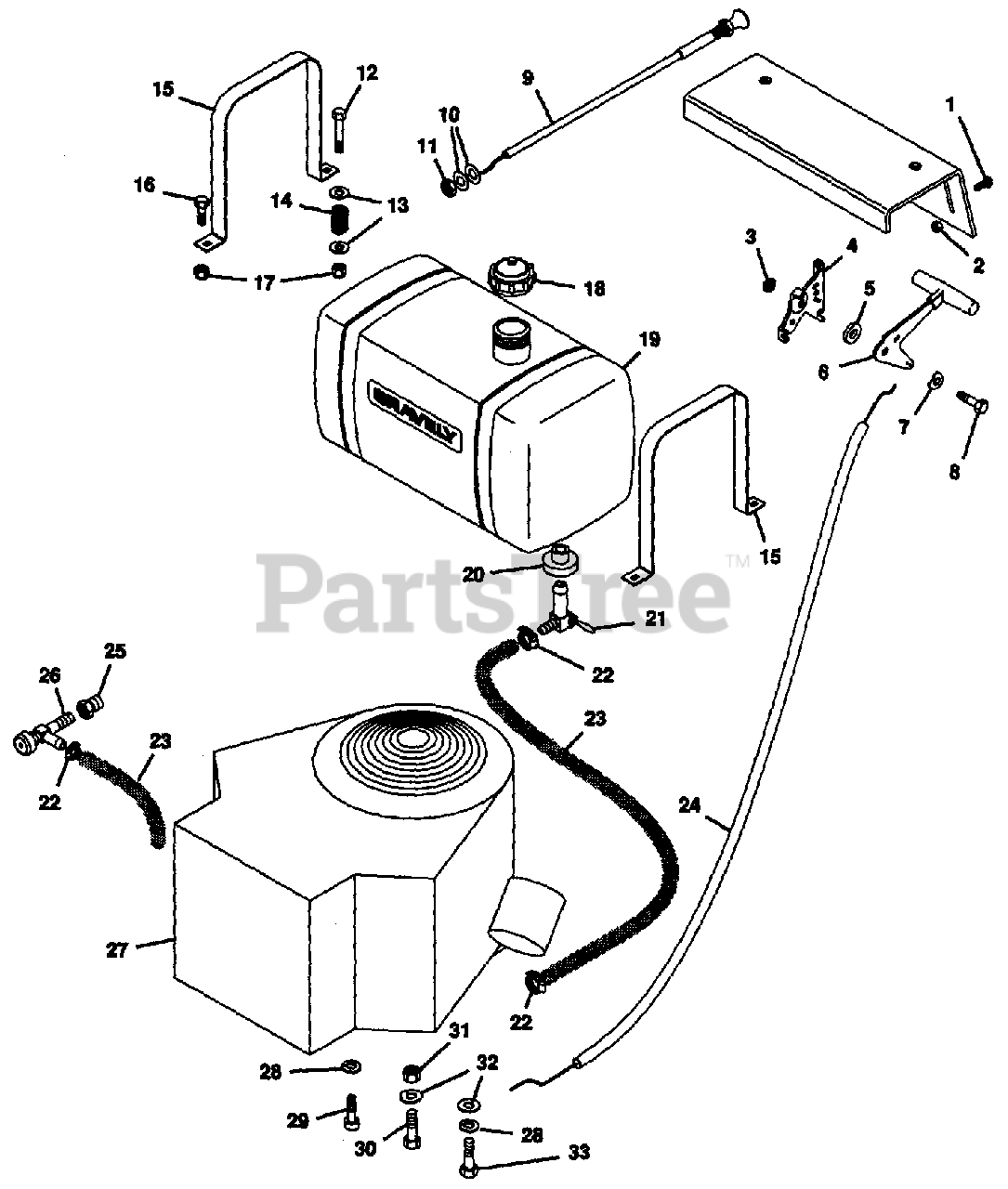

FUEL AND EXHAUST SYSTEM - 16 & 17 H.P. Parts Diagram

  • Title

1

Gravely 160046

SCR-MCH 10-32X.50 PHD
(Superseded to 06113300)

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 411893

NUT-LK 10-32 NY YWZC
(Superseded to 06539200)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 416430

NUT-LK-CTR .250-28 YWZC
(Superseded to 06533400)

$2.99

$

In Stock, Qty 10

0

4

Gravely 011770

BRACKET - TROTTLE CABLE
(Superseded to 03493300)

$

$

Not available

5

Gravely 011772

WSHR-FRICTION .750X.256X.100
(Superseded to 06431500)

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 011773

KNOB & LEVER ASS'Y
(Superseded to 06917100)

$

$

Not available

7

Gravely 011774

SPRING WASHER
(Superseded to 03493400)

$

$

Not available

8

Gravely 181566

BLT-HEX .25-28X.75 GR5 YWZC
(Superseded to 05952300)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 035137

CONTROL,CHOKE
(Superseded to 06924800)

$

$

Not available

10

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 124925

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.99

$

In Stock, only 3 left!

0

12

Gravely 180042

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05964700)

$3.49

$

In Stock, Qty 12

0

13

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$17.99

$

In Stock, only 3 left!

0

15

Gravely 049338

STRP,FUEL TANK
(Superseded to 08835900)

$120.99

$

In Stock, only 1 left!

0

16

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.99

$

In Stock, Qty 12

0

18

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$23.99

$

Usually ships in 4-12 days

0

19

Gravely 049283

TANK,FUEL GRAVELY PRO
(Superseded to 08867900)

$

$

Not available

20

Gravely 047613

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 049284

VALVE,BALL SHUT-OFF
(Superseded to 08835100)

$

$

Not available

22

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$8.49

$

Usually ships in 4-12 days

0

23

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (2 feet)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 052955

CABLE, CONTROL
(Superseded to 06943600)

Note: (16 HP)

$56.99

$

Usually ships in 4-12 days

0

24

Gravely 050110

CONTROL, THROTTLE
(Superseded to 06941000)

Note: (17 HP)

$70.99

$

Usually ships in 4-12 days

0

25

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

Note: (16 HP)

$6.99

$

Usually ships in 4-12 days

0

25

Gravely 041831

ADPT,OIL DRAIN
(Superseded to 08757700)

Note: (17 HP)

$14.99

$

Usually ships in 4-12 days

0

26

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$43.99

$

In Stock, only 2 left!

0

27

Gravely 052614

ENGINE- 16.0 B&S VANGUARD TWIN

$

$

Not available

27

Gravely 043324

ENG,17HP KAWASAKI

$

$

Not available

28

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 051666

SCR-SKH M8 X 1.25X20
(Superseded to 05931800)

$3.49

$

Usually ships in 4-12 days

0

30

Gravely 180083

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

Note: (16 HP)

$2.49

$

In Stock, Qty 9

0

30

Gravely 021914

BLT-HEX M8 X 1.25X30 GR5 YWZC
(Superseded to 05968200)

Note: (17 HP)

$5.49

$

Usually ships in 4-12 days

0

31

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

32

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0
