988059 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 000101 & Above)

Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki

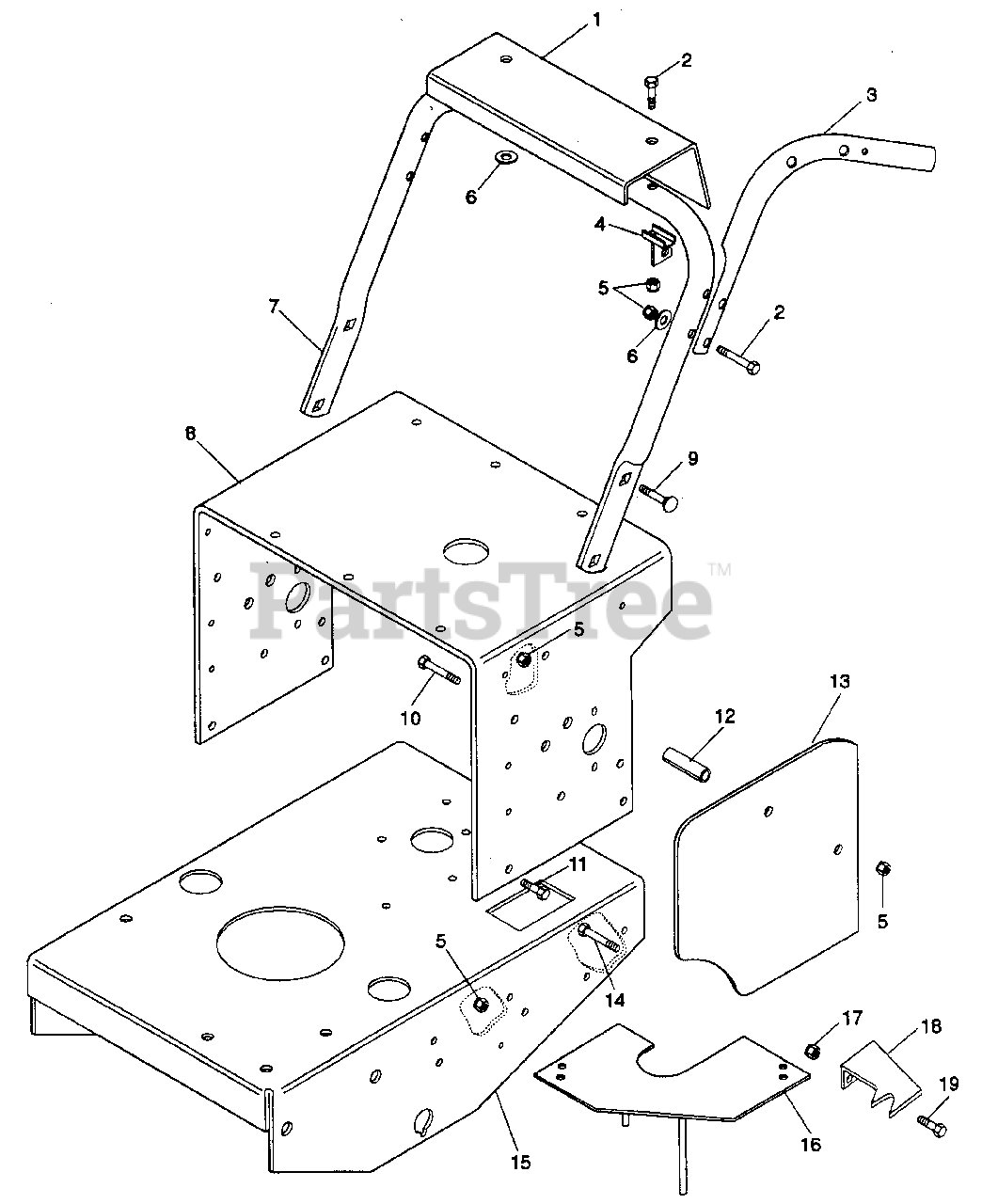

988059 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 000101 & Above) > Parts Diagrams (8) > FRAME

  • Title
049275

1

PNL, SILK SCREENED

Part# 049275 (Superseded to 58801300)

OEM Warranty Repair Part for Gravely

Not available

180130

2

BLT-HEX .38-16 X 2.00

Part# 180130 (Superseded to 05963300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

052622

3

HANDLEBAR L.H.

Part# 052622 (Superseded to 08847551)

OEM Warranty Repair Part for Gravely

Not available

052623

3

HANDLEBAR R.H.

Part# 052623 (Superseded to 08847651)

OEM Warranty Repair Part for Gravely

Not available

088734

4

PTO LEVER MTG BKT

Part# 088734 (Superseded to 08873400)

OEM Warranty Repair Part for Gravely

Not available

456004

5

NUT-LK-NYL .375-16 PL

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

120394

6

WSHR-FL-STL .406 X .812 X .065 PL

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

088735

7

LOWER HANDLEBAR, PRO 150

Part# 088735 (Superseded to 08873500)

OEM Warranty Repair Part for Gravely

Not available

088721

8

PRO-150 TOP FRAME

Part# 088721 (Superseded to 08872100)

OEM Warranty Repair Part for Gravely

Not available

120915

9

BLT-RDHDSQNK .38-16 X 1.0 PL

Part# 120915

OEM Warranty Repair Part for Gravely

Not available

189304

10

BLT-HEX .38-16 X 4.00

Part# 189304 (Superseded to 05961100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

180122

11

BLT-HEX .38-16 X 1.00 PL GR 5

Part# 180122 (Superseded to 05948700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

088753

12

BSHG, SPACER, 3.25 X 3/8 ID X 5/8 OD

Part# 088753 (Superseded to 08875300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

088737

13

GUARD, DRIVE PRO-150 SIDE CVR

Part# 088737 (Superseded to 08873700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $13.47

180125

14

BLT-HEX .38-16 X 1.38

Part# 180125 (Superseded to 05934900)

OEM Warranty Repair Part for Gravely

Not available

088720

15

PRO-150 MAIN FRAME

Part# 088720 (Superseded to 08872000)

OEM Warranty Repair Part for Gravely

Not available

088739

16

WLDT, BELT FINGER, PRO-150

Part# 088739 (Superseded to 08873900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

065062

17

NUT-LK-NYL .312-18 PL

Part# 065062 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

088489

18

CLEANER, PLLY GROOVE L.H.

Part# 088489 (Superseded to 08848900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93

088490

18

CLEANER, PLLY GROOVE R.H.

Part# 088490 (Superseded to 08849000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

059321

19

BLT-HEX .31-18 X .625 GR-5

Part# 059321 (Superseded to 05952200)

OEM Warranty Repair Part for Gravely

Not available

078749

N/S

DECAL SET, PRO-150 ID & SHIFTER

Part# 078749 (Superseded to 07874900)

OEM Warranty Repair Part for Gravely

Not available
