988059 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki

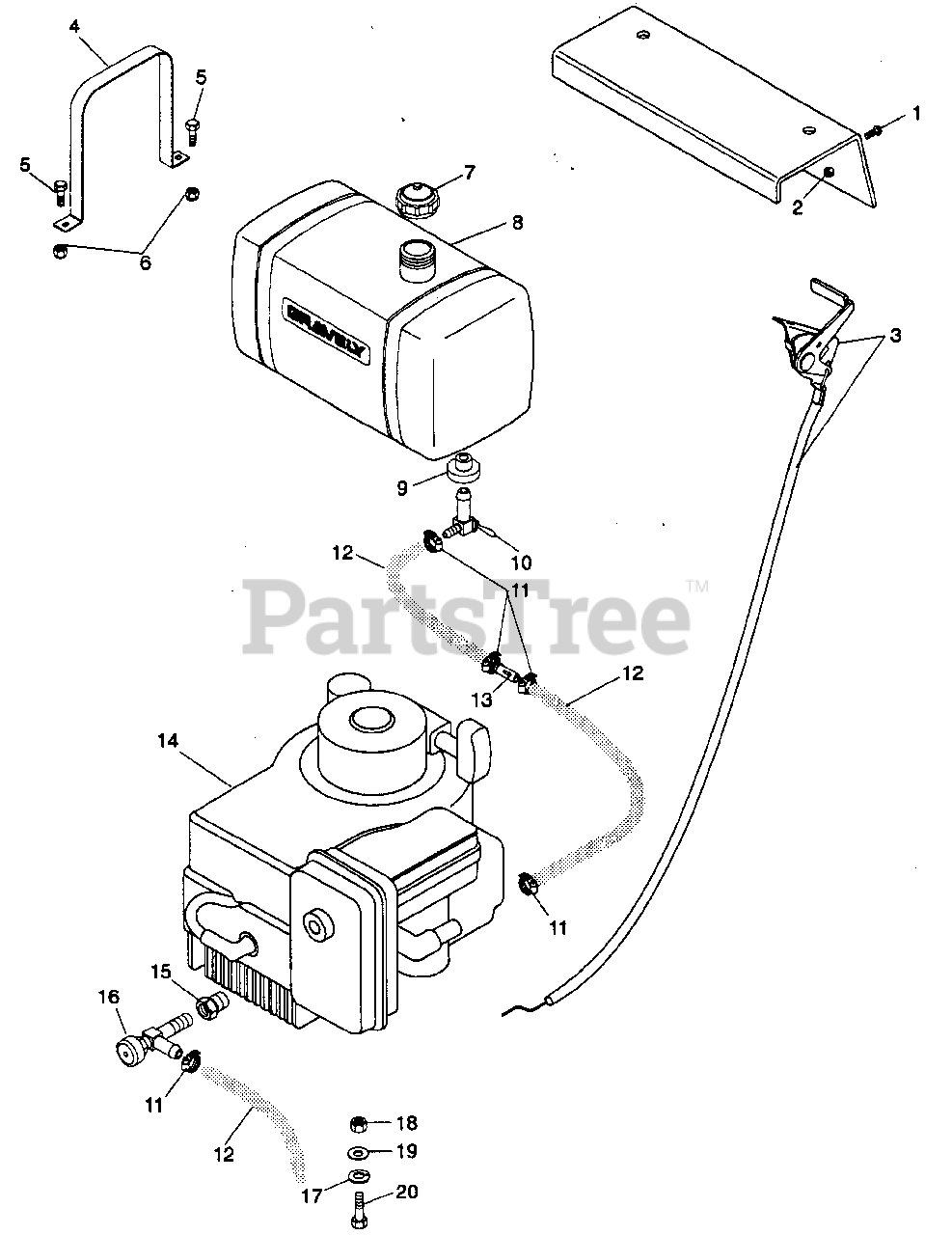

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 160046

SCR-MCH 10-32 X .50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 411893

NUT-LK 10-32 HEX N/INSRT
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 088731

ASSY, THROTTLE CONTROL/CABLE
(Superseded to 06943600)

$52.99

$

Usually ships in 4-12 days

0

4

Gravely 049338

STRP, FUEL TANK
(Superseded to 08835900)

$90.99

$

In Stock, only 1 left!

0

5

Gravely 180020

BLT-HEX .25-20 X .75 PL GR 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

6

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

7

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

8

Gravely 049283

TANK, FUEL GRAVELY PRO
(Superseded to 08867900)

$164.99

$

Usually ships in 4-12 days

0

9

Gravely 047613

BUSH., F .375 X 1.06 X .625 RB
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 049284

VALVE, BALL SHUT-OFF
(Superseded to 08835100)

$

$

Not available

11

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 021134

GAS LINE-BULK
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 040742

FUEL, FILTER
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 044350

ENG, KAWASAKI SPEC GS01

$

$

Not available

14

Gravely 082375

ENGINE-14 HP KAWASAKI OHV

$

$

Not available

15

Gravely 041831

ADPT, OIL DRAIN
(Superseded to 08757700)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 035329

COCK, OIL DRAIN
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

17

Gravely 120214

WSHR-LOCK .313 X .078 PL
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

19

Gravely 120393

WSHR-FL-STL 1.344 X .688 X .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

20

Gravely 021914

BLT-HEX M8 X 1.25 X 30 MM
(Superseded to 05968200)

$3.99

$

Usually ships in 4-12 days

0
