988059 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 000101 & Above)

Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki

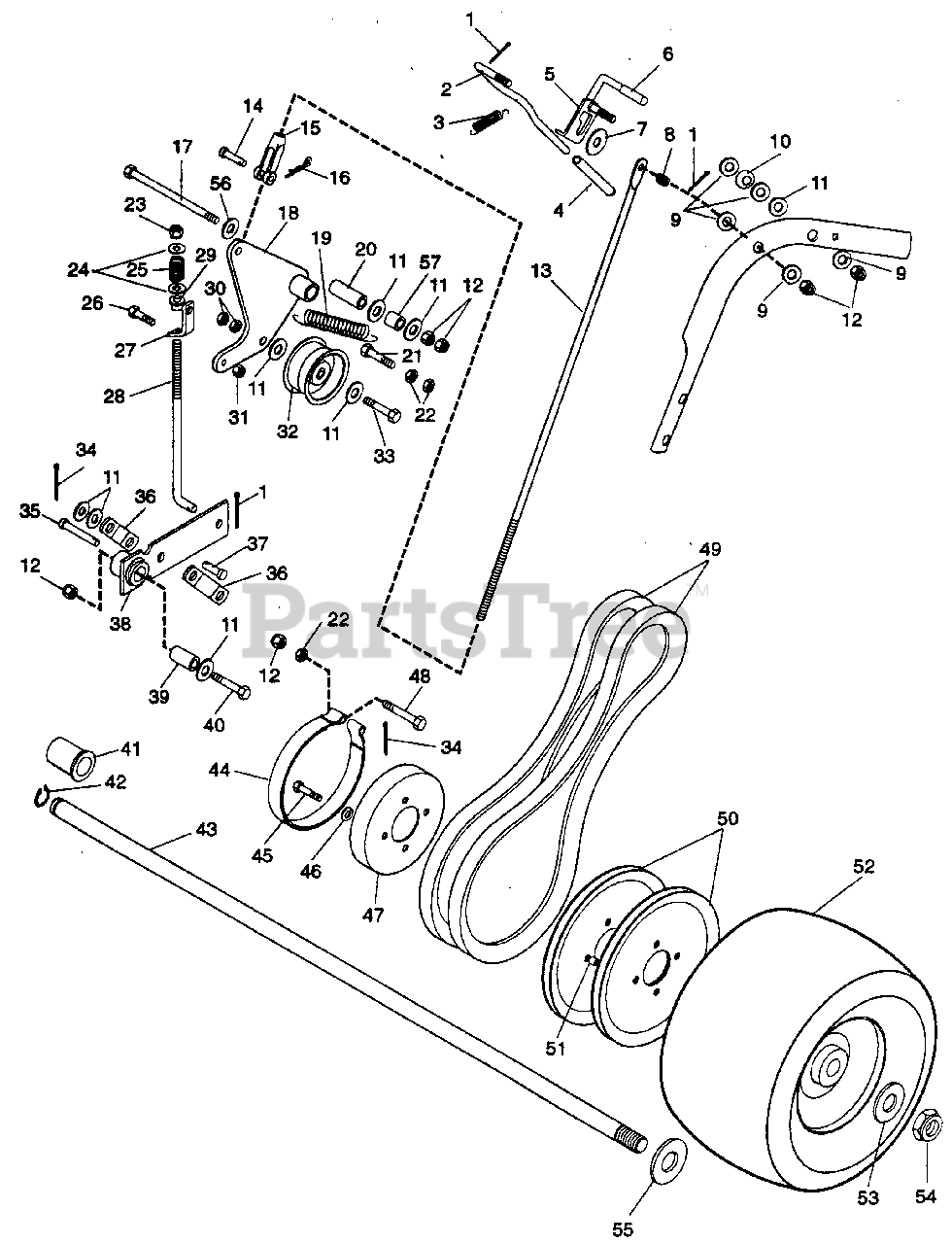

988059 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 000101 & Above) > Parts Diagrams (8) > STEERING CONTROL

  • Title
121222

1

PIN-COTR .09 X .75 PL

Part# 121222 (Superseded to 06706900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

052624

2

LVR, HAND CONTROL

Part# 052624 (Superseded to 04905200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $51.37

043446

3

WLDMT, MWR FRM MULTI-MODE

Part# 043446 (Superseded to 08339300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

043197

4

GRIP, HAND CLUTCH LEVER

Part# 043197 (Superseded to 07528300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

042990

5

WLDMT, CLUTCH-BRAKE LOCK

Part# 042990 (Superseded to 08820600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

043192

6

TIP-BRAKE LOCK LEVER

Part# 043192 (Superseded to 07503800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.23

446447

7

WSHR-FL-STL .438 X 1.375 X .083

Part# 446447

OEM Warranty Repair Part for Gravely

Not available

043193

8

SG-COMP .045 X .600 X .750 WLD 25

Part# 043193 (Superseded to 08338800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

020775

9

WSHR-FL-NY .375 X .75 X .060

Part# 020775 (Superseded to 06433600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

029024

10

SPRING WASHER

Part# 029024 (Superseded to 02902400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

120394

11

WSHR-FL-STL .406 X .812 X .065 PL

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

456004

12

NUT-LK-NYL .375-16 PL

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

049280

13

ROD, CLUTCH ACTUATING

Part# 049280 (Superseded to 08878200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.08

068092

14

PIN-CLEV .372 X 1.25

Part# 068092 (Superseded to 06814900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

018380

15

CLVS, 3/8-24 ADJUSTABLE

Part# 018380 (Superseded to 08800400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

036185

16

PIN-HAIR INT .08 X .18 X .18

Part# 036185 (Superseded to 06713500)

OEM Warranty Repair Part for Gravely

Not available

059388

17

BLT-HEX .38-16 X 4.00

Part# 059388 (Superseded to 05965400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

049019

18

WLDMT, WHL CLUTCH ARM

Part# 049019 (Superseded to 08831200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

034400

19

SG-TENS .069 X .62 X 3.50 WLD 20

Part# 034400 (Superseded to 08332000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

049022

20

BUSH., S .385 X .610 X 1.80 ST

Part# 049022 (Superseded to 08831500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

180126

21

BLT-HEX .38-16 X 1.50 PL GR 5

Part# 180126 (Superseded to 05957900)

OEM Warranty Repair Part for Gravely

Not available

120377

22

NUT-HEX .375-16

Part# 120377 (Superseded to 06529400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

065062

23

NUT-LK-NYL .312-18 PL

Part# 065062 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

064123

24

WSHR-FL-STL .344 X .688 X .065 PL

Part# 064123 (Superseded to 06437200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

011779

25

SG-COMP .125 X .78 X 1.00

Part# 011779 (Superseded to 08327000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $11.12

180020

26

BLT-HEX .25-20 X .75 PL GR 5

Part# 180020 (Superseded to 05946800)

OEM Warranty Repair Part for Gravely

Not available

088726

27

L-BKT, PRO BRAKE LINK

Part# 088726 (Superseded to 08872600)

OEM Warranty Repair Part for Gravely

Not available

049282

28

ROD, BRAKE

Part# 049282 (Superseded to 08878300)

OEM Warranty Repair Part for Gravely

Not available

045789

29

BSHG-FLG .320 X .620 X .312 NY

Part# 045789 (Superseded to 05517500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

413534

30

NUT-LK-CTR .375-16 TYP N

Part# 413534 (Superseded to 06529600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

419454

31

NUT-LK-NYL .250-20 PL

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

048870

32

IDLER 2.75 X 1.25

Part# 048870 (Superseded to 07318400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $22.25

059243

33

BLT-HEX .38-16 X 2.25 GR 5

Part# 059243 (Superseded to 05962900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

177923

34

PIN-COTR .12 X .75 PL

Part# 177923 (Superseded to 06707300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

011718

35

PIN CLEV .372 X 1.25

Part# 011718 (Superseded to 06814900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

049026

36

LINK, BRAKE ARM

Part# 049026 (Superseded to 08831951)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

018417

37

PIN-CLEVIS .38 X .594

Part# 018417 (Superseded to 06814800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

049023

38

WLDMT, BRAKE ARM

Part# 049023 (Superseded to 08831600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.29

049027

39

BUSH., S .391 X .622 X .950 ST

Part# 049027 (Superseded to 08833400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

059147

40

BLT-HEX .38-16 X 2.00 PL GR 5

Part# 059147 (Superseded to 05963300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

049969

41

BSHG-FLG 1.010 X 1.38 X 1.4 X 1.65

Part# 049969 (Superseded to 05517900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

017980

42

RG-RTNG-EXT .906 X .078

Part# 017980 (Superseded to 05707300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

088752

43

AXLE SHAFT, PRO-150

Part# 088752 (Superseded to 08875200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $110.63

088806

44

ASM, BRAKE BAND, PRO

Part# 088806 (Superseded to 08880600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $46.12

180083

45

BLT-HEX .31-18 X 1.50 PL GR 5

Part# 180083 (Superseded to 05952400)

OEM Warranty Repair Part for Gravely

Not available

120214

46

WSHR-LOCK .313 X .078 PL

Part# 120214 (Superseded to 06308600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

049015

47

DRUM, BRAKE

Part# 049015 (Superseded to 08863900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $27.89

180130

48

BLT-HEX .38-16 X 2.00 PL GR 5

Part# 180130 (Superseded to 05963300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

072258

49

DRIVE BELT, PRO 150, MTCHD PR

Part# 072258 (Superseded to 07225800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $58.08

049033

50

PLY-V 9.00 X 3.75

Part# 049033 (Superseded to 07319700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $43.55

048868

51

BUSH., S. 385 X .625 X .475 ST

Part# 048868 (Superseded to 08809500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

071373

52

ASS'Y, WHEEL, 13 X 6.00-6, PRO

Part# 071373 (Superseded to 07100239)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $111.74

019340

53

BRG-R-THRST 1.002 X 1.552 X .030

Part# 019340 (Superseded to 06435300)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

065203

54

NUT-LK-JAM-NYL .75-1.0 PL

Part# 065203 (Superseded to 06537900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

064265

55

WSHR-THRST 1.55 X 1.002 X .093

Part# 064265 (Superseded to 06426500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

064067

56

WSHR-FL-STL .390 X .875 X .18 PL

Part# 064067 (Superseded to 06436800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

043927

57

BUSHING

Part# 043927 (Superseded to 08947300)

OEM Warranty Repair Part for Gravely

Not available
