988059 - Gravely Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki (SN: 000101 & Above) TRANSMISSION MODEL 700-032 Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 14hp Kawasaki

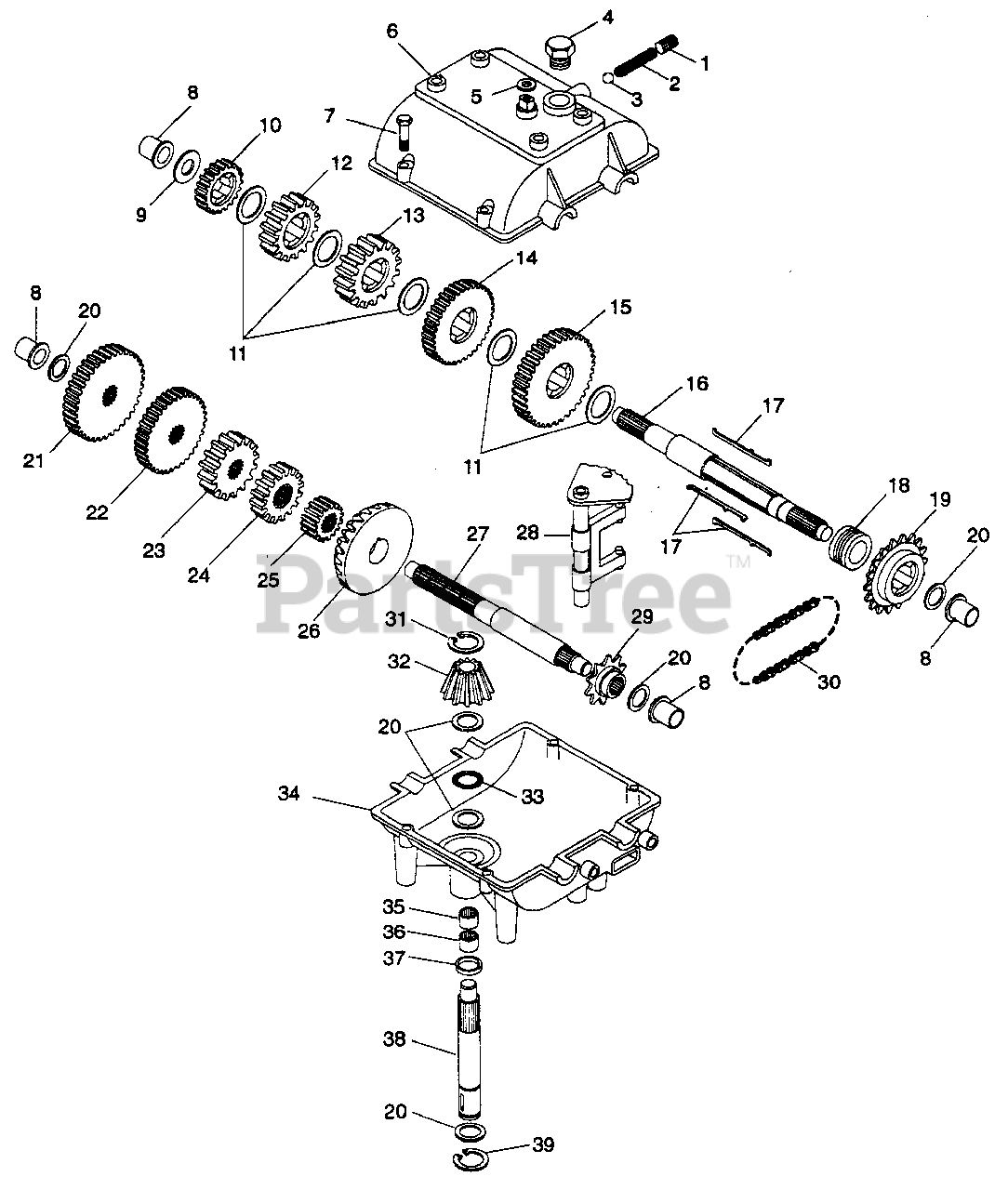

TRANSMISSION MODEL 700-032 Parts Diagram

  • Title

1

Gravely 792078

SCREW, SET 3/8-16 X 3/8

$

$

Not available

2

Gravely 792079

SPRING

$

$

Not available

3

Gravely 792077

BALL, STEEL 5/16

$

$

Not available

4

Gravely 792074

PLUG, THREADED

$

$

Not available

5

Gravely 788069

SEAL, SQUARE CUT

$

$

Not available

6

Gravely 772083

COVER, TRANSMISSION

$

$

Not available

7

Gravely 792073

SCREW, HHD TAPTITE, 1/4-20 X 1.25

$

$

Not available

8

Gravely 780105A

BUSHING, FLANGED

$

$

Not available

9

Gravely 780139

WASHER, THRUST

$

$

Not available

10

Gravely 778250

GEAR, SPUR(27 TEETH)

Note: (27 TEETH)

$

$

Not available

11

Gravely 780108

WASHER, THRUST

$

$

Not available

12

Gravely 778124A

GEAR, SPUR(30 TEETH)

Note: (30 TEETH)

$

$

Not available

13

Gravely 778239

GEAR, SPUR(32 TEETH)

Note: (32 TEETH)

$

$

Not available

14

Gravely 778125

GEAR, SPUR(35 TEETH)

Note: (35 TEETH)

$

$

Not available

15

Gravely 778146A

GEAR, SPUR(37 TEETH)

Note: (37 TEETH)

$

$

Not available

16

Gravely 776217

SHAFT, OUTPUT & BRAKE

$

$

Not available

17

Gravely 792089A

KEY

$

$

Not available

18

Gravely 784266

COLLAR, SHIFT

$

$

Not available

19

Gravely 786083

SPROCKET(18 TEETH)

Note: (18 TEETH)

$

$

Not available

20

Gravely 780072

WASHER, THRUST

$

$

Not available

21

Gravely 778249

GEAR, SPUR(23 TEETH)

Note: (23 TEETH)

$

$

Not available

22

Gravely 778126A

GEAR, SPUR(20 TEETH)

Note: (20 TEETH)

$

$

Not available

23

Gravely 778240

GEAR, SPUR(18 TEETH)

Note: (18 TEETH)

$

$

Not available

24

Gravely 778151

GEAR, SPUR(15 TEETH)

Note: (15 TEETH)

$

$

Not available

25

Gravely 778145

GEAR, SPUR(12 TEETH)

Note: (12 TEETH)

$

$

Not available

26

Gravely 778154

GEAR, BEVEL(42 TEETH)

Note: (42 TEETH)

$

$

Not available

27

Gravely 776134

SHAFT, COUNTER

$

$

Not available

28

Gravely 784267

ROD & FORK ASSEMBLY, SHIFT

$

$

Not available

29

Gravely 786082

SPROCKET(9 TEETH)

Note: (9 TEETH)

$

$

Not available

30

Gravely 786081

CHAIN, ROLLER(NO. 41 CHAIN, 24 LINKS)

Note: (NO. 41 CHAIN, 24 LINKS)

$

$

Not available

31

Gravely 788040

RING, RETAINING

$

$

Not available

32

Gravely 778176

BEVEL PINION, INPUT

$

$

Not available

33

Gravely 780071

BEARING, THRUST

$

$

Not available

34

Gravely 770061

CASE, TRANSMISSION

$

$

Not available

35

Gravely 780086

BEARING, NEEDLE

$

$

Not available

36

Gravely 780142

BEARING, NEEDLE

$

$

Not available

37

Gravely 792001

O-RING

$

$

Not available

38

Gravely 776135

SHAFT, INPUT

$

$

Not available

39

Gravely 792035

RING, RETAINING

$

$

Not available
