988060 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki

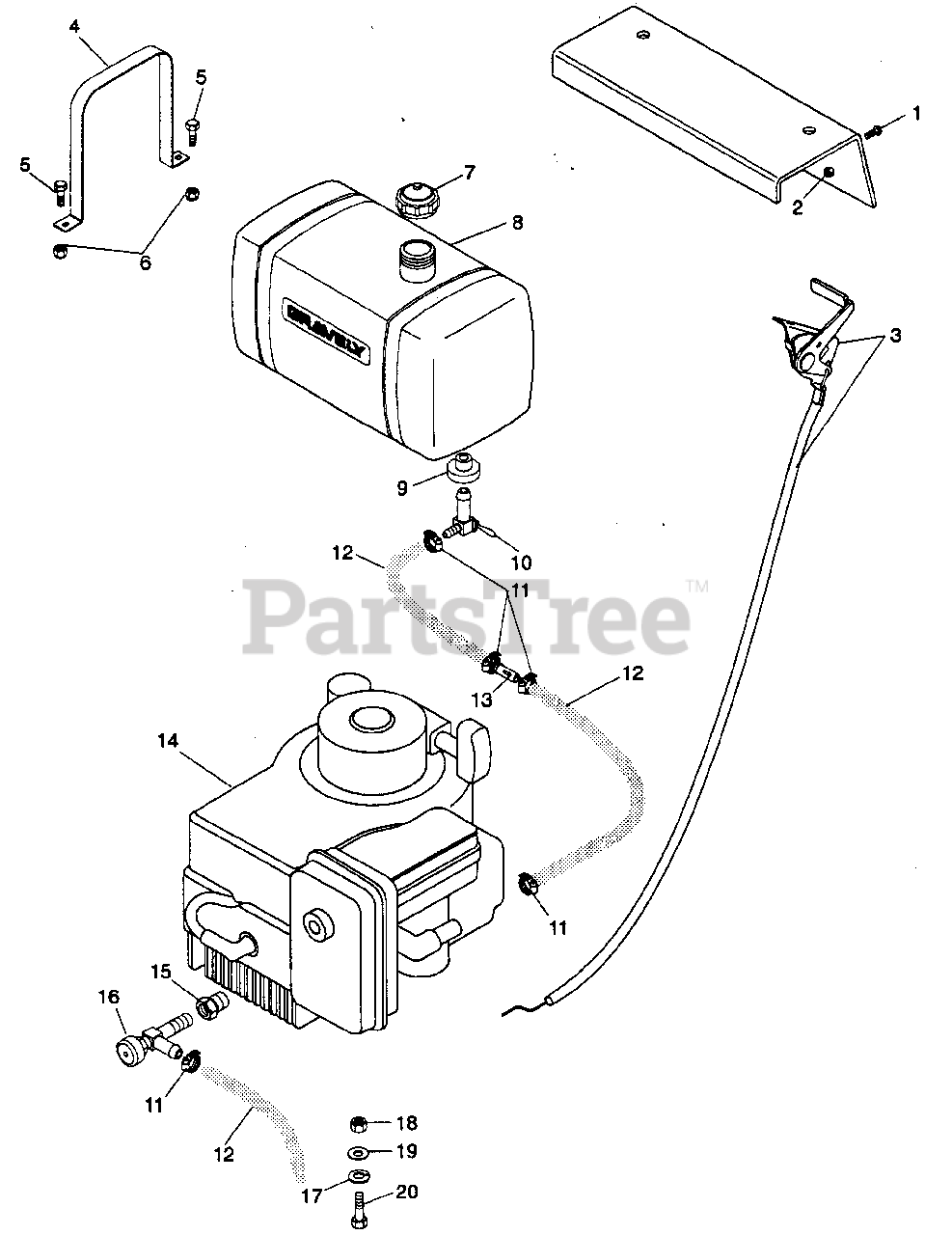

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title

1

Gravely 160046

SCR-MCH 10-32X.50 PHD
(Superseded to 06113300)

$2.99

$

Usually ships in 4-12 days

0

2

Gravely 411893

NUT-LK 10-32 NY YWZC
(Superseded to 06539200)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 088731

CABLE, CONTROL
(Superseded to 06943600)

$54.99

$

Usually ships in 4-12 days

0

4

Gravely 049338

STRP,FUEL TANK
(Superseded to 08835900)

$120.99

$

In Stock, only 1 left!

0

5

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

6

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

7

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$23.99

$

Usually ships in 4-12 days

0

8

Gravely 049283

TANK,FUEL GRAVELY PRO
(Superseded to 08867900)

$

$

Not available

9

Gravely 047613

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 049284

VALVE,BALL SHUT-OFF
(Superseded to 08835100)

$

$

Not available

11

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

12

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 040742

FILTER,FUEL
(Superseded to 08811700)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 044350

ENG,KAWASAKI SPEC GS01

$

$

Not available

14

Gravely 082375

ENGINE-14 HP KAWASAKI OHV

$

$

Not available

15

Gravely 041831

ADPT,OIL DRAIN
(Superseded to 08757700)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

17

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

19

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 021914

BLT-HEX M8 X 1.25X30 GR5 YWZC
(Superseded to 05968200)

$4.99

$

Usually ships in 4-12 days

0
