988060 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 000101 & Above) PTO CLUTCH LINKAGE Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki

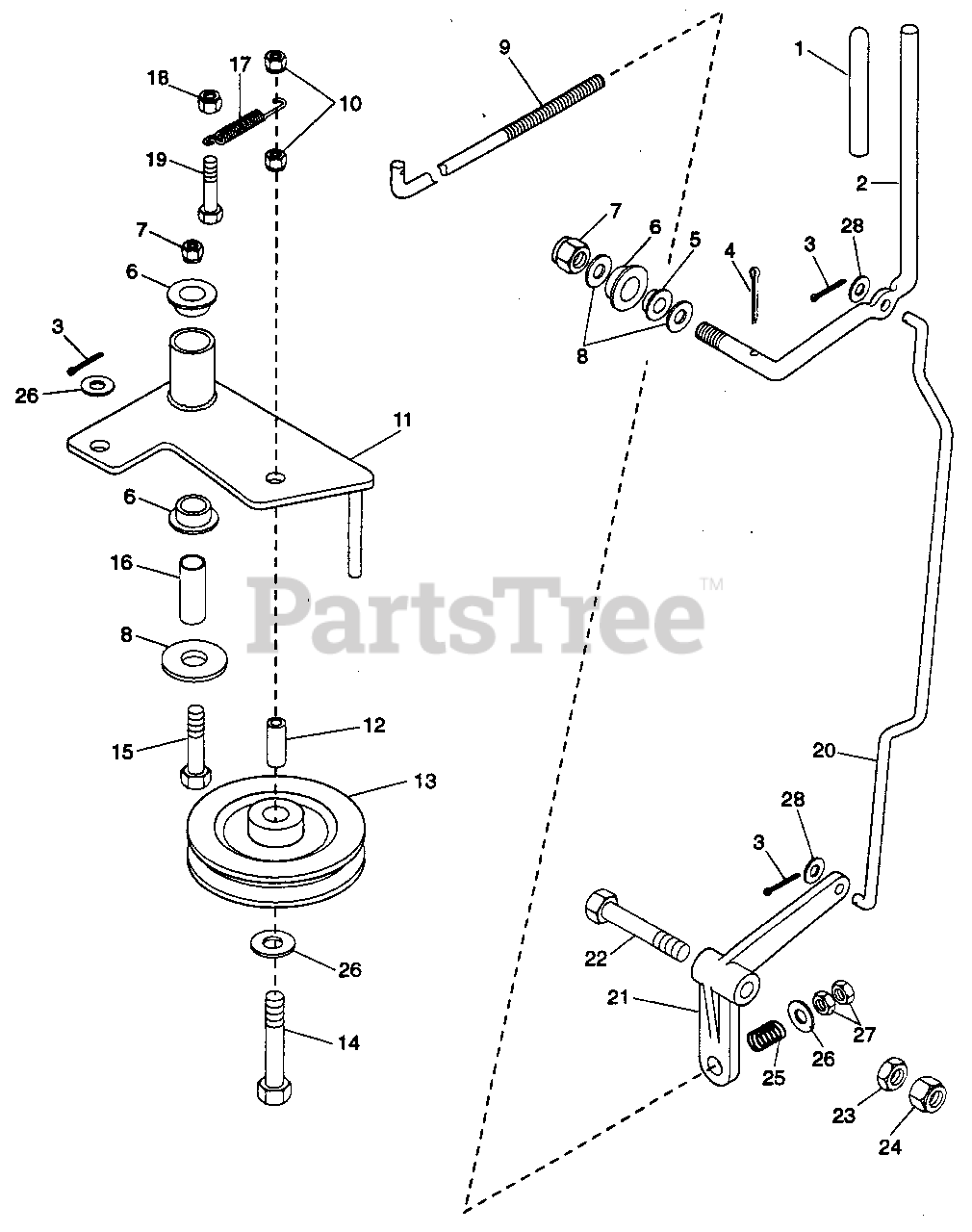

PTO CLUTCH LINKAGE Parts Diagram

  • Title

1

Gravely 043196

GRIP,PTO LEVER
(Superseded to 07528200)

$

$

Not available

2

Gravely 049291

LVR,PTO ACTUATING
(Superseded to 08878400)

$

$

Not available

3

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

4

Gravely 137253

PIN-COTR .188X1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

7

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

9

Gravely 088730

PTO LINK ROD, PRO-150
(Superseded to 08873000)

$40.99

$

Usually ships in 4-12 days

0

10

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 088723

DECLUTCH ARM - PRO PTO
(Superseded to 08872300)

$73.99

$

Usually ships in 4-12 days

0

12

Gravely 088741

SPACER .391 ID X .62 OD X 1.0
(Superseded to 08874100)

$

$

Not available

13

Gravely 052062

IDLER-PLY FLAT 3.25 X .38 X1.0
(Superseded to 07320700)

$35.99

$

In Stock, Qty 5

0

14

Gravely 059208

BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901810)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 059167

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

16

Gravely 088724

BUSHING FOR DECLUTCH ARM PIVOT
(Superseded to 08872400)

$

$

Not available

17

Gravely 083295

SG-TENS .095X.85X4.38 WLD25
(Superseded to 08329500)

$

$

Not available

18

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

19

Gravely 059134

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

20

Gravely 088733

PTO LEVER LINK ROD, PRO 150
(Superseded to 08873300)

$

$

Not available

21

Gravely 049271

LVR,PTO CLUTCH
(Superseded to 08834400)

$

$

Not available

22

Gravely 180185

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 1 left!

0

23

Gravely 120378

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

25

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

26

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 064123

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
