988060 - Gravely Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki (SN: 000101 & Above) STEERING CONTROL Parts Diagram

Pro 150 Walk-Behind Mower Power Unit, 12.5hp Kawasaki

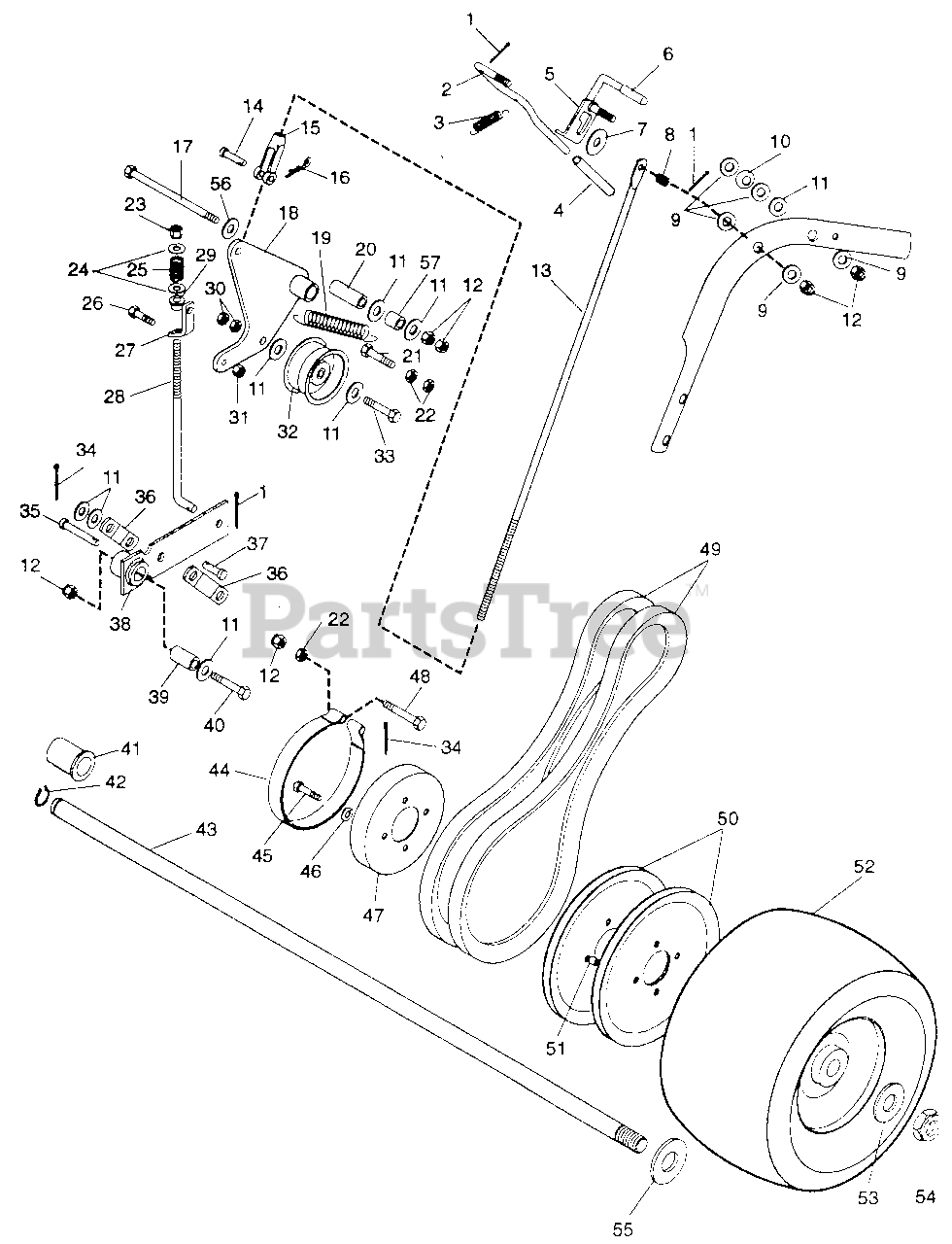

STEERING CONTROL Parts Diagram

  • Title

1

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

2

Gravely 052624

LEVER, HAND CONTROL LH
(Superseded to 04905200)

$81.99

$

In Stock, only 1 left!

0

3

Gravely 043446

SG-TENS .041X.500X1.750
(Superseded to 08339300)

$6.49

$

In Stock, Qty 5

0

4

Gravely 043197

GRIP,HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 042990

WLDMT,CLUTCH-BRAKE LOCK
(Superseded to 08820600)

$

$

Not available

6

Gravely 043192

TIP - BRAKE LOCK LEVER
(Superseded to 07503800)

$1.99

$

In Stock, only 2 left!

0

7

Gravely 446447

WSHR-FL-STL.438 X 1.375 X .083

$

$

Not available

8

Gravely 043193

SG-COMP .045X.600X.750 WLD7.5
(Superseded to 08338800)

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 020775

WSHR-FL-NY .375X.75X.060
(Superseded to 06433600)

$0.99

$

In Stock, only 4 left!

0

10

Gravely 029024

SPRING WASHER
(Superseded to 02902400)

$19.99

$

Usually ships in 4-12 days

0

11

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 049280

ROD,CLUTCH ACTUATING
(Superseded to 08878200)

$105.99

$

Usually ships in 4-12 days

0

14

Gravely 068092

PIN-CLEV .38X1.25 YWZC
(Superseded to 06814900)

$4.99

$

In Stock, only 2 left!

0

15

Gravely 018380

CLEVIS, .38-24 ADJ.
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 036185

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 059388

BLT-HEX .38-16X4.00 GR5 YWZC
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

18

Gravely 049019

WLDMT,WHL CLUTCH ARM
(Superseded to 08831200)

$

$

Not available

19

Gravely 034400

SG-TENS .069X.62X3.50 WLD20
(Superseded to 08332000)

$11.99

$

In Stock, only 2 left!

0

20

Gravely 049022

BUSH.,S.385X.610X1.80 ST
(Superseded to 08831500)

$6.49

$

In Stock, only 2 left!

0

21

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

22

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 065062

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

24

Gravely 064123

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

26

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

27

Gravely 088726

L-BKT, PRO BRAKE LINK
(Superseded to 08872600)

$

$

Not available

28

Gravely 049282

ROD,BRAKE
(Superseded to 08878300)

$

$

Not available

29

Gravely 045789

BSHG-FLG .320X.620X.312 NY
(Superseded to 05517500)

$18.99

$

Usually ships in 4-12 days

0

30

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

32

Gravely 048870

IDLER 2.75X1.25
(Superseded to 07318400)

$23.99

$

In Stock, only 3 left!

0

33

Gravely 059243

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

34

Gravely 177923

PIN-CTR .12X.75 EXTPRSQCT YWZ
(Superseded to 06707300)

$0.99

$

In Stock, Qty 6

0

35

Gravely 011718

PIN-CLEV .38X1.25 YWZC
(Superseded to 06814900)

$4.99

$

In Stock, only 2 left!

0

36

Gravely 049026

LINK,BRAKE ARM
(Superseded to 08831951)

$15.99

$

Usually ships in 4-12 days

0

37

Gravely 018417

PIN-CLEV .38X.75 YWZC
(Superseded to 06814800)

$3.99

$

In Stock, only 2 left!

0

38

Gravely 049023

WLDMT,BRAKE ARM
(Superseded to 08831600)

$76.99

$

Usually ships in 4-12 days

0

39

Gravely 049027

BUSH.,S.391X.622X.950 ST
(Superseded to 08833400)

$6.49

$

In Stock, Qty 5

0

40

Gravely 059147

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

41

Gravely 049969

BSHG-FLG 1.010X1.38X1.4X1.65
(Superseded to 05517900)

$6.49

$

In Stock, Qty 9

0

42

Gravely 017980

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 9

0

43

Gravely 088752

AXLE SHAFT, PRO-150
(Superseded to 08875200)

$127.99

$

Usually ships in 4-12 days

0

44

Gravely 088806

ASM, BRAKE BAND, PRO
(Superseded to 08880600)

$59.99

$

In Stock, Qty 7

0

45

Gravely 180083

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

46

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 049015

DRUM,BRAKE
(Superseded to 08863900)

$46.99

$

In Stock, only 1 left!

0

48

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

49

Gravely 072258

V-BELT, HA-COGGED (SET)
(Superseded to 07225800)

$96.99

$

Usually ships in 4-12 days

0

50

Gravely 049033

PLY-V 9.00X3.75
(Superseded to 07319700)

$58.99

$

Usually ships in 4-12 days

0

51

Gravely 048868

BUSH.,S.385X.625X.475 ST
(Superseded to 08809500)

$

$

Not available

52

Gravely 071373

ASSY, WHEEL AND TIRE 6X4.5
(Superseded to 07100239)

$162.99

$

In Stock, only 2 left!

0

53

Gravely 019340

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

54

Gravely 065203

NUT-LK-JAM-NYL .75-10 YWZC
(Superseded to 06537900)

$17.99

$

Usually ships in 4-12 days

0

55

Gravely 064265

WSHR-THRST 1.55X1.002X.093
(Superseded to 06426500)

$25.99

$

In Stock, only 2 left!

0

56

Gravely 064067

WSHR-FL-STL .390X.88X.18 YWZC
(Superseded to 06436800)

$3.99

$

Usually ships in 4-12 days

0

57

Gravely 043927

GR,8DP 29 TEETH X .750
(Superseded to 08947300)

$

$

Not available
