988063 - Gravely Pro 200 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton (SN: 000101 & Above) Electrical System - 16 H.P. And 18 H.P. Units (Electric Start) Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 16hp Briggs & Stratton

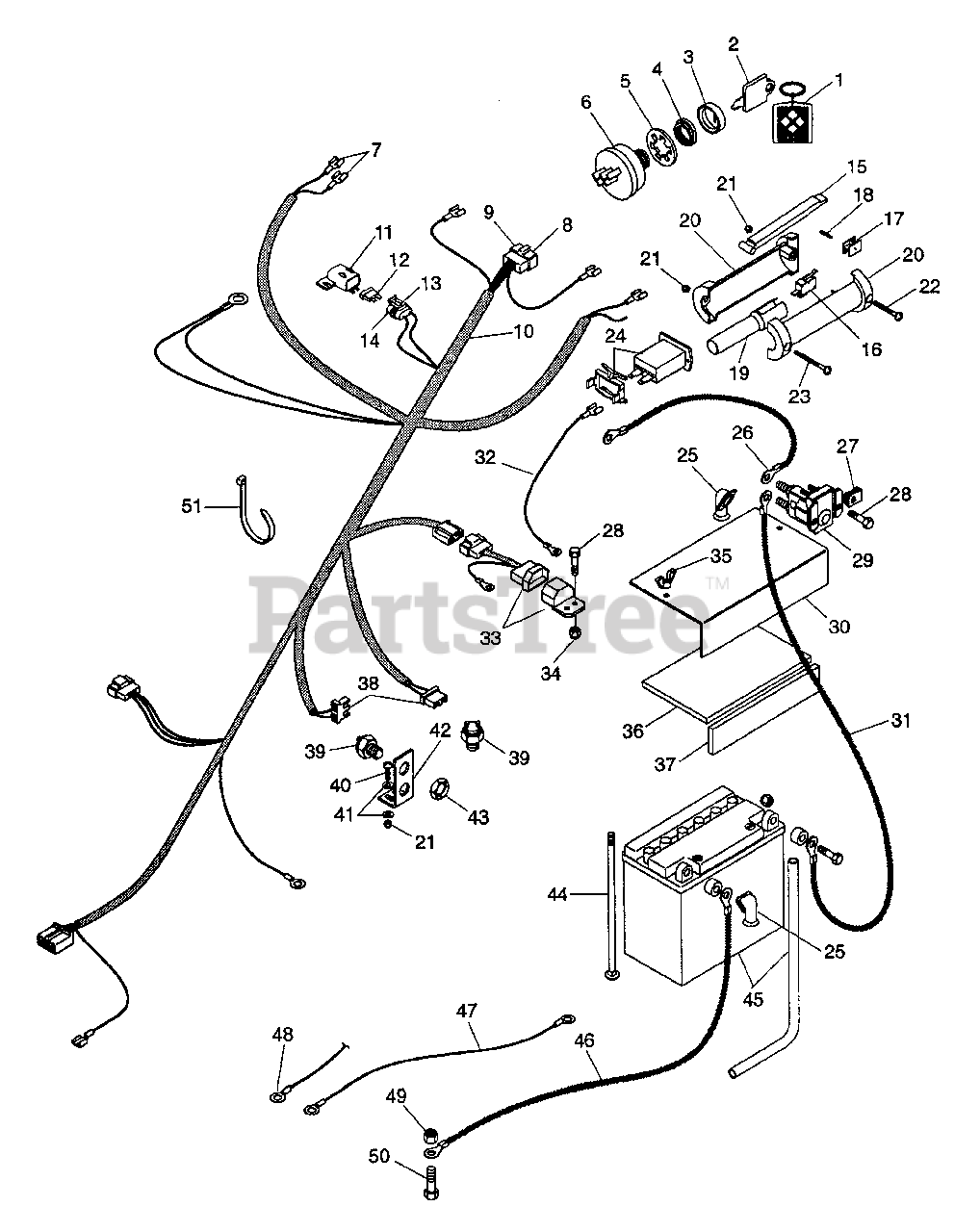

Electrical System - 16 H.P. And 18 H.P. Units (Electric Start) Parts Diagram

  • Title

1

Gravely 03490000

KEY CHAIN

$

$

Not available

2

Gravely 03489900

IGNITION SWITCH KEY
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

3

Gravely 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 12

0

4

Gravely 06517300

NUT-PANEL .625-32 GRECO

$9.49

$

Usually ships in 4-12 days

0

5

Gravely 06306400

WSHR-LOCK .625 INT TOOTH
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 08850800

SWITCH,IGNITION W/GROUND
(Superseded to 52709300)

Note: (Model 007)

$58.99

$

In Stock, only 2 left!

0

Gravely 08869000

SWITCH, IGNITION W/GROUND
(Superseded to 58801200)

Note: (Model 063)

$

$

Not available

7

Gravely 08828400

TERMINAL,FEMALE

$

$

Not available

8

Gravely 08540000

TERMINAL
(Superseded to 08540001)

$4.49

$

In Stock, Qty 5

0

9

Gravely 20645100

CONNECTOR
(Superseded to 20645101)

$8.49

$

In Stock, only 3 left!

0

10

Gravely 08857600

HRNS,WIRING 18 KOHLER

Note: (Model 007)

$

$

Not available

Gravely 08875600

WIRE HARNESS, PRO-200/16HP B/S
(Superseded to 58800600)

Note: (Model 063)

$

$

Not available

Gravely 08893700

WIRE HARNESS, PRO-200 CV18
(Superseded to 08893701)

Note: (Model 072)

$

$

Not available

11

Gravely 20822800

COVER

$

$

Not available

12

Gravely 08961800

FUSE,25 AMP

$3.99

$

In Stock, Qty 12

0

13

Gravely 20822900

TERM.,FOR 14-16 GA WIRE

$

$

Not available

14

Gravely 20822700

ASM,CONN WEATHER TIGHT

$

$

Not available

15

Gravely 08602200

LEVER

$46.99

$

Usually ships in 4-12 days

0

16

Gravely 08828300

SWITCH

$

$

Not available

17

Gravely 08855100

HOLDER, SWITCH

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 05808100

PIN-ROLL .094X.750

$0.99

$

In Stock, Qty 5

0

19

Gravely 08853100

INSERT, HANDLEBAR (PROS)

$

$

Not available

20

Gravely 08870200

HANDLE, L.H. & R.H.

$36.99

$

Usually ships in 4-12 days

0

21

Gravely 06506500

NUT-LK 10-24 NY PL
(Superseded to 06536000)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06111100

SCR-MCH 10-24X.62 P/HD

$1.49

$

In Stock, Qty 10

0

23

Gravely 06113200

SCR-MCH 10-24X1.50 PHDCR
(Superseded to 06118300)

$2.99

$

Usually ships in 4-12 days

0

24

Gravely 03492700

HOUR METER
(Superseded to 09497400)

$25.99

$

In Stock, Qty 17

0

25

Gravely 03384700

BOOT, INSULATOR

$

$

Not available

26

Gravely 08805700

CABLE,SLND TO STARTER

$

$

Not available

Gravely 03492500

CABLE, STARTER .31X23.00X.31

$25.99

$

Usually ships in 4-12 days

0

27

Gravely 07016800

NUT-SPEED .25-20

$

$

Not available

28

Gravely 05908200

BLT-HEX .25-20X.75 PL GR5
(Superseded to 05946800)

$1.49

$

In Stock, only 3 left!

0

29

Gravely 03492300

SOLENOID
(Superseded to 03551000)

Note: (Models 007, 063)

$43.99

$

In Stock, Qty 6

0

30

Gravely 08835800

CVR,BATTERY

$

$

Not available

31

Gravely 08816700

CABLE, BATTERY TO SLND

$

$

Not available

32

Gravely 08801600

WIRE,INSTRUMENT PANEL

$

$

Not available

33

Gravely 58801000

KIT,INTERLOCK MODULE, ELECTRIC

Note: (Model 007)

$

$

Not available

Gravely 08885400

ADAPTER HARNESS, INTERLOCK

Note: (Model 007)

$

$

Not available

Gravely 08885800

MODULE,INTERLOCK,ELEC, 1601

$73.99

$

Usually ships in 4-12 days

0

Gravely 58800800

KIT,INTERLOCK MODULE, ELEC

Note: (Model 063)

$

$

Not available

Gravely 08885300

ADAPT HARNESS, INTERLOCK, ELEC
(Superseded to 08885301)

Note: (Model 063)

$

$

Not available

Gravely 08885800

MODULE,INTERLOCK,ELEC, 1601

$73.99

$

Usually ships in 4-12 days

0

34

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$5.49

$

In Stock, Qty 12

0

35

Gravely 06506400

NUT-WING .250-20
(Superseded to 06537500)

$5.49

$

In Stock, Qty 20+

0

36

Gravely 08803400

PAD,BATTERY

$7.49

$

Usually ships in 4-12 days

0

37

Gravely 08800600

PAD,BATTERY

$

$

Not available

Connector, 2-Wire Switch

$

$

Not available

38

Gravely 08550000

CONN,2-WIRE SWITCH

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 08803700

SWITCH, NEUTRAL START N.C.

$35.99

$

Usually ships in 4-12 days

0

40

Gravely 06111200

SCR-MCH 10-24X.75 PHD

$2.99

$

Usually ships in 4-12 days

0

41

Gravely 06429800

WSHR-FL-STL .188X.438X.049
(Superseded to 06409200)

$

$

Not available

42

Gravely 08803600

BRKT,INTERLOCK SWITCH

$

$

Not available

43

Gravely 07015100

NUT-STAMPED .56-18

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 06218700

BLT-RDHDSQNK .25-20X7.00
(Superseded to 06220400)

$5.49

$

In Stock, Qty 20+

0

45

Gravely 78801800

BATTERY,12 VOLT

$

$

Not available

46

Gravely 08840400

CBL,NEGATIVE BATTERY 20.00

$18.99

$

Usually ships in 4-12 days

0

47

Gravely 08818400

WIRE,GROUND

$

$

Not available

48

Gravely 08805800

TERM,RING TONGUE

$

$

Not available

49

Gravely 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$1.49

$

In Stock, Qty 5

0

50

Gravely 05916900

BLT-HEX .31-18X2.25 PL GR5
(Superseded to 05963700)

$1.99

$

In Stock, Qty 12

0

51

Gravely 07519900

TIE WRAP, BLACK LG 7.31

$3.99

$

Usually ships in 4-12 days

0
